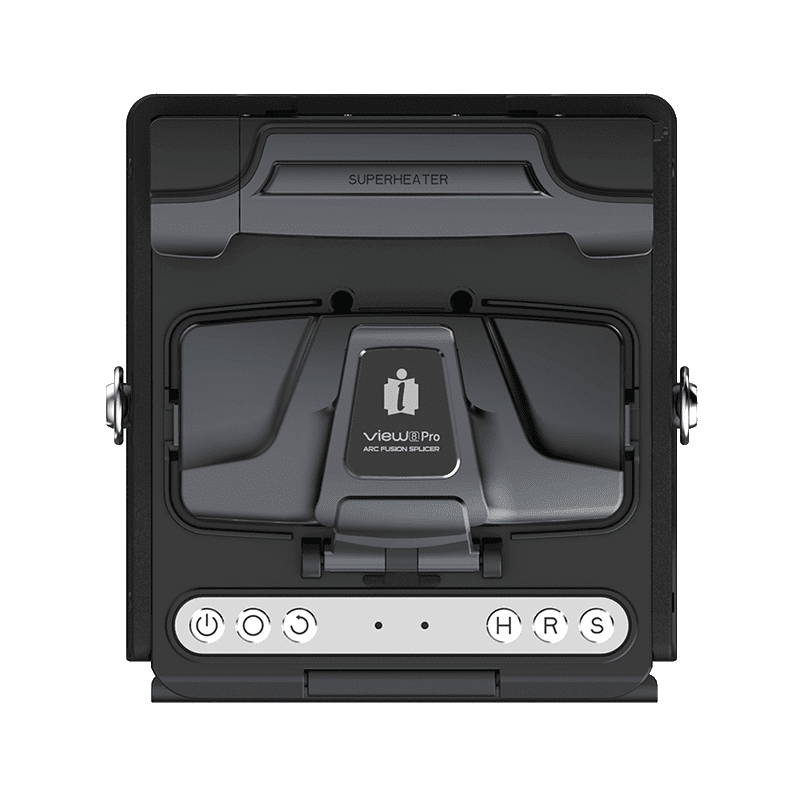

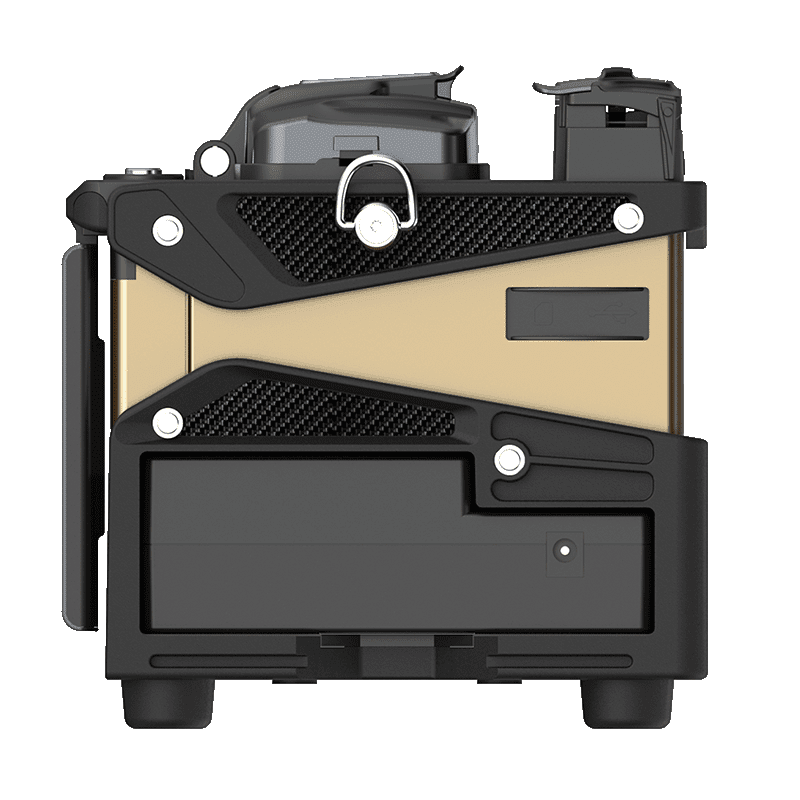

INNO VIEW 8 PRO CORE ALIGNMENT(DACAS) FUSION SPLICER KIT WITH CLOUD BASE
Available*
Item # 53960860
Model # VIEW 8 PRO KIT
$8,840.00
financing available. Learn MoreModel:
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Fusion Spl
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
INNO Instrument
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Inno View 8+ Fusion Splicer Kit with Cloud Base

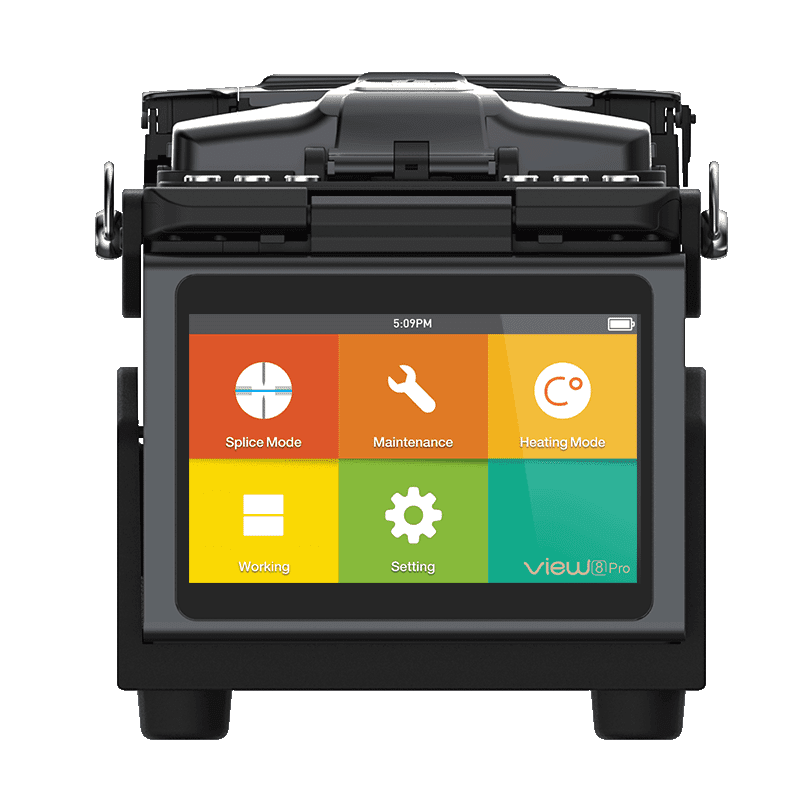

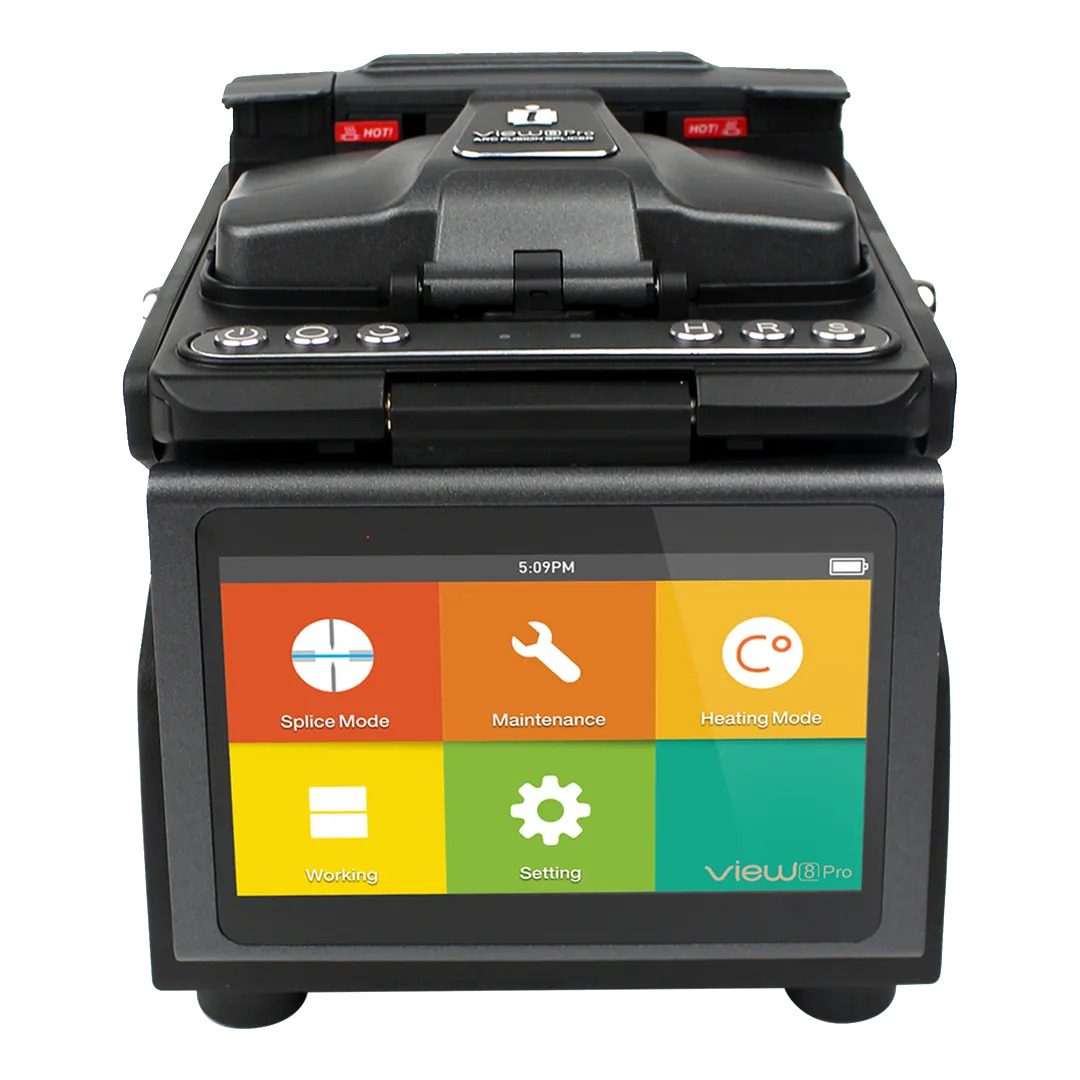

The new premium core-alignment fusion splicer View8+ is the most powerful and innovative product to satisfy the demanding professionals who always demand for the highest performances on the go. View8+ features world class splice time of 6 seconds and heating time of 9 seconds with large battery capacity allowing 355 cycles. Together with 5 inch wide HD LCD monitor and user-friendly intuitive GUI (Graphic User Interface), this premium splicer comes with a dedicated Wi-Fi App which enhances practicality to check the work progress simply from a smartphone.
Description
View8+, a core-alignment splicer with the world's highest specification, offers maximum work efficiency through the quick mode of 6s splice time and 9s heating time. In addition, INNO mobile application improves the operator to manage splicer and splice data.
Features
o Core Alignment Splicing Method with DACAS (Digital Analysis Core Alignment System) o The World's Highest Magnification and Resolution o Mobile APP connectivity with WIFI o 5" Color LCD Touch Screen o User-friendly smart GUI o Double Tap to Zoom in & out o Fast Heating Time o Ultra-high Capacity Battery o Detachable SOC Holder and Heating Oven o Ceramic Clamp for Improved Durability o Automatic Arc Compensation o Protective Cover o Harsh Weather Conditions Adaptability o 3-Year Extended Warranty
Specifications
Weight : 2.12kg without battery / 2.78kg with battery
Applicable Fibers : SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) Compatible Fiber/Cable : 0.25~3.0 mm / indoor cable (with FH-40) Fiber Count : Single
Fiber Holder : Replaceable (Universal: FH-40, SOC Holder: FH-SOC)
Fiber Diameter : Cladding: 80-150?m
Fiber Cleave Length : Diameter: 0.125~1 mm / Cleave Length: 8~16 mm Splice mode : Max 128 modes Typical Splice Loss : SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB (ITU-T Standard)
Return Loss : >>60dB
Lighting : 2 White LEDs Splicing Time : Quick mode : 6 sec Estimated Splice Loss : Available Attenuation Splicing : 0.1dB-20dB (0.1dB step)
Heat Oven/Heating Time : Heat Mode: Max 32 modes / typical heating time: Quick mode 9 sec
Applicable Protection Sleeve Length : 20mm, 30mm, 40mm, 50mm, 60mm
Results Storage : The last 10,000 splice records and result images Tension Test : 1.96~2.25N
Operating Condition : Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s Storage Condition : 0~95% relative humidity, -20~60°C, Battery: -20~ 30 °C
Size/ Color : 162H x 147W x 157D mm (including rubber bumper) / champagne gold
Display : 90° bi-directional view, 5.0" color high resolution (800 x 480) display
Fiber View & Magnification : X, Y, XY, X/Y : 320X Magnification
Power Supply : AC Input 100-240V, DC Input 9-14V
No. of splice/Heating with Battery : 9000mAh Battery Capacity, Typical 355 times (Splice+Heat)
Electrode Life : 5500 arcs, can be extended by using an electrode grinder Terminal : USB2.0 / MINI USB Operation Methods : Button / Touch screen Automatic Calibration : Automatic arc calibration by air pressure and temperature
Package
MODEL NO. QTY. MODEL NO. QTY.
FUSION SPLICER View 8+ 1 BATTERY PACK LBT-30 1 HIGH PRECISION CLEAVER V7+ 1 POWER CABLE ACC-25 1 FIBER HOLDER FH-40/ FH-SOC 1 AC ADAPTER JS-180300 1 SOC HEATER COVER HTS-SOC 1 Alcohol pump TK02-AP01 1 COOLING TRAY CG-22 1 Stripper TK02-MP01 1 ELECTRODE E-50 2 CIGARETTE LIGHTER CABLE CJ-11 1 ELECTRODE GRINDER EG-18 1 CARRYING CASE ICC-51 1
Description
View8+, a core-alignment splicer with the world's highest specification, offers maximum work efficiency through the quick mode of 6s splice time and 9s heating time. In addition, INNO mobile application improves the operator to manage splicer and splice data.
Features
o Core Alignment Splicing Method with DACAS (Digital Analysis Core Alignment System) o The World's Highest Magnification and Resolution o Mobile APP connectivity with WIFI o 5" Color LCD Touch Screen o User-friendly smart GUI o Double Tap to Zoom in & out o Fast Heating Time o Ultra-high Capacity Battery o Detachable SOC Holder and Heating Oven o Ceramic Clamp for Improved Durability o Automatic Arc Compensation o Protective Cover o Harsh Weather Conditions Adaptability o 3-Year Extended Warranty
Specifications
Weight : 2.12kg without battery / 2.78kg with battery
Applicable Fibers : SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) Compatible Fiber/Cable : 0.25~3.0 mm / indoor cable (with FH-40) Fiber Count : Single
Fiber Holder : Replaceable (Universal: FH-40, SOC Holder: FH-SOC)
Fiber Diameter : Cladding: 80-150?m
Fiber Cleave Length : Diameter: 0.125~1 mm / Cleave Length: 8~16 mm Splice mode : Max 128 modes Typical Splice Loss : SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB (ITU-T Standard)
Return Loss : >>60dB
Lighting : 2 White LEDs Splicing Time : Quick mode : 6 sec Estimated Splice Loss : Available Attenuation Splicing : 0.1dB-20dB (0.1dB step)
Heat Oven/Heating Time : Heat Mode: Max 32 modes / typical heating time: Quick mode 9 sec
Applicable Protection Sleeve Length : 20mm, 30mm, 40mm, 50mm, 60mm
Results Storage : The last 10,000 splice records and result images Tension Test : 1.96~2.25N
Operating Condition : Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s Storage Condition : 0~95% relative humidity, -20~60°C, Battery: -20~ 30 °C
Size/ Color : 162H x 147W x 157D mm (including rubber bumper) / champagne gold
Display : 90° bi-directional view, 5.0" color high resolution (800 x 480) display
Fiber View & Magnification : X, Y, XY, X/Y : 320X Magnification
Power Supply : AC Input 100-240V, DC Input 9-14V
No. of splice/Heating with Battery : 9000mAh Battery Capacity, Typical 355 times (Splice+Heat)
Electrode Life : 5500 arcs, can be extended by using an electrode grinder Terminal : USB2.0 / MINI USB Operation Methods : Button / Touch screen Automatic Calibration : Automatic arc calibration by air pressure and temperature
Package
MODEL NO. QTY. MODEL NO. QTY.
FUSION SPLICER View 8+ 1 BATTERY PACK LBT-30 1 HIGH PRECISION CLEAVER V7+ 1 POWER CABLE ACC-25 1 FIBER HOLDER FH-40/ FH-SOC 1 AC ADAPTER JS-180300 1 SOC HEATER COVER HTS-SOC 1 Alcohol pump TK02-AP01 1 COOLING TRAY CG-22 1 Stripper TK02-MP01 1 ELECTRODE E-50 2 CIGARETTE LIGHTER CABLE CJ-11 1 ELECTRODE GRINDER EG-18 1 CARRYING CASE ICC-51 1
