INNO M7 ACTIVE V GROOVE CLAD ALIGNMENT FUSION SPLICER KIT
Available*
Item # 53960650
Model # M7
$2,839.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Fusion Spl
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
INNO Instrument
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
INNO M7 ACTIVE V GROOVE CLAD ALIGNMENT FUSION SPLICER KIT NEW
INNO M7 ACTIVE V GROOVE CLAD ALIGNMENT FUSION SPLICER KIT NEW
ITEM # M7 INNO ACTIVE V GROOVE CLAD ALIGNMENT FUSION SPLICER KIT

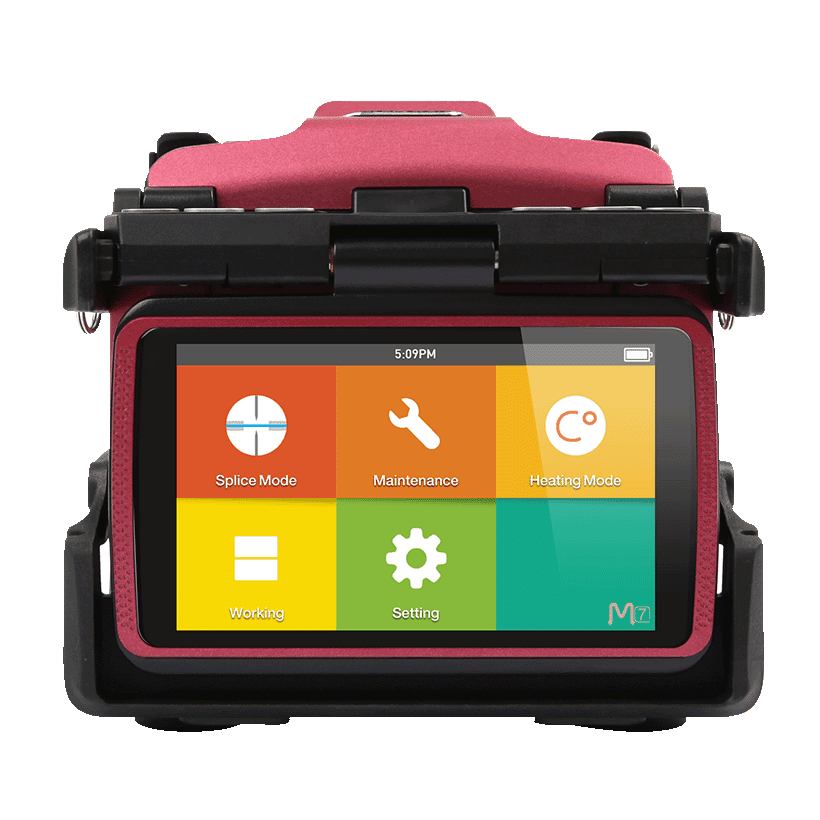

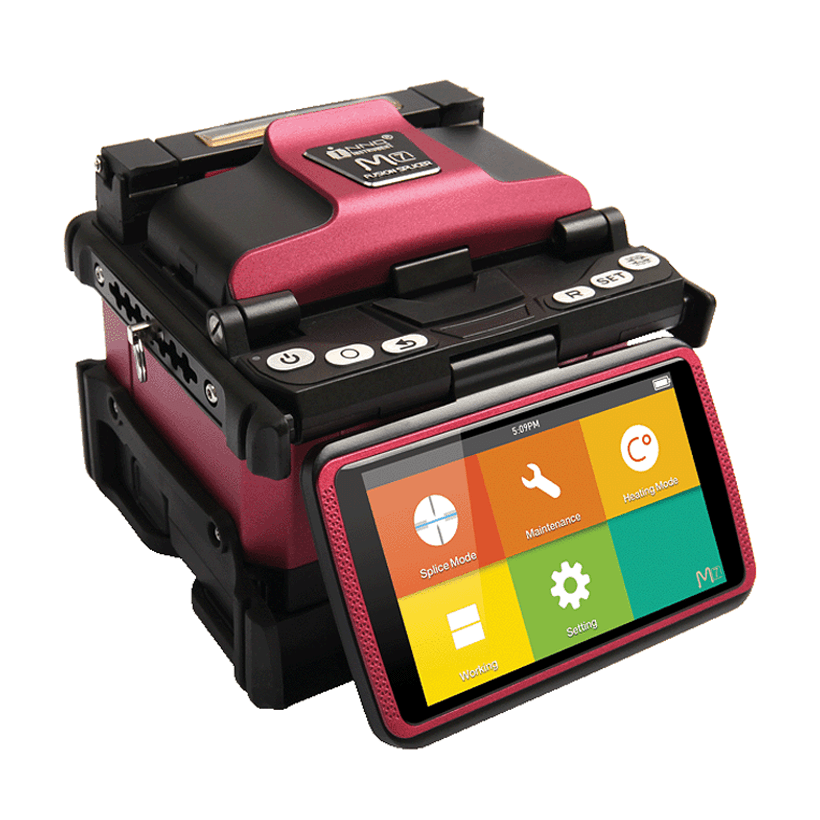

M7, an active clad-alignment splicer with ultra-portable design, is the most efficient fusion splicer in the market. This small but accurate fusion splicer inherits many remarkable functionalities from sister products. M7’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. Moreover, the adjustable strap hanger make users to customize M7 for their working condition
DOUBLE TAPPING By double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 400x. Fiber condition can be easily checked with unaided eyes.
SPECIFICATIONS Model Dimension Weight Number of Fiber Applicable Fibers Compatible Fiber / Cable Cleaved Length Cladding Diameter Splicing Mode Heating Mode Typical Splice Loss Return Loss Lighting Splicing Time Estimated Splice Loss Heating Sleeve Length Heating Time Results Storage Tention Test Operating Condition Storage Condition Display Fiber View & Magnification Power Supply No. of Splice / Heating with Battery Operating Methods Automatic Calibration Electrode Life Terminal Durability tests (No guarantee the product will not be damaged by these conditions.) M7 124H x 144W x 131D (including rubber bumper) 1.56kg (including battery) / 1.31kg (without battery) Single SM(ITU-T G.652&T G.657) / MM(ITU-T G.651) / DS(ITU- T G.653) / NZDS(ITU-T G.655) 0.25~3.0 mm / indoor Cable 10 - 16 mm 80 µm - 150 µm Max 100 modes, preset 9 modes Max 30 modes, preset 3 modes 0.03dB(SM) / 0.01dB(MM) / 0.05dB(DS) / 0.05dB(NZDS) / 0.03dB(G.657) Measured by cut-back method relevant to ITU-T standards. >> 60dB 2 White LEDs Quick mode: 7sec (Avg.) / Typical: 9 sec (Avg.) Available 20 mm - 60 mm 13 sec (45mm, slim 60mm), 15 sec (60mm) Last 10,000 records 1.96~2.25N Altitude 0~5000m above sea level, Humidity 0~95%RH, -10~50°C, Wind 15m/s 0~95% relative humidity, -40~80°C 90° bi-directional view, 4.3” Color High Resolution Display 300X magnification with 3 display modes, 400X partial magnification AC Input 100-240V, DC Input 9-14V Typical usage: 130 cycles / Power save usage: 200 cycles Button / Touch Screen Automatic arc calibration by air pressure and temperature 5500 arcs, can be extended by using an electrode grinder USB Type-C Shock resistance : Drop from 76cm Dust resistance : Test in the dust chamber for 8 hours (IP5X) Water resistance : Dripping water when tilted up to 15° (IPX2)
Weight and Dimensions Height 4.88 inches (124mm) Width 5.66 inches (144mm) Depth 5.15 inches (131mm) Weight 3.43 pounds (1.56kg including battery)
Package Includes: Fusion Splicer M7 High Precision Cleaver V7 Simple Optical Fiber Collector SC-V7-01 Fiber Holder FH-200 /250S, FH-900S SOC Heater Cover HTN-SOC AC Adapter JS-1618 Cooling Tray CG-22 Electrodes E-50 Battery Pack LBT-3000 Power Cable ACC-25 USB Cable CTA-01 Carrying Case NBX-M05
INNO M7 ACTIVE V GROOVE CLAD ALIGNMENT FUSION SPLICER KIT NEW
ITEM # M7 INNO ACTIVE V GROOVE CLAD ALIGNMENT FUSION SPLICER KIT
M7, an active clad-alignment splicer with ultra-portable design, is the most efficient fusion splicer in the market. This small but accurate fusion splicer inherits many remarkable functionalities from sister products. M7’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. Moreover, the adjustable strap hanger make users to customize M7 for their working condition
DOUBLE TAPPING By double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 400x. Fiber condition can be easily checked with unaided eyes.
SPECIFICATIONS Model Dimension Weight Number of Fiber Applicable Fibers Compatible Fiber / Cable Cleaved Length Cladding Diameter Splicing Mode Heating Mode Typical Splice Loss Return Loss Lighting Splicing Time Estimated Splice Loss Heating Sleeve Length Heating Time Results Storage Tention Test Operating Condition Storage Condition Display Fiber View & Magnification Power Supply No. of Splice / Heating with Battery Operating Methods Automatic Calibration Electrode Life Terminal Durability tests (No guarantee the product will not be damaged by these conditions.) M7 124H x 144W x 131D (including rubber bumper) 1.56kg (including battery) / 1.31kg (without battery) Single SM(ITU-T G.652&T G.657) / MM(ITU-T G.651) / DS(ITU- T G.653) / NZDS(ITU-T G.655) 0.25~3.0 mm / indoor Cable 10 - 16 mm 80 µm - 150 µm Max 100 modes, preset 9 modes Max 30 modes, preset 3 modes 0.03dB(SM) / 0.01dB(MM) / 0.05dB(DS) / 0.05dB(NZDS) / 0.03dB(G.657) Measured by cut-back method relevant to ITU-T standards. >> 60dB 2 White LEDs Quick mode: 7sec (Avg.) / Typical: 9 sec (Avg.) Available 20 mm - 60 mm 13 sec (45mm, slim 60mm), 15 sec (60mm) Last 10,000 records 1.96~2.25N Altitude 0~5000m above sea level, Humidity 0~95%RH, -10~50°C, Wind 15m/s 0~95% relative humidity, -40~80°C 90° bi-directional view, 4.3” Color High Resolution Display 300X magnification with 3 display modes, 400X partial magnification AC Input 100-240V, DC Input 9-14V Typical usage: 130 cycles / Power save usage: 200 cycles Button / Touch Screen Automatic arc calibration by air pressure and temperature 5500 arcs, can be extended by using an electrode grinder USB Type-C Shock resistance : Drop from 76cm Dust resistance : Test in the dust chamber for 8 hours (IP5X) Water resistance : Dripping water when tilted up to 15° (IPX2)
Weight and Dimensions Height 4.88 inches (124mm) Width 5.66 inches (144mm) Depth 5.15 inches (131mm) Weight 3.43 pounds (1.56kg including battery)
Package Includes: Fusion Splicer M7 High Precision Cleaver V7 Simple Optical Fiber Collector SC-V7-01 Fiber Holder FH-200 /250S, FH-900S SOC Heater Cover HTN-SOC AC Adapter JS-1618 Cooling Tray CG-22 Electrodes E-50 Battery Pack LBT-3000 Power Cable ACC-25 USB Cable CTA-01 Carrying Case NBX-M05
