SHI AY SWT-95EA CLAD ALIGNMENT FUSION SPLICER
Available*
Item # 53872490
Model # SWT-95EA
$2,940.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Fusion Spl
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
Shineway Tech
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

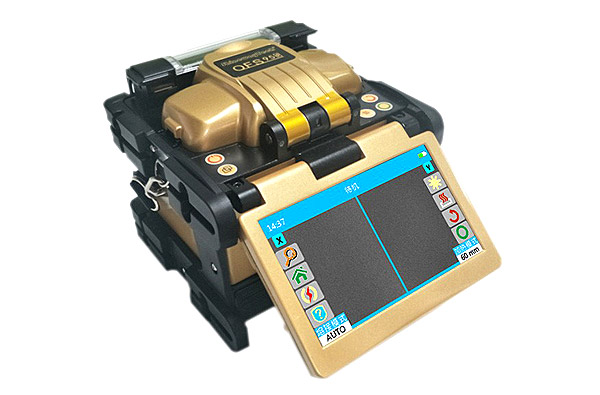

ShinewayTech® OFS-95EA optical fiber fusion splicer is designed with high-speed image processing technology and special precision-positioning technology. It will automatically finish the whole fiber fusion process in 9 seconds by fast mode, and splice loss is lower than 0.02dB for single mode fiber. 3.5-inch LCD, dual CMOS monitors, X and Y axis separately display or simultaneously display, thus different fusion stages can be showed clearly. It is compatible with ITU-T SM/MM/DS/NZDS/ED fiber, and is equipped with 4-in-1 holders and SOC adapter.
OFS-95EA has small volume, light weight, AC/DC power supply and 200+ splicing and heating cycles, so it is particularly suited to telecommunications, radio and television, railway, electric power, military, research institutes for optical fiber communication construction and maintenance. OFS-95EA is ideal for FTTH installation and maintenance.
Hardware Structure Design Feature
Compact and convenient:1.5kg with battery
Four motors, special precision-positioning technology
Splice Loss: SMF/BIF: =0.02dB(typ.); MMF: =0.01dB(typ.); DSF/NZDSF/EDF: =0.04dB(typ.)
High precision 4-in-1 holder (250µm/900µm/patchcord/FTTx indoor fiber etc),SOC holder
Battery and the host separation design, convenient maintenance and replacement of the battery
Double V-groove design
High strength portable straps design is convenient for hanging and operating
Inner light make the operation environment in the dark
Wind, sand and dust prevention, waterproof, aseismatic design adapt to the outdoor environment
Screen flip-over feature
76cm drop proof / ISTA certificate
Optional GPS function
Software Design Feature
Auto checks fiber end-face, calibrate position of splicing, calculate splicing loss and temperature and pressure compensation and so on
Between X/Y single screen and X&Y easily switch
Auto splice, auto arc optimization, auto heating
=9s splicing time, =36s heating time (adjustable)
3 hours fast battery recharge
Ready-package battery with electric quantityindicator, convenient carrying and change
Built-in counter to warn replace electrode
OFS-95EA has small volume, light weight, AC/DC power supply and 200+ splicing and heating cycles, so it is particularly suited to telecommunications, radio and television, railway, electric power, military, research institutes for optical fiber communication construction and maintenance. OFS-95EA is ideal for FTTH installation and maintenance.
Hardware Structure Design Feature
Compact and convenient:1.5kg with battery
Four motors, special precision-positioning technology
Splice Loss: SMF/BIF: =0.02dB(typ.); MMF: =0.01dB(typ.); DSF/NZDSF/EDF: =0.04dB(typ.)
High precision 4-in-1 holder (250µm/900µm/patchcord/FTTx indoor fiber etc),SOC holder
Battery and the host separation design, convenient maintenance and replacement of the battery
Double V-groove design
High strength portable straps design is convenient for hanging and operating
Inner light make the operation environment in the dark
Wind, sand and dust prevention, waterproof, aseismatic design adapt to the outdoor environment
Screen flip-over feature
76cm drop proof / ISTA certificate
Optional GPS function
Software Design Feature
Auto checks fiber end-face, calibrate position of splicing, calculate splicing loss and temperature and pressure compensation and so on
Between X/Y single screen and X&Y easily switch
Auto splice, auto arc optimization, auto heating
=9s splicing time, =36s heating time (adjustable)
3 hours fast battery recharge
Ready-package battery with electric quantityindicator, convenient carrying and change
Built-in counter to warn replace electrode
