SB EASYSPLICER MK2 FUSION SPLICER
Available*
Item # 53868500
Model # EASYSPLICER MK2
$2,963.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Fusion Spl
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
EasySplicer SB
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

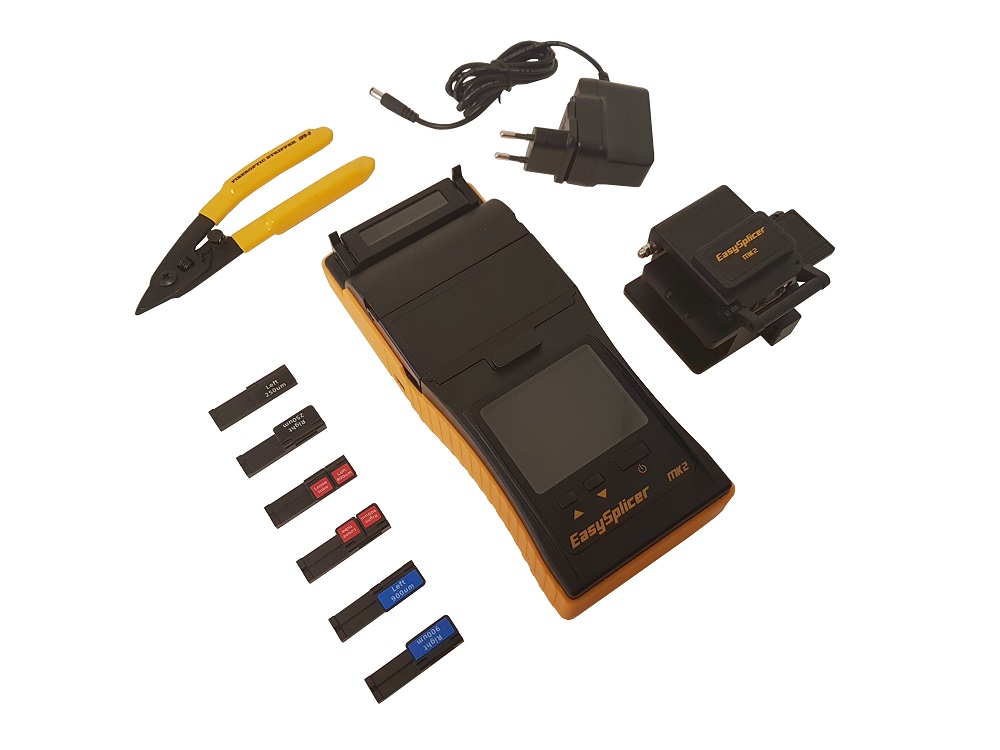

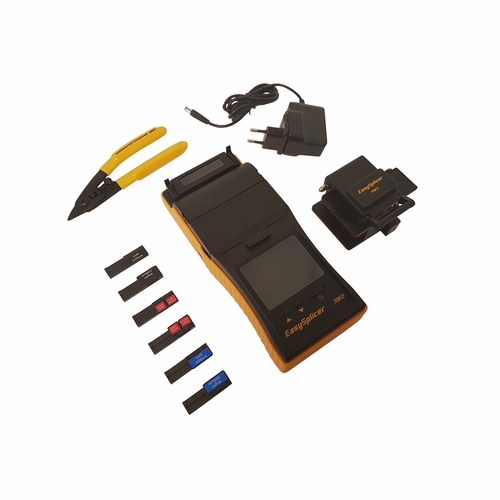

SB EASYSPLICER MK2 FUSION SPLICER NEW
EasySplicer is a Fusion Splicer made in Sweden, designed for working daily with fiber optic installations. It´s small and handy to bring along. The construction is made very rugged and even if splicing should take place under good conditions (indoors) it is still designed to be used out in the field. EasySplicer is truly a grand innovation made for building Fiber optic Networks. It will revolutionize the way these networks are built by its ease of use and it will cut the costs for the customers which will generate more work for the installers!
Technical specification Splicing method: V-groove (cladding alignment) Fiber Types: SMF,MMF 50/125 and 62.5/125 um fiber, 250 um primary and 900 um secondary coated fiber. Fiber Handling: Fiber holders, 3 pairs (250, 900 and Loose tube) Splice Programs: 3 pre-defined. SMF, MMF & OM1 Typical splice Loss: 0.03dB SMF, 0.01dB MMF Typical Cycle time: 7s + 35s (splice cycle+ oven cycle) Sleeve Dimensions: Max 64mm length, 2-7mm diameter supported by oven. Communication: USB, mini usb plug. Memory: External SD-Card, Max 32GB (FAT-32). Monitor: LCD, color, 2,8?, 320×240 pixels Magnification: Camera 140x Operating Environment: 0-45°C, max 95% RH non-condensing. Weight: 800g Power Sources: External power supply, 6V, 1.5A, 100-240VAC 50-60Hz, Li-Ion battery Splicing Capacity: 60 splicing cycles Additional features: Loss estimation, Fault detection of fiber, SD-card for logging etc.
EasySplicer is a Fusion Splicer made in Sweden, designed for working daily with fiber optic installations. It´s small and handy to bring along. The construction is made very rugged and even if splicing should take place under good conditions (indoors) it is still designed to be used out in the field. EasySplicer is truly a grand innovation made for building Fiber optic Networks. It will revolutionize the way these networks are built by its ease of use and it will cut the costs for the customers which will generate more work for the installers!
Technical specification Splicing method: V-groove (cladding alignment) Fiber Types: SMF,MMF 50/125 and 62.5/125 um fiber, 250 um primary and 900 um secondary coated fiber. Fiber Handling: Fiber holders, 3 pairs (250, 900 and Loose tube) Splice Programs: 3 pre-defined. SMF, MMF & OM1 Typical splice Loss: 0.03dB SMF, 0.01dB MMF Typical Cycle time: 7s + 35s (splice cycle+ oven cycle) Sleeve Dimensions: Max 64mm length, 2-7mm diameter supported by oven. Communication: USB, mini usb plug. Memory: External SD-Card, Max 32GB (FAT-32). Monitor: LCD, color, 2,8?, 320×240 pixels Magnification: Camera 140x Operating Environment: 0-45°C, max 95% RH non-condensing. Weight: 800g Power Sources: External power supply, 6V, 1.5A, 100-240VAC 50-60Hz, Li-Ion battery Splicing Capacity: 60 splicing cycles Additional features: Loss estimation, Fault detection of fiber, SD-card for logging etc.
