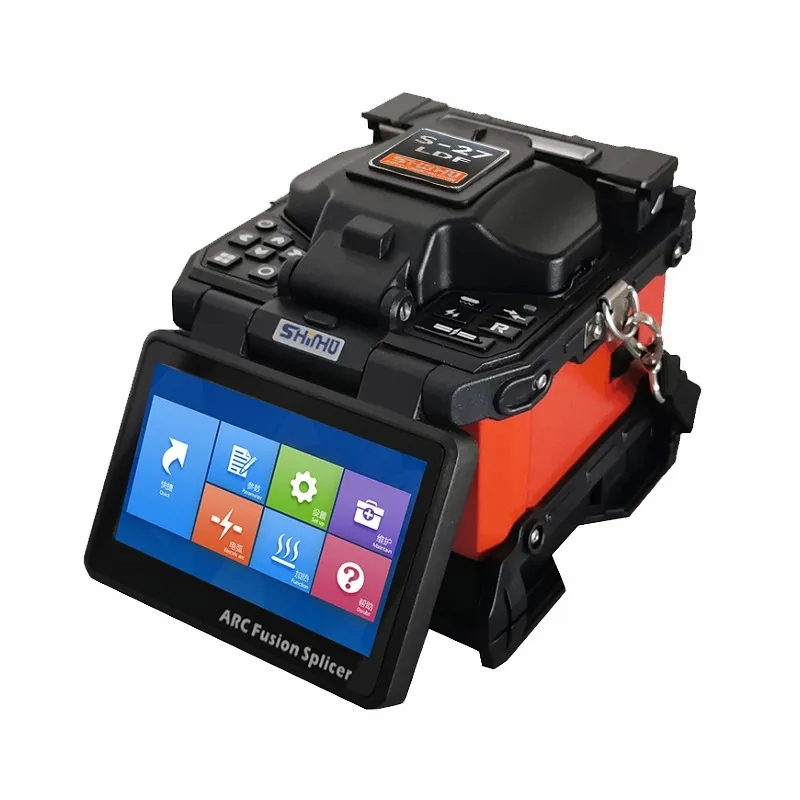

SHINHO S27-400 LDF fusion splicer (250~um)
Available*
Item # 53760060
Model # S27-400
$14,400.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Fusion Spl
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
Shinho America Inc
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
SHINHO S27-400 LDF fusion splicer (250~0um)
250~440um LDF (Large Diameter Fiber) Fusion Splicer S27-400 LDF (Large Diameter Fiber) splicing capability Accurate alignment, world standard fusion loss Ruggedized body, waterproof, anti-dust, anti-shock
Large Diameter Fiber (LDF) Specialty Fiber Fusion Splicer S 27
S27-440 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~400um) with S-27 Specialty Fiber Fusion Splicer.
Features
Applicable to cladding diameter 125~400µm fiber
Accurate alignment, world standard fusion loss
14s splicing time, 24s heating time for 40/60mm tube
Applicable to different types fibers (SM/MM/DS/NZDS)
Ruggedized body, waterproof, anti-dust, anti-shock
Easy to maintenance, easy to replace the electrodes
USB port for software upgrading, records exporting
Support 4000/100 groups fusion records/fusion images
Comply with CE/Rohs international standard
Specifications
Alignment method Clad to clad Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) Cladding diameter 250~440µm Coating diameter 250~1000µm Typical splice loss SM: 0.02dB; MM: 0.01dB; DS: 0.04dB; NZDS: 0.04dB Return loss >60dB Splicing program 40 groups Operation mode Manual/ Automatic Auto- heating Available Typical splice time 14seconds Typical heating time 24 seconds for60mm/40mm heating tube Fiber magnification X orY single fiber image120X,X andY double image 60X Viewing display Dualhighsensitivitycamera,5 inch 800*480 LCD Monitor Data storage 4000 groups data records and 100 group images Loss evaluation Available Tension test 1.8~2.2N Interface GUI menu interface, easy for operation Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V Electrode life >3000 times discharge (125um),>1000 times discharge (>125um) Terminals Micro-USB 2.0 port, forsoftwareupgrading, records exporting Operating condition Altitude:0-5000m,Humidity:0-95%,Temperature:-10?~+50?;Wind:max 15m/s Dimension 155mm (L)×144mm (W)×155mm (H) Weight 2.3kg (incuding battery)
