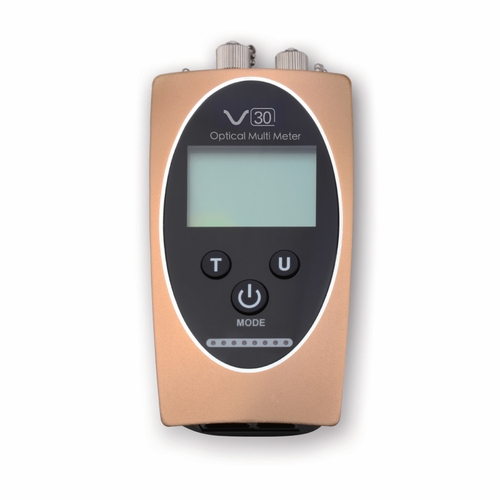

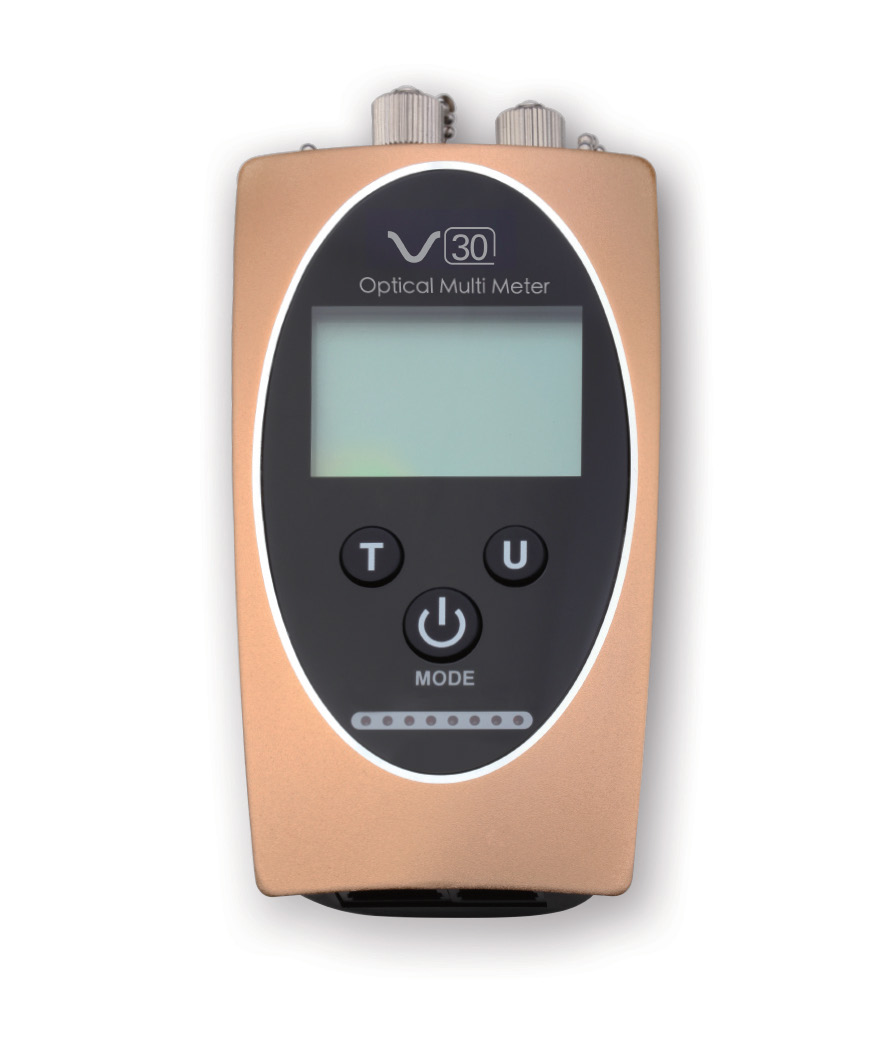

INNO V30 OPTICAL MULTI METER (POWER METER) WITH VFL, +6 TO -70dbM, ST/SC/FC UNIVERSAL CONNECTORS
Available*
Item # 53538700
Model # V30
$300.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Power Mete
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Power Meter
INNO Instrument
Fiber Optic Power Meter
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
INNO V30 OPTICAL MULTI METER (POWER METER) WITH VFL, +6 TO -70dbM, ST/SC/FC UNIVERSAL CONNECTORS
Description V30, network optical Power tester, is easy to operate with multiple functions of VFL, OPM and fiber end face inspection. It is designed for using in such fields as constructing, maintaining optical cable, fiber optic communication and optical fiber sensor.
Portable Optical Multi-Meter 200W Rated Power Compact, Portable and Powerful Network Cable / Phone Line Test 1.58 x 2.12 x 1.07 inches
Optical Power Meter (OPM) Sensor Type InGaAs Fiber Port Type 2.5mm of ST/SC/FC universal connectors Calibrated Wavelengths 850 / 1300 / 1310 / 1490 / 1550 / 1625nm Measuring Range from +6 to -70dBm Accuracy ±0.02dB Display Units dBm, mW, uW
Visual Fault Locator (VFL) Output Power 1mW Fiber Port Type 5Km single mode fiber(SMF) Laser Safety Level Class 2 Wavelength 650nm ± 20nm Output Mode Continuous / 2Hz flicker lasers
Cable/Telephone Line Test Port Type RJ45/RJ11 Applicable cable/Telephone line UTP CAT-5 / CAT-5e (2/4/6 core phone lines) Maximum measuring range 1Km
Description V30, network optical Power tester, is easy to operate with multiple functions of VFL, OPM and fiber end face inspection. It is designed for using in such fields as constructing, maintaining optical cable, fiber optic communication and optical fiber sensor.
Portable Optical Multi-Meter 200W Rated Power Compact, Portable and Powerful Network Cable / Phone Line Test 1.58 x 2.12 x 1.07 inches
Optical Power Meter (OPM) Sensor Type InGaAs Fiber Port Type 2.5mm of ST/SC/FC universal connectors Calibrated Wavelengths 850 / 1300 / 1310 / 1490 / 1550 / 1625nm Measuring Range from +6 to -70dBm Accuracy ±0.02dB Display Units dBm, mW, uW
Visual Fault Locator (VFL) Output Power 1mW Fiber Port Type 5Km single mode fiber(SMF) Laser Safety Level Class 2 Wavelength 650nm ± 20nm Output Mode Continuous / 2Hz flicker lasers
Cable/Telephone Line Test Port Type RJ45/RJ11 Applicable cable/Telephone line UTP CAT-5 / CAT-5e (2/4/6 core phone lines) Maximum measuring range 1Km
