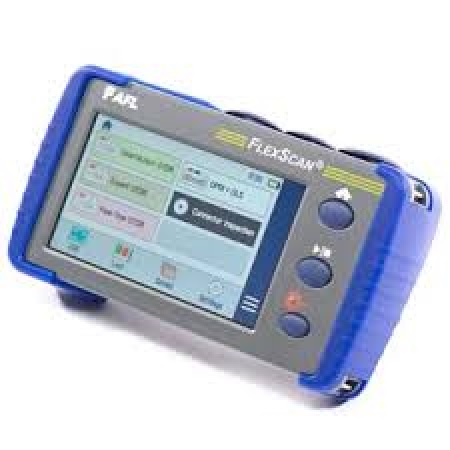

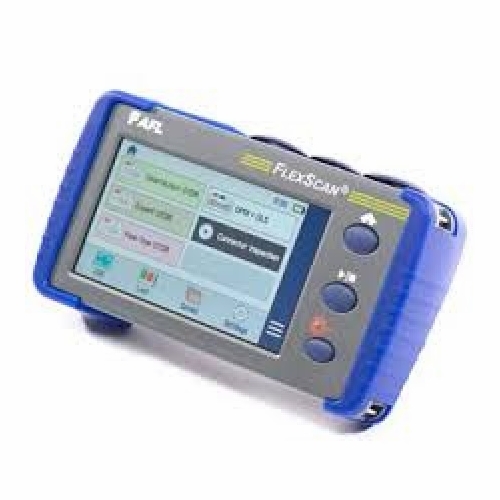

FS200-304 FLEXSCAN OTDR BASIC KIT 1310/1550/1625 PON OTDR W/ VFL, OLS, OPM, BT/WIFI, APC CONNECTOR,

FS200- FLEXSCAN OTDR BASIC KIT 1310/1550/1625 PON OTDR W/ VFL, OLS, OPM, BT/WIFI, APC CONNECTOR,

FS200-304 FLEXSCAN OTDR BASIC KIT 1310/1550/1625 PON OTDR W/ VFL, OLS, OPM, BT/WIFI, APC CONNECTOR,

FS200-304-BAS-P1-W1-A-ENG-US FlexScan, FS200-304 Basic Kit, 1310/1550/ 1650 PON OTDR w/VFL, OLS/OPM, BT/WiFi, APC connector, soft case, English, USA

FlexScan® OTDR with SmartAuto®, FleXpress™ and LinkMap® Performance-packed: With SmartAuto multi-pulse acquisition, up to 37 dB dynamic range and best-in-class 25 m PON dead zone, FlexScan PON OTDRs test FTTH PONs up to 1:64 while still detecting and measuring events only meters apart. Fast! FleXpress mode completes dual-wavelength tests in <5 seconds – 10 x faster than conventional OTDRs! For multi-fiber testing, FleXpress mode automatically controls 12-fiber MPO Switch to further reduce multi-fiber test time. User-friendly: FlexScan OTDRs enable both novice and expert technicians to quickly, reliably and accurately detect, locate, identify and measure optical network components and faults. After applying industry-standard or user-set pass/fail criteria, the network is displayed using FlexScan’s intuitive, icon-based LinkMap view. Acquired results may be stored internally or externally. FlexScan automates test setup, shortens test time and simplifies results interpretation, improving efficiency and reducing the cost of test. Pocket-sized: At 3.5 x 6 x 1.75 in. (86 x 160 x 43 mm) and less than one pound (0.4 kg), FlexScan OTDRs truly fit in your pocket, yet still provide a large, bright indoor/outdoor touchscreen display and all-day operation. And Affordable: With optional connector inspection, integrated source, power meter and VFL, FlexScan offers an all-in one solution, ensuring technicians have everything they need to locate and resolve optical network issues. Uploaded results may be viewed and reports may be generated using the included Windows-compatible TRM® 2.0 Test Results Manager software. Available in Convenient, Cost-saving Installation and Troubleshooting Kits - Bundle FlexScan with your choice of launch cable, FOCIS Flex connector inspection probe and tips, and/or AFL’s universal optical fiber identifier (OFI). Features Fast, accurate OTDR network characterization or fault location FleXpress mode completes OTDR test in <5 seconds Integrated MPO Switch control via USB Test up to 1:64 PON with 25 m PON dead zone Easy to understand LinkMap results with pass/fail indications Single, dual or triple wavelength single-mode Integrated Source, Power Meter, VFL (visual fault locator) Bluetooth and WiFi communications Compatible with FOCIS Flex connector inspection system Rugged, lightweight, hand-held for field use Large, bright touchscreen display easily viewed indoors and out Internal / external data storage Applications PON or point-to-point network verification or troubleshooting OTDR testing plus Insertion Loss and Power measurements Locate faults exceeding industry or user pass/fail thresholds Visually pinpoint location of macro-bends or breaks Pocket-sized, Performance-packed, User-friendly, and Affordable

FlexScan® OTDR with SmartAuto®, FleXpress™ and LinkMap® SmartAuto FleXpress Dramatically Cuts Test Time In SmartAuto mode, a FlexScan OTDR automatically determines the characteristics of the network under test and rapidly completes multiple scans using a variety of network-optimized acquisition settings. It precisely locates and identifies network events, as well as measures loss and reflectance for each detected event. For even greater ease-of-use, FlexScan checks for live fiber and verifies the OTDR launch connection before initiating a test. Dual and triple-wavelength FlexScan OTDRs also provide automatic macro-bend detection. FlexScan’s new FleXpress mode completes dual wavelength tests in seconds, reducing test time by a factor of 10x compared to conventional OTDRs. For multifiber testing, FleXpress mode automatically controls AFL’s MPO Switch, testing 12 fibers at the touch of a single button. LinkMap Simplifies Network Troubleshooting LinkMap with Pass/Fail enables even novice users to easily and accurately troubleshoot optical networks. LinkMap presents an icon-based view of the tested network clearly identifying fiber start, end, connectors, splices, PON splitters, and macro-bends. A LinkMap Summary provides end-to-end link length, loss, loss per distance and ORL. Loss and reflectance of detected events is compared to industry-standard or user-settable pass/fail thresholds and displayed with clear pass/fail indications. Users can instantly toggle between LinkMap and Trace views. Bluetooth and WiFi for Faster Connectivity Pair FlexScan with AFL’s FOCIS Flex connector inspection probe for fast, easy connector end-face inspection. FOCIS Flex provides auto-focus, auto-centering, integrated IEC pass/fail analysis, and automatic Bluetooth transfer of images and pass/fail results to FlexScan for display and archiving. Complete Testing with a Single Tool FlexScan integrates a Visual Fault Locator (VFL) plus an optional optical laser source (OLS) and optical power meter (OPM) supporting AFL’s unique Wave ID capability. With Wave ID, the power meter automatically synchronizes to a single or multiwavelength Wave ID optical signal sent by an AFL light source. The power meter automatically identifies received wavelengths and measures power and loss at each wavelength, saving significant test time and eliminating setup errors. The VFL’s eye-safe red laser enables users to visually pinpoint the location of macrobends and fiber breaks often found in splice closures and fiber cabinets.
