OWL WTO2 OWLTrek 1310/1550nm Singlemode OTDR
Available*
Item # 53419900
Model # WTO-S35
$3,092.51
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Otdr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
OWL Optical Wavelength Laboratories
Fiber OTDR Singlemode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
OWL OPTICAL WAVELENGTH LABORATORIES WTO-S35 OWLTrek 1310/1550nm Singlemode OTDR NEW

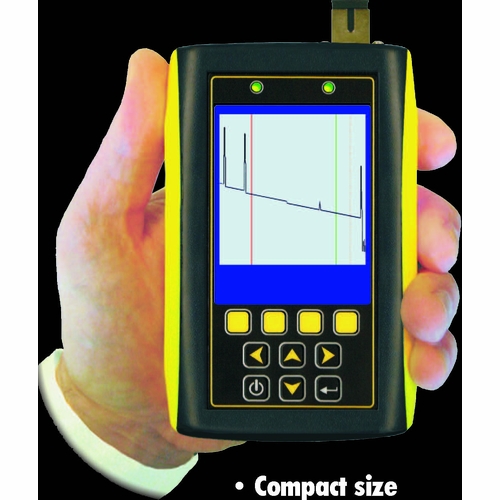

With an unbeatable combination of a small pocket-sized form factor, a large high-resolution 2.8" color LCD display, and some of the lowest pricing in the industry, the OWLTrek OTDR from OWL OPTICAL WAVELENGTH LABORATORIES is the WISE choice for cost-conscious buyers who only need to perform basic troubleshooting or restoration tasks on singlemode optical fiber networks. All this from an OTDR that really is pocket-sized and fair priced, yet having comparable features and specifications to other OTDRs in its class.
AFFORDABILITY: In a time when it is becoming increasingly difficult to justify equipping an entire technical staff with high-end equipment, companies are even more cost-conscious than before. Outfit a majority of the installation/repair trucks with OWLTrek OTDRs, and set aside a few high-end "expert" vehicles for high-priority roll-outs.
USABILITY: The OWLTrek OTDR may be pocket-sized, but the large 2.8" high-resolution color LCD display can show even the longest traces with ease. And, for greater viewing flexibility and trace detail, OWL OPTICAL WAVELENGTH LABORATORIES has implemented state-of-the-art MEMS technology which "flips" the high-resolution color LCD display between portrait and landscape mode automatically. In landscape mode, a wider viewing area means greater viewing detail.
AUTOMATIC EVENT LOCATION: Automatic event location is an advanced feature normally found only in expensive, high-end OTDRs. The OWLTrek OTDR now brings this feature to the entry-level OTDR market. While in event location mode, the OWLTrek OTDR marks events on the trace, has an event table showing the location, type, reflectance level, and loss of each event, and auto-zooms to the selected event.
DYNAMIC RANGE VS. DISTANCE: OWLTrek singlemode OTDRs are capable of finding breaks in singlemode optical fibers up to 80 miles to within +/- 6 feet. Additional splices and other loss producing events will limit end distance estimates. This is true for all OTDRs. However, passive singlemode Telco links are almost always less than 12 miles long. At this distance, OWLTrek OTDRs have break finding capability of about +/- 1 meter! In fact, increased dynamic range is actually a disadvantage in almost all cases because of the increased OTDR cost (usually
Applications Features 2.8” color LCD display automatically rotates based on orientation of OTDR (portrait vs. landscape) Live Mode allows users to expand OTDR display onto larger laptop screen Automatically locates events and places them in an internal event table Full horizontal and vertical pan/zoom function User-selectable parameters such as index of refraction, test mode, pulse width, and averaging Integrated user help screens SC/UPC connector port USB interface for downloading stored readings Integrated visual fault locator Re-chargeable Lithium Polymer battery allows for up to 20 hours of normal usage FREE OWLView for OTDR software prints OTDR trace reports and stored OTDR readings on hard disk for later retrieval
With an unbeatable combination of a small pocket-sized form factor, a large high-resolution 2.8" color LCD display, and some of the lowest pricing in the industry, the OWLTrek OTDR from OWL OPTICAL WAVELENGTH LABORATORIES is the WISE choice for cost-conscious buyers who only need to perform basic troubleshooting or restoration tasks on singlemode optical fiber networks. All this from an OTDR that really is pocket-sized and fair priced, yet having comparable features and specifications to other OTDRs in its class.
AFFORDABILITY: In a time when it is becoming increasingly difficult to justify equipping an entire technical staff with high-end equipment, companies are even more cost-conscious than before. Outfit a majority of the installation/repair trucks with OWLTrek OTDRs, and set aside a few high-end "expert" vehicles for high-priority roll-outs.
USABILITY: The OWLTrek OTDR may be pocket-sized, but the large 2.8" high-resolution color LCD display can show even the longest traces with ease. And, for greater viewing flexibility and trace detail, OWL OPTICAL WAVELENGTH LABORATORIES has implemented state-of-the-art MEMS technology which "flips" the high-resolution color LCD display between portrait and landscape mode automatically. In landscape mode, a wider viewing area means greater viewing detail.
AUTOMATIC EVENT LOCATION: Automatic event location is an advanced feature normally found only in expensive, high-end OTDRs. The OWLTrek OTDR now brings this feature to the entry-level OTDR market. While in event location mode, the OWLTrek OTDR marks events on the trace, has an event table showing the location, type, reflectance level, and loss of each event, and auto-zooms to the selected event.
DYNAMIC RANGE VS. DISTANCE: OWLTrek singlemode OTDRs are capable of finding breaks in singlemode optical fibers up to 80 miles to within +/- 6 feet. Additional splices and other loss producing events will limit end distance estimates. This is true for all OTDRs. However, passive singlemode Telco links are almost always less than 12 miles long. At this distance, OWLTrek OTDRs have break finding capability of about +/- 1 meter! In fact, increased dynamic range is actually a disadvantage in almost all cases because of the increased OTDR cost (usually
Applications Features 2.8” color LCD display automatically rotates based on orientation of OTDR (portrait vs. landscape) Live Mode allows users to expand OTDR display onto larger laptop screen Automatically locates events and places them in an internal event table Full horizontal and vertical pan/zoom function User-selectable parameters such as index of refraction, test mode, pulse width, and averaging Integrated user help screens SC/UPC connector port USB interface for downloading stored readings Integrated visual fault locator Re-chargeable Lithium Polymer battery allows for up to 20 hours of normal usage FREE OWLView for OTDR software prints OTDR trace reports and stored OTDR readings on hard disk for later retrieval
