OWL ZO2 ZOOM 2 optical power meter with data storage
Available*
Item # 53419650
Model # ZO2
$292.61
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

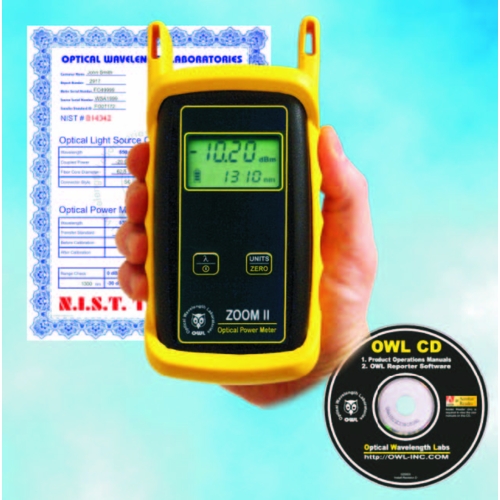

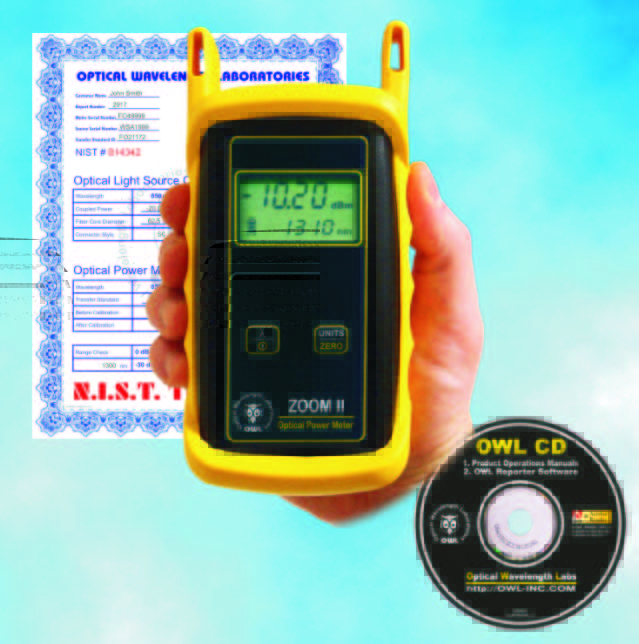

OWL OPTICAL WAVELENGTH LABORATORIES ZO2 ZOOM 2 optical power meter with data storage NEW
FEATURES: InGaAs photodetector with 2.5mm universal adapter (ST, SC, FC, and other 2.5mm connectors) Multimode and singlemode ready Graphical LCD display with intuitive user interface Simple 2-key operation Power measurements shown in dBm, dB, or microwatts Display resolution of 0.01 dB Stores optical references for each wavelength to be used for optical loss testing Long battery life - up to 250 hrs on one 9v battery Charger port allows for wall power operation or for charging 9-volt re-chargeable batteries Upgradeable to fiber link certification and reporting
APPLICATIONS: The ZOOM 2 is a high accuracy, high resolution, microprocessor controlled optical power meter. It has a wide 65 dB dynamic range, and is calibrated to measure 850, 1300, 1310, and 1550nm, making it ideal for both singlemode and multimode fiber testing, as well as 1490nm for measurement of FTTx PON networks. It has an attractive handheld case with an easy-to-read graphical liquid crystal display and 2-key keypad for easy operation. It is offered with a 2.5mm universal fiber connector for easy connection to ST, SC, and FC connectors, will operate for over 250 hours on a standard high-capacity 9v battery, and has built-in auto shutdown. The built-in charger port allows for wall power operation, as well as for charging 9- volt re-chargeable batteries. The ZOOM 2 can store reference values for each wavelength to be used for optical loss measurements, and can display measurements in dBm, dB, and microwatts. The on-screen battery capacity indicator doubles as the battery charger display. An additional benefit of the ZOOM 2 is that it can be easily upgraded to include the capability for fiber link certification Key Specifications and reporting and auto-testing.
FEATURES: InGaAs photodetector with 2.5mm universal adapter (ST, SC, FC, and other 2.5mm connectors) Multimode and singlemode ready Graphical LCD display with intuitive user interface Simple 2-key operation Power measurements shown in dBm, dB, or microwatts Display resolution of 0.01 dB Stores optical references for each wavelength to be used for optical loss testing Long battery life - up to 250 hrs on one 9v battery Charger port allows for wall power operation or for charging 9-volt re-chargeable batteries Upgradeable to fiber link certification and reporting
APPLICATIONS: The ZOOM 2 is a high accuracy, high resolution, microprocessor controlled optical power meter. It has a wide 65 dB dynamic range, and is calibrated to measure 850, 1300, 1310, and 1550nm, making it ideal for both singlemode and multimode fiber testing, as well as 1490nm for measurement of FTTx PON networks. It has an attractive handheld case with an easy-to-read graphical liquid crystal display and 2-key keypad for easy operation. It is offered with a 2.5mm universal fiber connector for easy connection to ST, SC, and FC connectors, will operate for over 250 hours on a standard high-capacity 9v battery, and has built-in auto shutdown. The built-in charger port allows for wall power operation, as well as for charging 9- volt re-chargeable batteries. The ZOOM 2 can store reference values for each wavelength to be used for optical loss measurements, and can display measurements in dBm, dB, and microwatts. The on-screen battery capacity indicator doubles as the battery charger display. An additional benefit of the ZOOM 2 is that it can be easily upgraded to include the capability for fiber link certification Key Specifications and reporting and auto-testing.
