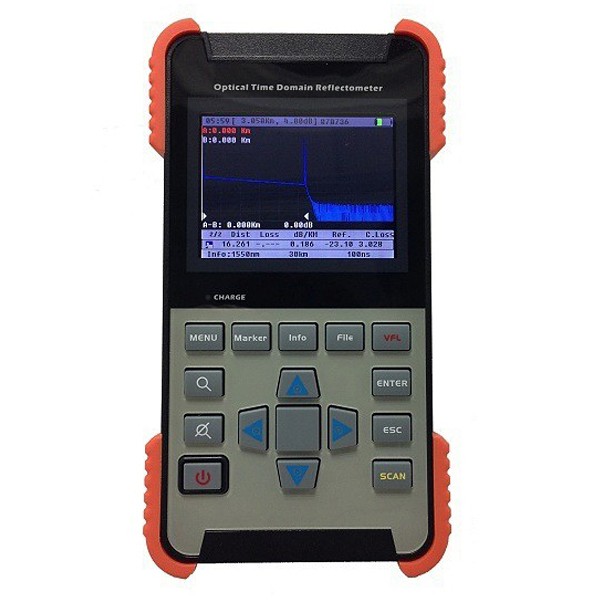

Tribrer Aor500-B Otdr 1310-1550 Sm

Tribrer Aor500-B Otdr 1310-1550 Sm 32/30Db Pal, Otdr

Product Feature Automatic One-Button Testing High Speed Signal Processing, Short Test Time And Fast Analysis High Contrast Color Tft Lcd Usb Port Connect To Pc Input Laser Signal Auto Detection And Self-Protection Function Built-In Vfl Easy To Operate For Beginners And Experts Integrated Palm Design,Small And Light,Easy To Carry Short Dead Zone(1.5M) High Performance & Easy To Use Otdr Internal Memory Can Store Up To 10000 Waveforms Improved Waveform Quality User-Friendly Otdr Simulation Software Shows Details Of Events

Product Specification/Models

Specifications Model Aor500-A Aor500-B Wavelength 1310�20Nm / 1550�20Nm

Dynamic Range* 28Db / 26Db 32Db / 30Db

Event Dead Zone ** < 1.5M Attenuation Dead Zone < 8.0M Pulse Width 5Ns, 10Ns, 25Ns, 50Ns, 100Ns, 250Ns, 500Ns, 1000Ns,2500Ns,5000Ns

Distance Uncertainty �(1.0M�0.005% * Testing Distance�Resolution)

Linearity �.05Db/ Db Loss Resolution 0.001Db

Distance Resolution 1M

Connector Fc, Sc

Vfl 1Mw

Data Storage > 10000 Traces (Standard 1Gb Sd Card) Display 3.5 Inch Tft Color Lcd Interface Usb

Battery Built-In Rechargeable Battery Working Time >10 Hrs (Bellcore Tr-Nwt-001138) * Pulse Width 10Us, Average Time>5 Minutes, Snr=1,23�C�2�C ** Pulse Width 10Ns, Terminal Refection Loss>40Db

General Specifications

Size(H*W*D) 230Mm * 120Mm * 60Mm Weight About 900G

Storage Temperature -20 -- +60�C, < 90%Rh Operating Temperature -10 -- +50�C, < 90%Rh Accessories

Standard

Otdr Main Unit*1 Usb Cable*1

Ac/Dc Adapter With Power Cord*1 Sd Card*1

Operation Guide*1 Sc Interchangeable Connector*1 Carrying Bag*1 Certificate Of Calibration*1

Application 1.The Installation And Maintenance For An(Access Network) Optical Cables; 2.The Installation And Maintenance For Lan(Local Area Networks); 3.The Installation And Maintenance For Fttx; 4.The Installation And Maintenance For Cable Tv Networks; 5.The Installation And Maintenance For Private Optical Fiber Networks.Read More
