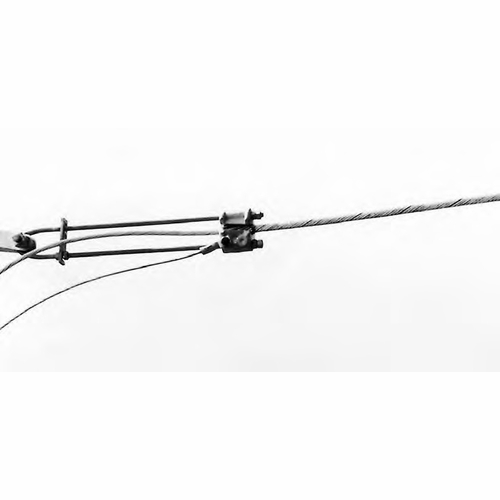

PLP 2801304 FIBERLIGN DEAD-END 18 inch TU OPGW .444-.460 *ORDER MINIMUM* 10
Available*
Item # 52939740
Model # 2801304
$268.54
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Deadend
Material and Supplies
Hardware- Screws- Bolts
Clamps
Preformed Line Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

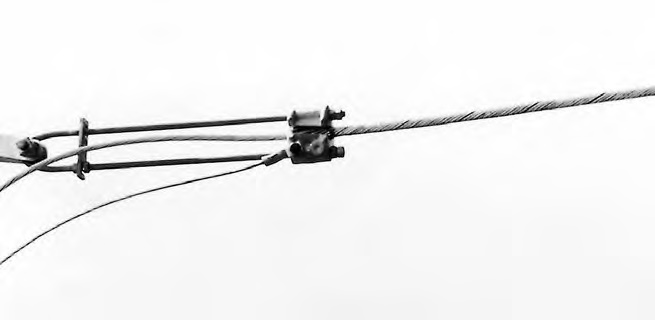

Preformed Line Products 2801304 FIBERLIGN DE 18" TU OPGW .444-.460 NEW
The FIBERLIGN Dead-end is designed to terminate Optical Ground Wire (OPGW) while minimizing any compression stresses that may be transferred to the core or optical elements within. The Retaining Rods act with the Wedge and Housing to distribute the axial and compressive loading over a large area of the OPGW. Standard units have lefthand lay rods. The FIBERLIGN® Dead-end sketch at the bottom of this page includes reference to the exposed rod length “LE” or the rod length beyond the housing. This dimension is listed in the catalog table to help with VORTX™ Damper placement. The slotted Housing design allows for the application of the FIBERLIGN Dead-end at any location on the OPGW. BONDING: Provisions for electrically bonding the OPGW to the supporting structure or ground lead are an integral part of the Housing. A 1" x 1/2"-13 UNC, 2A galvanized Grounding Bolt and Lock Washer are provided. GROUNDING WIRE ASSEMBLY OPTIONS: A 4' ground wire with compression terminal can be provided. This assembly can be connected from the FIBERLIGN Dead-end to the ground lead in your system. Two types of ground materials are offered (copper or aluminum). To included the preferred ground wire assembly in the same carton with the Dead-end, add the appropriate suffix code to the Dead-end catalog number. ADJUSTMENT: The U-Bolt provides up to 18 inches of take-up to allow for tension adjustment and extra clearance distance without the need for external hardware such as a turnbuckle or extension links. COMPONENT STRENGTH: The value shown in the table on the following page reflects the strength of the standard housing and U-bolt. Higher strength requirements can be accommodated. Contact PLP® for more information. HOLDING STRENGTH: Specific holding strengths on an OPGW cable will depend upon that cable’s internal construction design and composition of the materials used for the individual strands. The highest holding capabilities exist with cables that use all aluminum clad steel strands in a single layer. Use of multiple layers and/or aluminum alloy strands may reduce holding capabilities. Consult Preformed Line Products for information regarding holding abilities of the FIBERLIGN OPGW Dead-end for a specific OPGW design.
The FIBERLIGN Dead-end is designed to terminate Optical Ground Wire (OPGW) while minimizing any compression stresses that may be transferred to the core or optical elements within. The Retaining Rods act with the Wedge and Housing to distribute the axial and compressive loading over a large area of the OPGW. Standard units have lefthand lay rods. The FIBERLIGN® Dead-end sketch at the bottom of this page includes reference to the exposed rod length “LE” or the rod length beyond the housing. This dimension is listed in the catalog table to help with VORTX™ Damper placement. The slotted Housing design allows for the application of the FIBERLIGN Dead-end at any location on the OPGW. BONDING: Provisions for electrically bonding the OPGW to the supporting structure or ground lead are an integral part of the Housing. A 1" x 1/2"-13 UNC, 2A galvanized Grounding Bolt and Lock Washer are provided. GROUNDING WIRE ASSEMBLY OPTIONS: A 4' ground wire with compression terminal can be provided. This assembly can be connected from the FIBERLIGN Dead-end to the ground lead in your system. Two types of ground materials are offered (copper or aluminum). To included the preferred ground wire assembly in the same carton with the Dead-end, add the appropriate suffix code to the Dead-end catalog number. ADJUSTMENT: The U-Bolt provides up to 18 inches of take-up to allow for tension adjustment and extra clearance distance without the need for external hardware such as a turnbuckle or extension links. COMPONENT STRENGTH: The value shown in the table on the following page reflects the strength of the standard housing and U-bolt. Higher strength requirements can be accommodated. Contact PLP® for more information. HOLDING STRENGTH: Specific holding strengths on an OPGW cable will depend upon that cable’s internal construction design and composition of the materials used for the individual strands. The highest holding capabilities exist with cables that use all aluminum clad steel strands in a single layer. Use of multiple layers and/or aluminum alloy strands may reduce holding capabilities. Consult Preformed Line Products for information regarding holding abilities of the FIBERLIGN OPGW Dead-end for a specific OPGW design.
