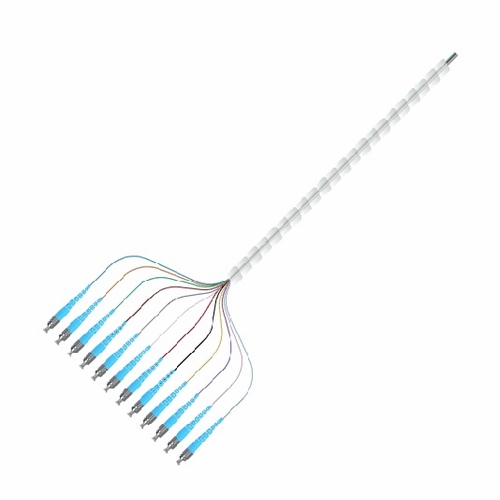

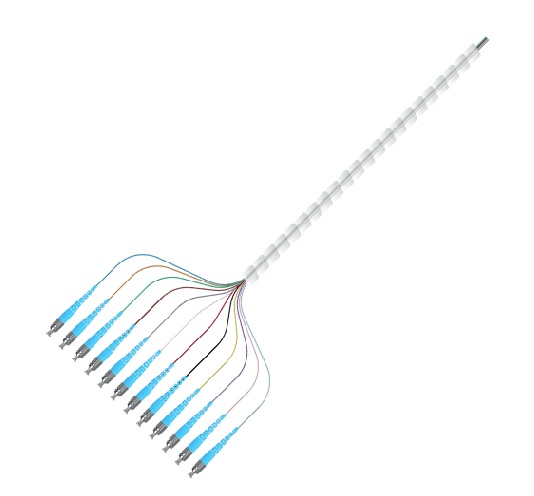

Multilink 065-365-10-ML Pigtail, 12 Fiber, FC/UPC, SM, 3 meter Spiral Wrapped PLC Optical Splitter
Item # 51298295
Model # 065-365-10-ML
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pigtails
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Pigtails- Breakouts
Multilink
SC ST LC FC E2000 MTJ Universal Adapters
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 065-365-10-ML Pigtail, 12 Fiber, FC/UPC, SM, 3 meter Spiral Wrapped PLC Optical Splitter
Multilink 065-365-10-ML Pigtail, 12 Fiber, FC/UPC, SM, 3 meter Spiral Wrapped PLC Optical Splitter
FC/UPC Fiber Optic Pigtail 065-365-10-ML FC/UPC, 12 Fibers Spiral Wrapped, Tight Buffered Fiber, Riser Rated, 900µm Singlemode 9/125µm, Bend Insensitive, 8" Breakout
General Specifications Fiber Count 12 Outer Jacket Color Natural Application Riser Rated General Building Applications Indoor Horizontal Nominal Outer Diameter 6.35mm Cable Length 3 Meter Cable Assesmbly Type 12 Fiber Pigtail Flame Rating Riser Rated OFNR
Fiber Specifications Cable Type (12) Singlemode 900µm Simplex 9/125µm Tight Buffered Bend Insensitive G657 A1 Fiber Category Singlemode (OS1) Insertion Loss Typical 0.12 dB Reflectance, Typical #1 < -58 dB
Connector Specifications Polish UPC Connector Type FC/UPC Housing Material Metal Housing Color Metal Boot Color Blue Ferrule Material Zirconia
Multilink 065-365-10-ML Pigtail, 12 Fiber, FC/UPC, SM, 3 meter Spiral Wrapped PLC Optical Splitter
FC/UPC Fiber Optic Pigtail 065-365-10-ML FC/UPC, 12 Fibers Spiral Wrapped, Tight Buffered Fiber, Riser Rated, 900µm Singlemode 9/125µm, Bend Insensitive, 8" Breakout
General Specifications Fiber Count 12 Outer Jacket Color Natural Application Riser Rated General Building Applications Indoor Horizontal Nominal Outer Diameter 6.35mm Cable Length 3 Meter Cable Assesmbly Type 12 Fiber Pigtail Flame Rating Riser Rated OFNR
Fiber Specifications Cable Type (12) Singlemode 900µm Simplex 9/125µm Tight Buffered Bend Insensitive G657 A1 Fiber Category Singlemode (OS1) Insertion Loss Typical 0.12 dB Reflectance, Typical #1 < -58 dB
Connector Specifications Polish UPC Connector Type FC/UPC Housing Material Metal Housing Color Metal Boot Color Blue Ferrule Material Zirconia
