Multilink 030-180-25 12RU Backhaul Wall/Unistrut Mount (w/o service entrance, w/fused 48V DC Fans)
Multilink 030-180-25 12RU Backhaul Wall/Unistrut Mount (w/o service entrance, w/fused 48V DC Fans)
12RU Wall/Unistrut Mount (w/o service entrance, fused 48V DC Fans) 030-180-25

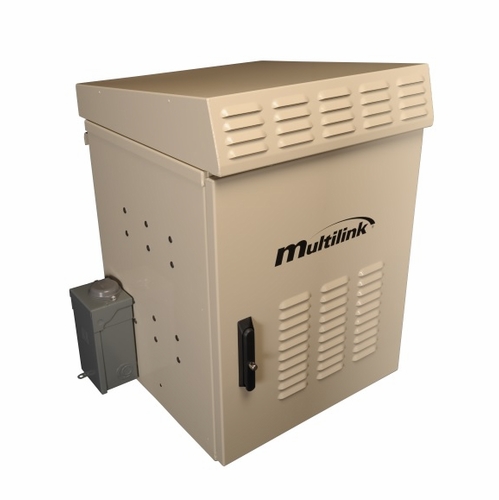

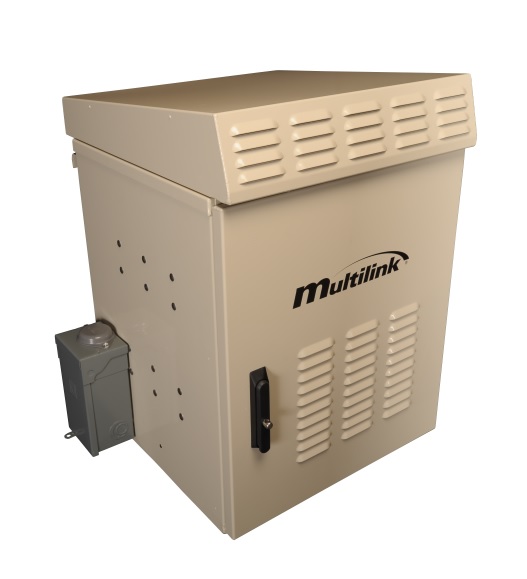

This 12RU is a perfect solution for any small backhaul application. The enclosure provides a full 12RU of mounting space in a compact, weatherproof enclosure. The unit is wall or unistrut mountable and features a pad lockable 3-point locking system. Dual 100 CFM fans are thermostatically controlled and flush hot air out through a 100% differentiated chamber above the cabinet. Five cable entrance knockouts are located on the bottom of the enclosure for ample cable entry ability.
General Specifications Heating & Cooling Dual thermostatically controlled, 48V DC, 100CFM fans with patented lifesaver roof and heat shield UOM Each Cable Entrance 4 X(Ø1.5 X 2.25") Dual Stage Knockouts 1 X(Ø4.00") Single Stage Knockout Hardware Stainless Steel Door 3 Point Latch Piano Hinge Wind Stop Powering 125V Duplex Receptacle w/Service Entrance
Physical Specifications Width 22" Height 31" Depth 23.5" Weight 85 lbs Color Beige Main Body Aluminum Finish Polyester Powder Coat
Mechanical Specifications Mounting Wall Unistrut
Safety Standard Specifications Standards NEMA 250 3R
Rack Specifications Rack Width 19" Rack Units 12RU Rack Threads 10 - 32 EIA/TIA Spacing
Multilink 030-180-25 12RU Backhaul Wall/Unistrut Mount (w/o service entrance, w/fused 48V DC Fans)
12RU Wall/Unistrut Mount (w/o service entrance, fused 48V DC Fans) 030-180-25
This 12RU is a perfect solution for any small backhaul application. The enclosure provides a full 12RU of mounting space in a compact, weatherproof enclosure. The unit is wall or unistrut mountable and features a pad lockable 3-point locking system. Dual 100 CFM fans are thermostatically controlled and flush hot air out through a 100% differentiated chamber above the cabinet. Five cable entrance knockouts are located on the bottom of the enclosure for ample cable entry ability.
General Specifications Heating & Cooling Dual thermostatically controlled, 48V DC, 100CFM fans with patented lifesaver roof and heat shield UOM Each Cable Entrance 4 X(Ø1.5 X 2.25") Dual Stage Knockouts 1 X(Ø4.00") Single Stage Knockout Hardware Stainless Steel Door 3 Point Latch Piano Hinge Wind Stop Powering 125V Duplex Receptacle w/Service Entrance
Physical Specifications Width 22" Height 31" Depth 23.5" Weight 85 lbs Color Beige Main Body Aluminum Finish Polyester Powder Coat
Mechanical Specifications Mounting Wall Unistrut
Safety Standard Specifications Standards NEMA 250 3R
Rack Specifications Rack Width 19" Rack Units 12RU Rack Threads 10 - 32 EIA/TIA Spacing
