Product Description

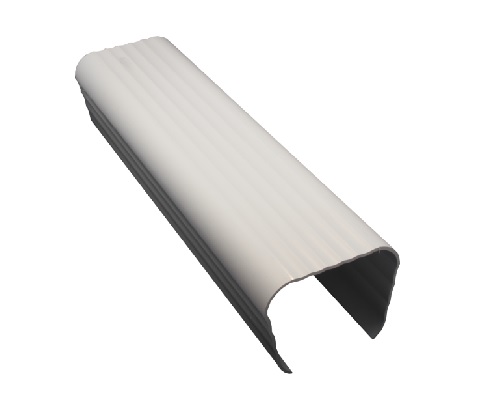

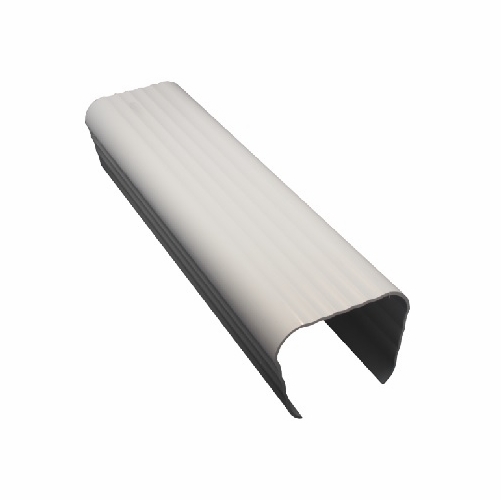

Multilink 039-141-10Dssc-W Downspout Seam Cover White Raceway Solutions
Multilink 039-141-10Dssc-W
Downspout Seam Cover White Raceway Solutions
Seam Cover - Downspout, White, 10 / Pack
039-141-10
Downspout, White, 10 / Pack
General Specifications
Application Outdoor
Warranty 1 Year Defects In Workmanship
Chemical Resistance Retains A Minimum Of 50% Of Tensile Strength After 30 Day Exposure To 3% H2So4, .2N Naoh, Nh3, 90% Alcohol, Kerosene, 10% Lgepal
Impact Resistance 2.5Ft. Lbs. Referencing Tr1334 Section 5.4
Fungus Resistance Astm G21 Zero Rating Per Gr 3126 Requirement
Uom 10 / Pack
Crush Resistance 300 Lbs. Per Gr3126 Requirement
General Specifications
Installation Temperature Range -18�C To 45�C (0�F To 113�F)
Physical Specifications
Color White
Material Rigid Flexible Pvc
Environmental Specifications
Operating Temperature -18�C To 58�C (0�F To 136�F)
Safety Standard Specifications
Safety Standard Ul 2024:2014 Ed. 5 And Csa C22.2 #262:2004 Ed. 1 Optical Fiber Cable And Communication Cable Raceway Systems (Select Colors)Read More
