Product Description

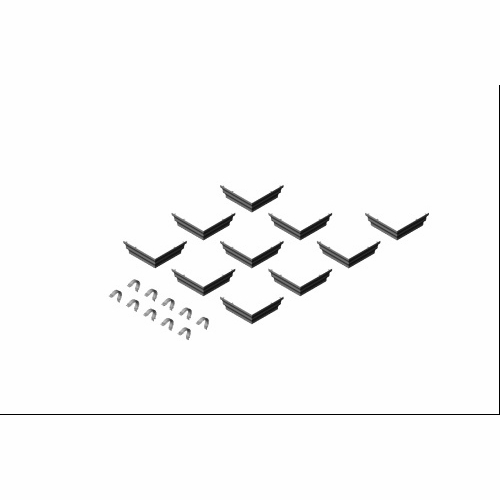

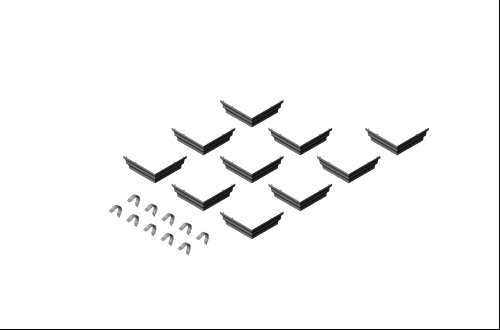

Multilink 039-404-10Mrwh15-Ocr-Lw Outside Corner & Radius Hinged Cover Molding Linen White Fittings
Multilink 039-404-10Mrwh15-Ocr-Lw
Outside Corner & Radius Hinged Cover Molding Linen White Fittings
Outside Elbow W/ Bend Radius - Hinged Overlay, Linen White, 10 / Pack
039-404-10
Hinged Overlay, Linen White, 10 / Pack
General Specifications
Uv Resistance Astm 155 1000 Hour Exposure Per Gr3126Requirement
Fungus Resistance Astm G21 Zero Rating Per Gr 3126 Requirement
Uom 10 / Pack
Crush Resistance 300 Lbs. Per Gr3126 Requirement
Application Indoor
Impact Resistance 2.5Ft. Lbs. Referencing Tr1334 Section 5.4
Chemical Resistance Retains A Minimum Of 50% Of Tensile Strength After 30 Day Exposure To 3% H2So4, .2N Naoh, Nh3, 90% Alcohol, Kerosene, 10% Lgepal
General Specifications
Installation Temperature Range -18�C To 45�C (0�F To 113�F)
Physical Specifications
Color Linen White
Material Rigid Flexible Pvc
Environmental Specifications
Operating Temperature -18�C To 58�C (0�F To 136�F)
Safety Standard Specifications
Safety Standard Ul 2024:2014 Ed. 5 And Csa C22.2 #262:2004 Ed. 1 Optical Fiber Cable And Communication Cable Raceway Systems (Select Colors)Read More
