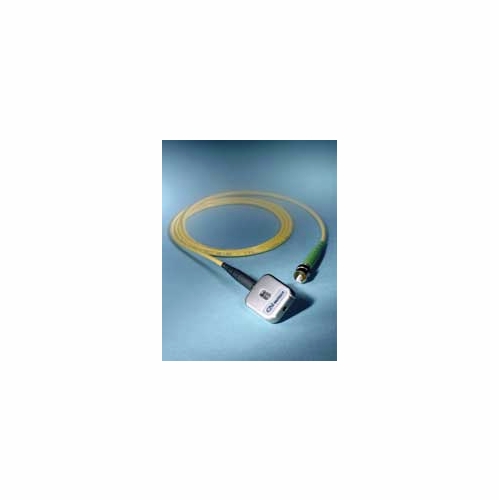

ANRITSU FIBERCONNECT-1-USC BARE FIBER ADAPTER SM SC CONNECTOR
Available*
Item # 51114000
Model # FiberConnect-1-
$903.15
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Adapter
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Test Adapters
Anritsu
Fiber Bare Fiber Adapater
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
ANRITSU FIBERCONNECT-1-USC BARE FIBER ADAPTER SM SC CONNECTOR NEW The FiberConnect Bare Fiber Adapter is the ultimate time-saving solution for coupling unterminated fiber or optical components to test equipment. By allowing the user to perform optical measurements without cleaving or terminating, which requires additional equipment and procedures, the overall test time can be reduced by 50 percent. The low loss and highly repeatable connection made using the FiberConnect is similar to that of connectorized fibers or components.
The FiberConnect contains a precision glass ferrule that is permanently aligned to a connectorized cable assembly. Available in multiple configurations, the FiberConnect is suited for a variety of multimode or single-mode applications. It is offered with UPC or APC polish in an assortment of connector styles. For added convenience, the FiberConnect can be attached to a smooth surface with either the integrated magnetic mount or the supplied suction-cup base.
The FiberConnect is extremely easy-to-use; only a single drop of index matching oil is required. The fiber to be coupled is stripped and cleaned, then inserted into the unit until the end face meets the permanently mounted fiber. The result is a low loss, low-reflectance connection suitable for any testing application.
Benefits
Evaluation of fiber spans or optical components without termination Reduction of test time by over 50% No precision cleave is required to perform optical measurements
Features
Highly repeatable Easy-to-use Low insertion loss and back reflectance
Specifications
Model FiberConnect Bare Fiber Adapter Fiber type SM 9/125 µm MM 62.5/125 or 50/125 µm Pigtail Length 1 meter Insertion Loss (Typical) < 0.6 dB Number of Insertions 2000 minimum Back Reflectance < -50 dB Connector UFC, UST, USC, AFL, ASC, LC, D4, E2, DIN
The FiberConnect contains a precision glass ferrule that is permanently aligned to a connectorized cable assembly. Available in multiple configurations, the FiberConnect is suited for a variety of multimode or single-mode applications. It is offered with UPC or APC polish in an assortment of connector styles. For added convenience, the FiberConnect can be attached to a smooth surface with either the integrated magnetic mount or the supplied suction-cup base.
The FiberConnect is extremely easy-to-use; only a single drop of index matching oil is required. The fiber to be coupled is stripped and cleaned, then inserted into the unit until the end face meets the permanently mounted fiber. The result is a low loss, low-reflectance connection suitable for any testing application.
Benefits
Evaluation of fiber spans or optical components without termination Reduction of test time by over 50% No precision cleave is required to perform optical measurements
Features
Highly repeatable Easy-to-use Low insertion loss and back reflectance
Specifications
Model FiberConnect Bare Fiber Adapter Fiber type SM 9/125 µm MM 62.5/125 or 50/125 µm Pigtail Length 1 meter Insertion Loss (Typical) < 0.6 dB Number of Insertions 2000 minimum Back Reflectance < -50 dB Connector UFC, UST, USC, AFL, ASC, LC, D4, E2, DIN
