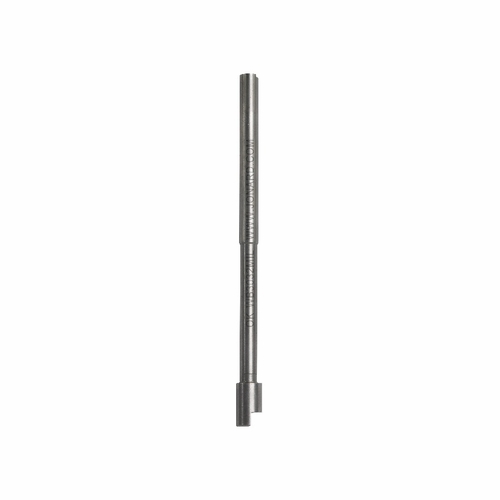

JONARD WB3032MIL Wire Wrapping Bit 30-32 Awg 811490013452
Available*
Item # 38281500
Model # WB3032MIL
$66.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Wrap
Tools
Hand Tools
Wire Wrapping- Frame- Block
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

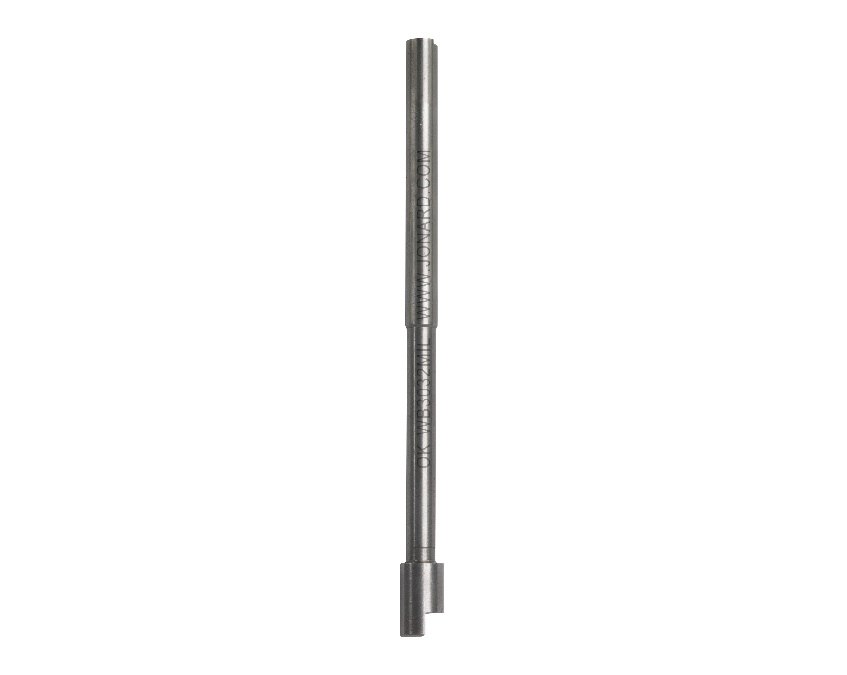

JONARD WB3032MIL Wire Wrapping Bit 30-32 Awg 811490013452
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 30 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins Compatible Wrap Sleeve Part #: P3032 and P3032INS
Specifications Sleeve Part No. P3032 and P3032INS (sold separately)
Wrap Function Wrap
Wrap Type Modified
Wire Gauge 30-32 AWG (0.25 mm-0.20 mm)
Maximum Insulation Diameter 0.027" (0.69 mm)
Minimum Terminal Diagonal 0.034" (0.86 mm)
Maximum Terminal Diagonal 0.038" (0.96 mm)
Terminal Hole Depth 0.75" (19.05 mm)
Terminal Hole Diameter 0.040" (1.02 mm)
Effective Radius 0.064" (1.62 mm)
Wrap Post Size 0.025" (0.63 mm)
Length 3" (76.2 mm)
Weight 0.049 lb (22.22 g)
UPC No. 811490013452
