JONARD WB26SM Wire Wrapping Bit, 26 Awg 811490013056
Available*
Item # 38281470
Model # WB26SM
$66.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Wrap
Tools
Hand Tools
Wire Wrapping- Frame- Block
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

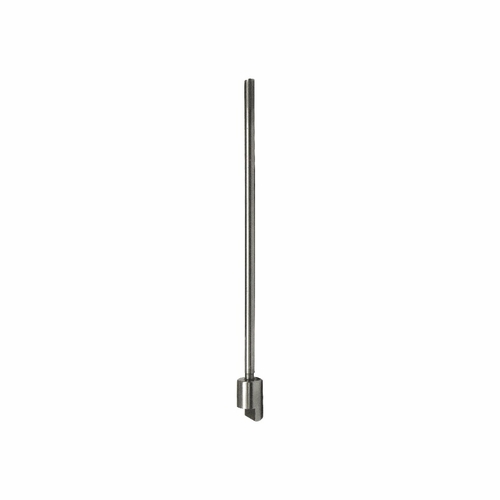

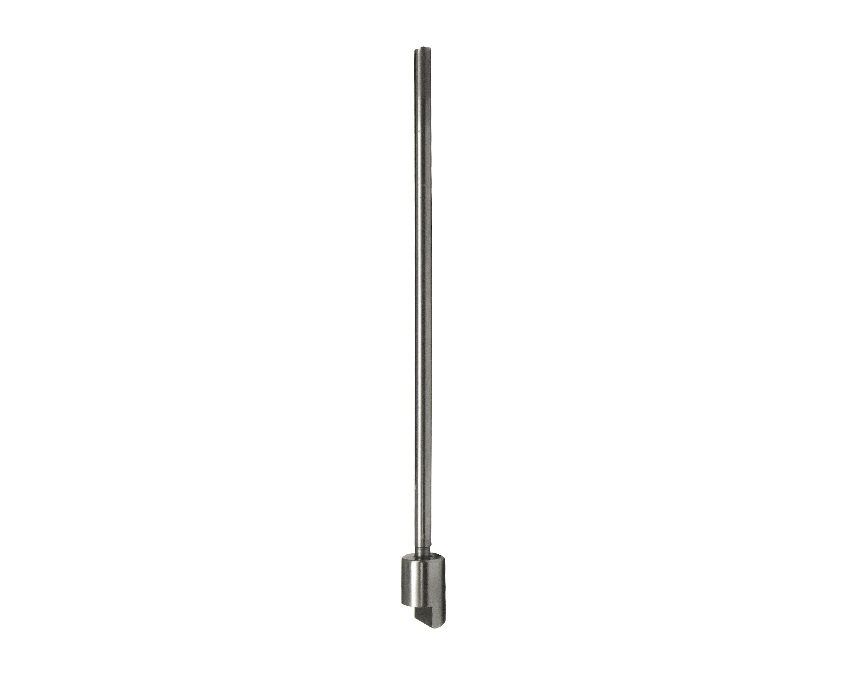

JONARD WB26SM Wire Wrapping Bit, 26 Awg 811490013056
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins Compatible Wrap Sleeve Part #: P26LN
Specifications Sleeve Part No. P26LN (sold separately)
Wrap Function Wrap
Wrap Type Modified
Wire Gauge 26 AWG (0.40 mm)
Maximum Insulation Diameter 0.031" (0.79 mm)
Minimum Terminal Diagonal 0.023" (0.58 mm)
Maximum Terminal Diagonal 0.038" (0.96 mm)
Terminal Hole Depth 0.75" (19.05 mm)
Effective Radius 0.075" (1.9 mm)
Terminal Hole Diameter 0.040" (1.02 mm)
Wrap Post Size 0.025" (0.63 mm)
Length 3" (76.2 mm)
Weight 0.052 lb (23.58 g)
UPC No. 811490013056
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins Compatible Wrap Sleeve Part #: P26LN
Specifications Sleeve Part No. P26LN (sold separately)
Wrap Function Wrap
Wrap Type Modified
Wire Gauge 26 AWG (0.40 mm)
Maximum Insulation Diameter 0.031" (0.79 mm)
Minimum Terminal Diagonal 0.023" (0.58 mm)
Maximum Terminal Diagonal 0.038" (0.96 mm)
Terminal Hole Depth 0.75" (19.05 mm)
Effective Radius 0.075" (1.9 mm)
Terminal Hole Diameter 0.040" (1.02 mm)
Wrap Post Size 0.025" (0.63 mm)
Length 3" (76.2 mm)
Weight 0.052 lb (23.58 g)
UPC No. 811490013056
