JONARD KB24-5 Wire Wrapping Bit 5 inch , 24 Awg 811490013438
Available*
Item # 38280570
Model # KB24-5
$93.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Bits 24
Tools
Hand Tools
Wire Wrapping- Frame- Block
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

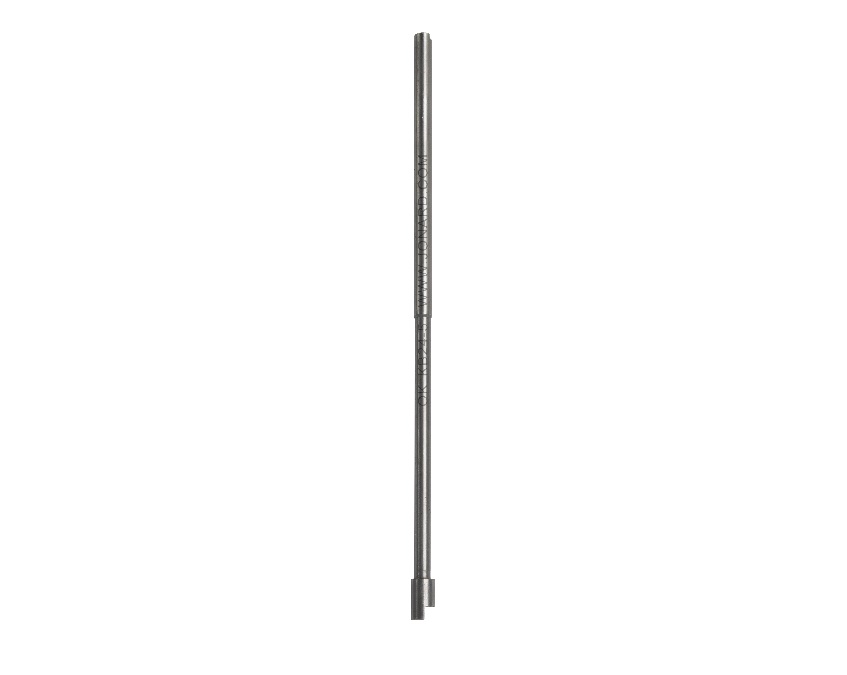

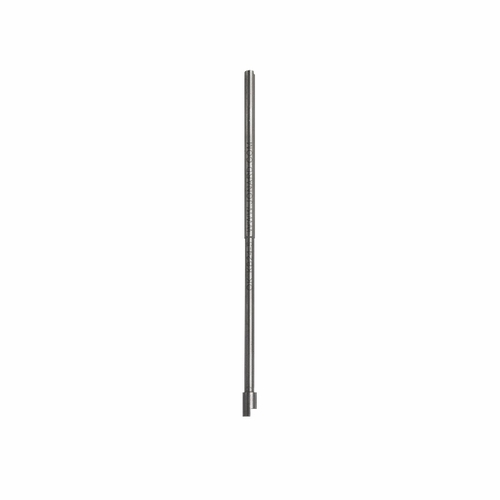

JONARD KB24-5 Wire Wrapping Bit 5", 24 Awg 811490013438
Fully compatible with any make or model of wire wrapping tools, this 5" wire wrapping bit is perfect for wrapping 24 AWG wire around binding posts in hard-to-reach locations when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2426-5 and P2426-5INS
Specifications Sleeve Part No. P2426-5 and P2426-5INS (sold separately)
Wrap Function Wrap
Wrap Type Regular
Wire Gauge 24 AWG (0.5 mm)
Minimum Terminal Diagonal 0.055" (1.39 mm)
Maximum Terminal Diagonal 0.073" (1.85 mm)
Terminal Hole Depth 0.75" (19.05 mm)
Terminal Hole Dia. 0.075" (1.9 mm)
Effective Radius 0.100" (2.54 mm)
Wrap Post Size 0.045" (1.14 mm)
Length 5" (127 mm)
Weight 0.083 lb (37.65 g)
UPC No. 811490013438
Fully compatible with any make or model of wire wrapping tools, this 5" wire wrapping bit is perfect for wrapping 24 AWG wire around binding posts in hard-to-reach locations when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2426-5 and P2426-5INS
Specifications Sleeve Part No. P2426-5 and P2426-5INS (sold separately)
Wrap Function Wrap
Wrap Type Regular
Wire Gauge 24 AWG (0.5 mm)
Minimum Terminal Diagonal 0.055" (1.39 mm)
Maximum Terminal Diagonal 0.073" (1.85 mm)
Terminal Hole Depth 0.75" (19.05 mm)
Terminal Hole Dia. 0.075" (1.9 mm)
Effective Radius 0.100" (2.54 mm)
Wrap Post Size 0.045" (1.14 mm)
Length 5" (127 mm)
Weight 0.083 lb (37.65 g)
UPC No. 811490013438
