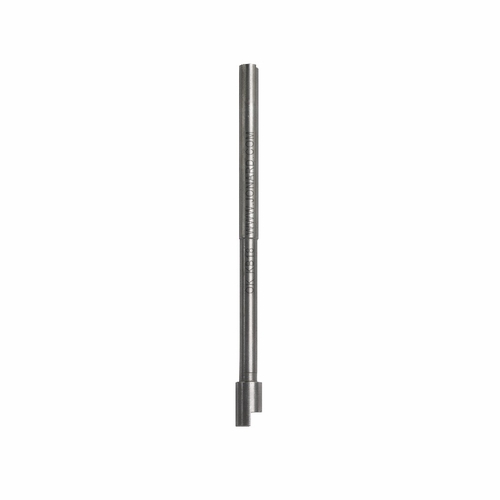

JONARD KB18 Wire Wrapping Bit, 18 Awg 811490013445
Available*
Item # 38280510
Model # KB18
$99.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Bits 18
Tools
Hand Tools
Wire Wrapping- Frame- Block
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

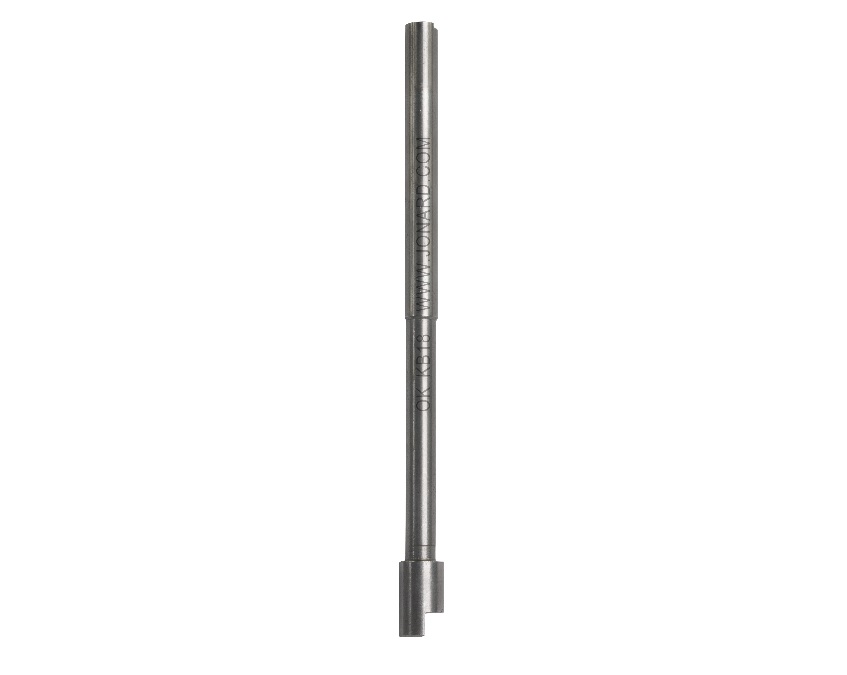

JONARD KB18 Wire Wrapping Bit, 18 Awg 811490013445
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 18 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P194LN
Specifications Sleeve Part No. P194LN (sold separately)
Wrap Function Wrap
Wrap Type Regular
Wire Gauge 18 AWG (1 mm)
Minimum Terminal Diagonal 0.060" (1.52 mm)
Maximum Terminal Diagonal 0.073" (1.85 mm)
Terminal Hole Diameter 0.075" (1.9 mm)
Terminal Hole Depth 1" (25.4 mm)
Effective Radius 0.15" (3.81 mm)
Wrap Post Size 0.045" (1.14 mm)
Length 3" (76.2 mm)
Weight 0.048 lb (21.77 g)
UPC No. 811490013445
