UNIWELD 12106 / UPC 12106 Mastar Lt Duty 1 Stage Regulator O2 w/Gauge Boots PSI/Kg 2-60 PSIG inch A
Available*
Item # 37840505
Model # 12106
$110.44
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Torches
Tools
Torches- Heat Shrink
Kits
Uniweld Products Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

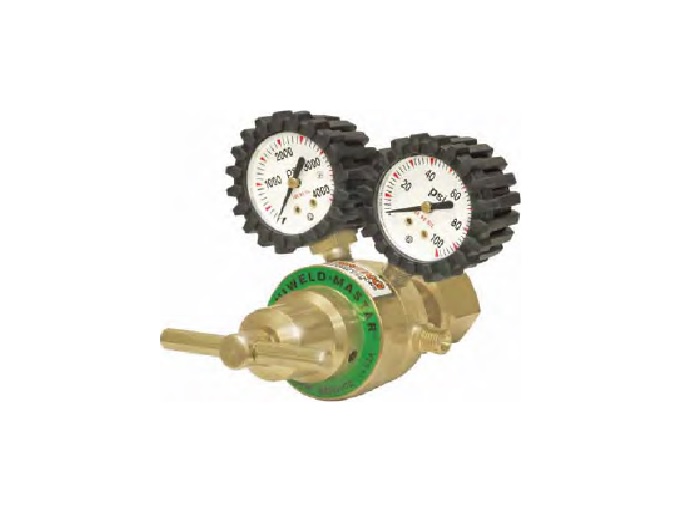

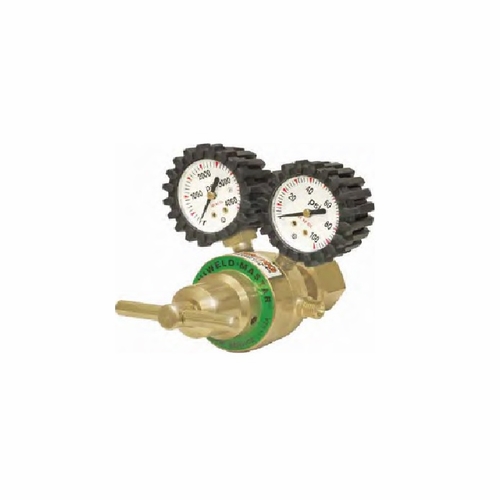

UNIWELD 12106 / UPC 12106 Mastar Lt Duty 1 Stage Regulator O2 w/Gauge Boots PSI/Kg 2-60 PSIG "A" RH
MASTAR RS SERIES - Light Duty Forged brass body Machined brass bonnet Easy-to-read single scale 1-1/2" gauges 1-5/8" tri-layered reinforced neoprene diaphragm Mechanical stem type seat Rear inlet cylinder connection Porous metal inlet filter T-handle for smooth adjustment Blow off disc type pressure relief for low pressure gauge protection only Protective rubber gauge boots
SPECS: CGA INLET : Oxygen 540 OUTLET CONNECTION: "A" (RH) 3/8" -24(M) DEL. PSIG : 2-60 REPLACEMENT 1-1/2" GAUGES : G85-1: 100 PSI/Kg and G82-1; 4000 PSI/Kg
Depth: 6” Width: 3-3/4” Height: 4-1/4” Weight: 2-1/2 lbs.
Note: The standard cubic foot per hour flows are obtained with the regulator outlet full open with no restrictions; using a preset outlet pressure and with decreasing cylinder pressure.
MASTAR RS SERIES - Light Duty Forged brass body Machined brass bonnet Easy-to-read single scale 1-1/2" gauges 1-5/8" tri-layered reinforced neoprene diaphragm Mechanical stem type seat Rear inlet cylinder connection Porous metal inlet filter T-handle for smooth adjustment Blow off disc type pressure relief for low pressure gauge protection only Protective rubber gauge boots
SPECS: CGA INLET : Oxygen 540 OUTLET CONNECTION: "A" (RH) 3/8" -24(M) DEL. PSIG : 2-60 REPLACEMENT 1-1/2" GAUGES : G85-1: 100 PSI/Kg and G82-1; 4000 PSI/Kg
Depth: 6” Width: 3-3/4” Height: 4-1/4” Weight: 2-1/2 lbs.
Note: The standard cubic foot per hour flows are obtained with the regulator outlet full open with no restrictions; using a preset outlet pressure and with decreasing cylinder pressure.
