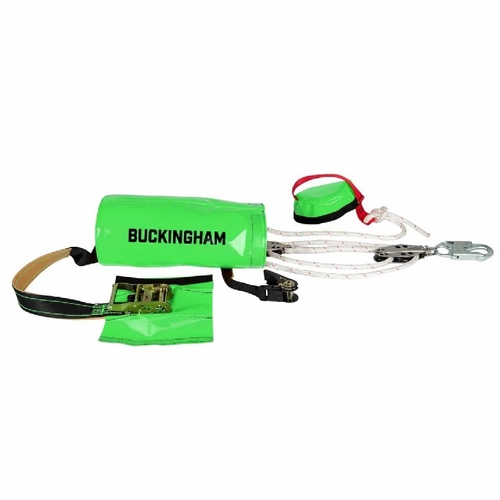

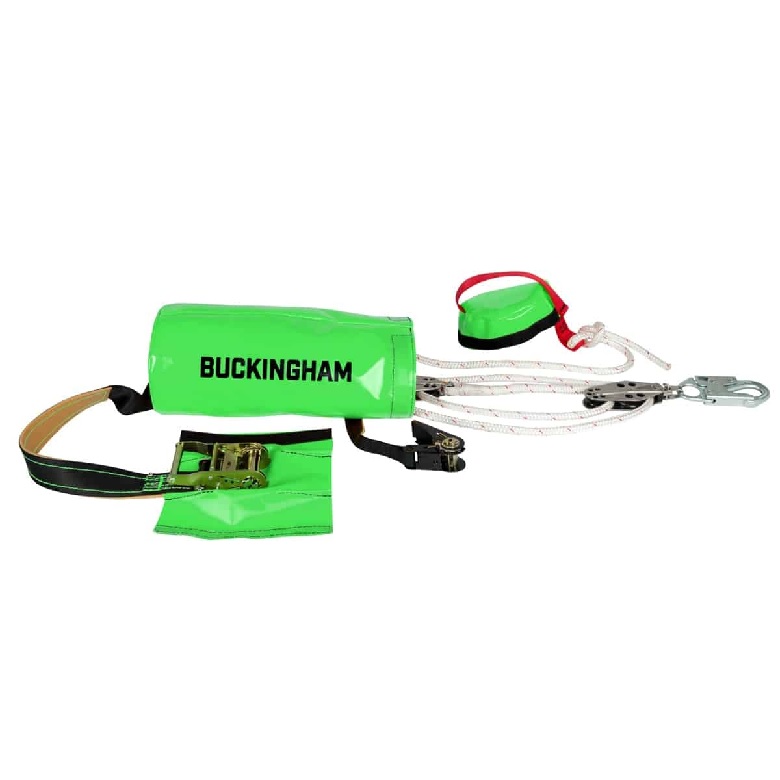

Buckingham 3813D1Q6 HURT MAN BUCKET TRUCK RESCUE SYSTEM - 3813D1Q6
Available*
Item # 376507010
Model # 3813D1Q6
$1,029.08
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Winches
Safety Equipment
Personnel Retrieval
Winches- Personnel retrieval
Buckingham Manufacturing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Buckingham 3813D1Q6 HURT MAN BUCKET TRUCK RESCUE SYSTEM - 3813D1Q6
Buckingham 3813D1Q6 HURT MAN BUCKET TRUCK RESCUE SYSTEM - 3813D1Q6
Buckingham’s Hurt Man Bucket Truck Rescue System 3813D1 & 3813 has been redesigned.
The new BuckViz Safety Green™ bag allows you to deploy the system components from the bottom of the bag rather than reaching all the way to the top of the bag; saving you valuable time in a rescue situation. The new bag was also specifically designed to keep water out of the system allowing it to be permanently mounted to the boom while reducing the possibility of moisture damage to critical components. This design also prevents the kit components, like the rope and pulley system from inadvertently coming out of the storage bag.
*In compliance with the ANSI Z359.4 standard, this product has a user weight limit of 130 to 310 lbs. (59 to 140 kg) when fully equipped.
The Buck Hurt Man Rescue system was developed to easily lift an injured or unconscious worker from an aerial basket using a 4:1 mechanical advantage pulley system.
Pulleys are made of marine grade stainless steel and provide a 4 to 1 mechanical advantage. 7/16" diameter braided rope allows for up to a 20’ lift and reduces twisting of the pulleys. The larger diameter rope also provides the rescuer a better grip while lifting, even when wearing gloves. New storage bag prevents water from seeping into the bag. Straps with gum rubber allow for secure placement on the boom.
Specifications Product Number: 3813D1Q6 Product Name: Hurt Man Bucket Truck Rescue System Pulley Assembly Rope: 7/16" Rope Pulley 1 - Length: 6 7/16" Pulley 1 - Width: 2 3/8" Pulley 1 - Weight: 11.3 oz. Pulley 2 - Length: 7 3/16" Pulley 2 - Width: 2 3/8" Pulley 2 - Weight: 11.9 oz. Number of Connectors: 2 SnapHook Connector Type: 1706 SnapHook SnapHook - Weight: 13.7 oz. (390gm) SnapHook - Length: 5.8" (147gm) SnapHook - Width: 2.4" SnapHook - Material: Forged Steel Diameter of Eye: 1" (25mm) SnapHook Gate Opening Capacity: 15/16" (25mm) SnapHook Gate Strength: 3,600 lbs. SnapHook Breaking Strength: 5,000 lbf (22KN) Other: Ratchet Straps: Yes Gum Rubber Straps: Yes Number of Attachment Straps: 2 Storage Bag Material: Vinyl Coated Nylon Bag Closure Type: Hook & Loop System Overall Weight: 12 lbs. Made in USA?: Yes
Buckingham 3813D1Q6 HURT MAN BUCKET TRUCK RESCUE SYSTEM - 3813D1Q6
Buckingham’s Hurt Man Bucket Truck Rescue System 3813D1 & 3813 has been redesigned.
The new BuckViz Safety Green™ bag allows you to deploy the system components from the bottom of the bag rather than reaching all the way to the top of the bag; saving you valuable time in a rescue situation. The new bag was also specifically designed to keep water out of the system allowing it to be permanently mounted to the boom while reducing the possibility of moisture damage to critical components. This design also prevents the kit components, like the rope and pulley system from inadvertently coming out of the storage bag.
*In compliance with the ANSI Z359.4 standard, this product has a user weight limit of 130 to 310 lbs. (59 to 140 kg) when fully equipped.
The Buck Hurt Man Rescue system was developed to easily lift an injured or unconscious worker from an aerial basket using a 4:1 mechanical advantage pulley system.
Pulleys are made of marine grade stainless steel and provide a 4 to 1 mechanical advantage. 7/16" diameter braided rope allows for up to a 20’ lift and reduces twisting of the pulleys. The larger diameter rope also provides the rescuer a better grip while lifting, even when wearing gloves. New storage bag prevents water from seeping into the bag. Straps with gum rubber allow for secure placement on the boom.
Specifications Product Number: 3813D1Q6 Product Name: Hurt Man Bucket Truck Rescue System Pulley Assembly Rope: 7/16" Rope Pulley 1 - Length: 6 7/16" Pulley 1 - Width: 2 3/8" Pulley 1 - Weight: 11.3 oz. Pulley 2 - Length: 7 3/16" Pulley 2 - Width: 2 3/8" Pulley 2 - Weight: 11.9 oz. Number of Connectors: 2 SnapHook Connector Type: 1706 SnapHook SnapHook - Weight: 13.7 oz. (390gm) SnapHook - Length: 5.8" (147gm) SnapHook - Width: 2.4" SnapHook - Material: Forged Steel Diameter of Eye: 1" (25mm) SnapHook Gate Opening Capacity: 15/16" (25mm) SnapHook Gate Strength: 3,600 lbs. SnapHook Breaking Strength: 5,000 lbf (22KN) Other: Ratchet Straps: Yes Gum Rubber Straps: Yes Number of Attachment Straps: 2 Storage Bag Material: Vinyl Coated Nylon Bag Closure Type: Hook & Loop System Overall Weight: 12 lbs. Made in USA?: Yes
