Buckingham 3078Q Step Bolt w/ 7/8" Anchor Thread - 3078Q
Available*
Item # 376506954
Model # 3078Q
$34.22
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
WINCHES
Safety Equipment
Personnel Retrieval
Winches- Personnel Retrieval
BUCKINGHAM MANUFACTURING
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

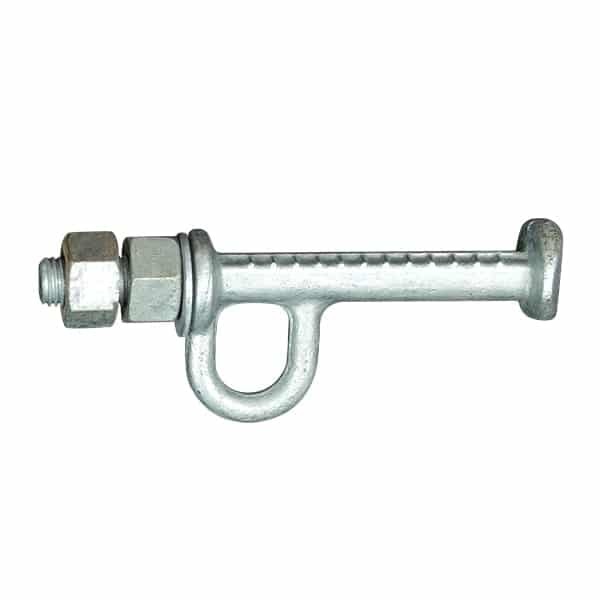

Buckingham 3078Q Step Bolt W/ 7/8" Anchor Thread - 3078Q
Buckingham 3078Q Step Bolt W/ 7/8" Anchor Thread - 3078Q
Buckingham Offers A Wide Variety Of Buckbolts™ And Flanges Designed To Replace/Retrofit Existing Step Bolts With A 5,000Lb. Rated Anchor Point.
Features:
7/8" Diameter Thread For Installation. 2 7/16" Overall Anchor Thread 8 ˝" Overall Length New Osha Requirement 1910.24(A) (7) States That "Each Step Bolt Installed On Or After January 17, 2017, Must Be Capable Of Supporting At Least Four Times Its Maximum Intended Load." These Buckbolts™ Meet Or Exceed This Requirement. Buckbolts™ Are Hot-Dip Galvanized To Add A Zinc Coating That Protects Against Corrosion In The Field. Designed With A Large Head At The End Of The Buckbolt™ To Prevent Foot Slippage, Which Meets Or Exceeds Osha Standard 1910.24(A)(2). Has A 5" Clear Width, Which Exceeds Osha Standard 1910.24(A)(4).
Specifications Product Number: 3078Q Product Name: Buckbolt™ W/ 7/8" Anchor Thread Material: Steel Thread Diameter: 7/8" Thread Length: 2 7/16" Step Width: 3/4" Head Width: 1 1/2" Anchor Length: 2" Anchor Eye Diameter: 1 1/4" Clear Width (Footing): 5" Coating: Hot Dip Galvanized Total Length: 8 1/2" Weight Rating: 5,000 Lbs. Weight: 2.57 Lbs. Standards: Meets And Exceeds Osha 1910.24 Requirements And Meets All Applicable Ansi Standards. Made In The Usa?: Yes
Buckingham 3078Q Step Bolt W/ 7/8" Anchor Thread - 3078Q
Buckingham Offers A Wide Variety Of Buckbolts™ And Flanges Designed To Replace/Retrofit Existing Step Bolts With A 5,000Lb. Rated Anchor Point.
Features:
7/8" Diameter Thread For Installation. 2 7/16" Overall Anchor Thread 8 ˝" Overall Length New Osha Requirement 1910.24(A) (7) States That "Each Step Bolt Installed On Or After January 17, 2017, Must Be Capable Of Supporting At Least Four Times Its Maximum Intended Load." These Buckbolts™ Meet Or Exceed This Requirement. Buckbolts™ Are Hot-Dip Galvanized To Add A Zinc Coating That Protects Against Corrosion In The Field. Designed With A Large Head At The End Of The Buckbolt™ To Prevent Foot Slippage, Which Meets Or Exceeds Osha Standard 1910.24(A)(2). Has A 5" Clear Width, Which Exceeds Osha Standard 1910.24(A)(4).
Specifications Product Number: 3078Q Product Name: Buckbolt™ W/ 7/8" Anchor Thread Material: Steel Thread Diameter: 7/8" Thread Length: 2 7/16" Step Width: 3/4" Head Width: 1 1/2" Anchor Length: 2" Anchor Eye Diameter: 1 1/4" Clear Width (Footing): 5" Coating: Hot Dip Galvanized Total Length: 8 1/2" Weight Rating: 5,000 Lbs. Weight: 2.57 Lbs. Standards: Meets And Exceeds Osha 1910.24 Requirements And Meets All Applicable Ansi Standards. Made In The Usa?: Yes
