Product Description

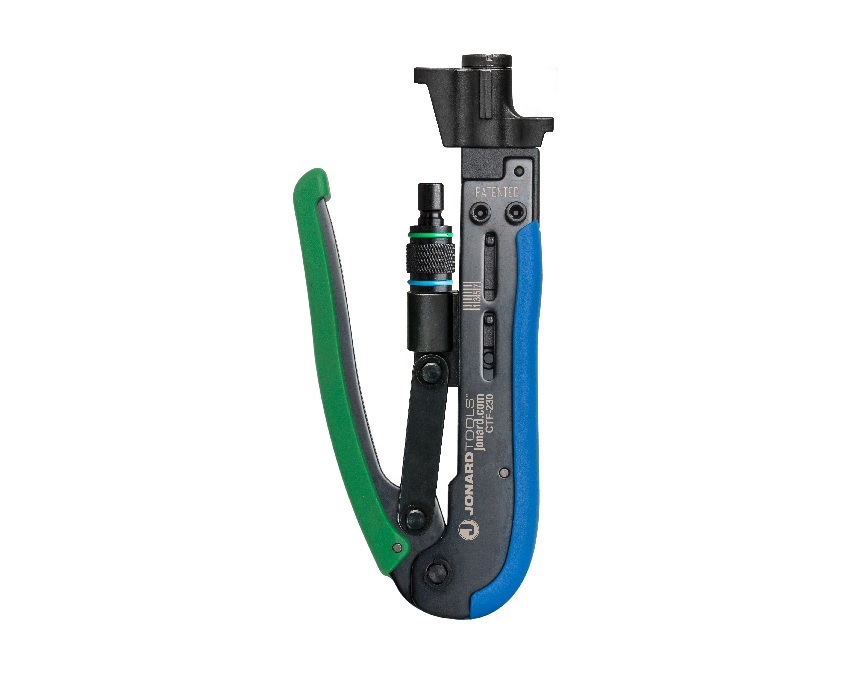

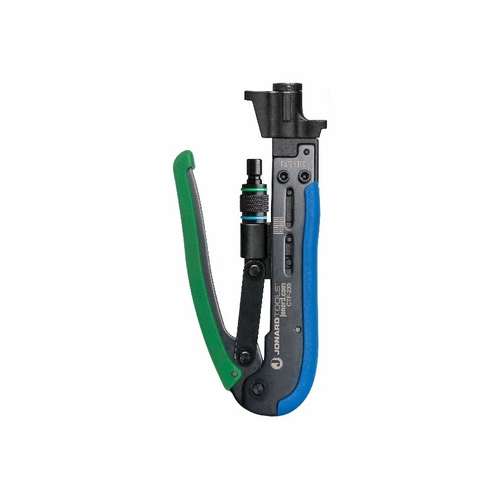

JONARD CTF-230 Dual Compression Tool 811490016996
This dual compression tool is two tools in one, combining the features of the CTF-200 and the CTF-300. It is designed for use on either short or long F connectors (such as PPC EX6 and PPC EX6XL), and also works on most RG11 connectors.
The Green ring side of the plunger is for the “short” PPC EX6 style connectors and the Blue side of the plunger is for the “long” PPC EX6 XL style connectors.
Simple to use:
Select the proper head size by rotating head to the long or short setting
Position the plunger: Green facing the connector for short connectors and Blue facing the connector for long connectors. Pull the plunger to remove and select which side to insert back into tool.
Insert the cable and connector in the tool and squeeze
Some of the connectors this tool will work on are listed below:
PPC: CMP6, CMP6Q, CMP59, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLWS, EX6LP , EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX11N716WS, EX59XLWS, EX11N716WSPLUS, EX11N716PLUS, EX7N716WSPLUS, EX7N716PLUS, EX6XLPLUS, EX6XLWSPLUS, EX59XLPLUS, EX59XLWSPLUS, EX6XLWS, EX6IEC.
Digicon: DS6, DS59, DS59Q, DS11,DS7
Belden: SNS11A5TP275, SNS59Q5NS, SNS1P59QS, SNS11A5NS, SNS7ASNS, SNS1P6, SNS59TP275, SNS6TP275, SNS7BNS, SNS1P59, SNS1P59HEL, SNS7BQ, SNS7AS, SNS7B
Cablecon: CX3-F596, CX3-IECF, CX3-IECM, FM-RG11-CX3, FM-RG7-CX3, F-CX3
Corning Gilbert UltraEase: GF-UE-59, GF-UE-59Q, GF-UE-6, GF-UE-6Q, GF-UE-5.1, GF-URS-6-SR, GF-URS-59-SR, GAF-URS-11MH.
ATX Networks: 9-MPF-CQ
Specifications
Connector Type
F Short, F Long
Material
Carbon Steel
Length
6-3/4" (171mm)
Weight
0.967 lbs (438.62g)
UPC No.
811490016996
