JONARD OTDR-1000 Multi-Function OTDR UPC 810053350669
Available*
Item # 37301042
Model # OTDR-1000
$1,495.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Otdr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
Jonard Industries Corp
Fiber OTDR Singlemode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

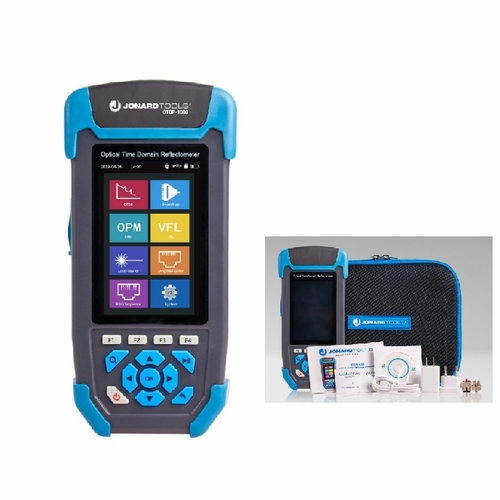

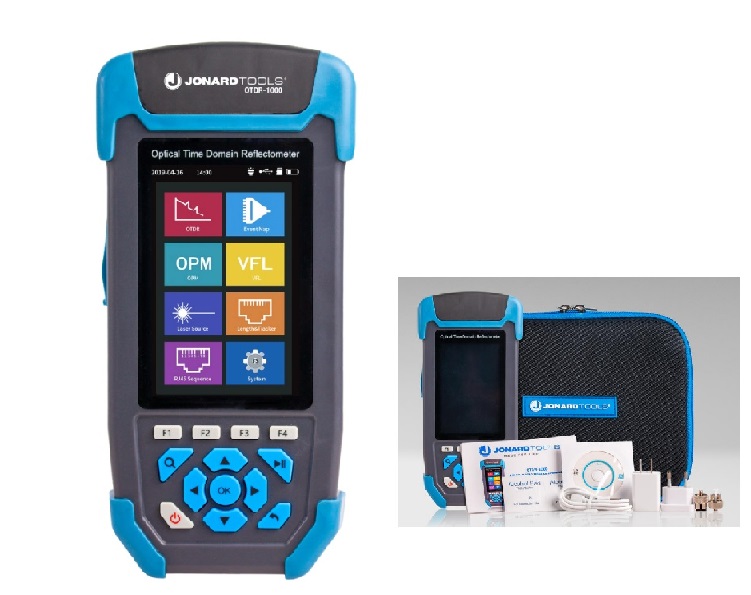

JONARD OTDR-1000 Multi-Function OTDR UPC 810053350669
JONARD OTDR-1000 Multi-Function OTDR UPC 810053350669
Jonard Tools’ Mini Pro OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This Mini Pro OTDR also features the following:
Includes 8 different functions for testing and evaluating fiber optic and network cables Bright 3.5" color LCD screen makes it quick and easy to evaluate data Rubberized hard plastic case is shock-proof and drop-proof for maximum durability 600 MB Internal storage with MicroSD/TF card slot for additional memory Built-in rechargeable lithium ion battery provides power on-the-go Can be charged or connected to a computer for data transfer via included micro-USB cable Includes FC, SC, and LC (PC/UPC) OTDR adapters for fiber optic cables, downloadable software (also featured in the download section of this product page), power cord with plug adapters, alcohol wipes, and instruction manual
Specifications Wavelengths 1310nm/1550nm±20nm
Fiber Type G.652 SingleMode Fiber
Dynamic Range 24dB/22dB
Event Blind Zone 3m
ATT Blind Zone 8m
Test Range 500m~60km
Pulse Width 3ns~10us
Range Accuracy ±(1m+Sampling Interval +0.005%×Test Distance)
Loss Accuracy ±0.2dB/dB
# of Sampling Points 16k~128k
Sampling Resolution 0.05m~8m
Reflection Accuracy ±3dB
Data Storage Internal:=600;External:TF Card
Laser Safety Level Class IIIA
File Format SOR Standard File Format
Included Connectors for OTDR FC, SC, LC (PC/UPC)
Dimensions 10.5" x 7.5" x 2.5" (26.67 cm x 19.05 cm x 6.35 cm)
Weight 2.06 lb (935.24 g)
UPC # 810053350669
JONARD OTDR-1000 Multi-Function OTDR UPC 810053350669
Jonard Tools’ Mini Pro OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This Mini Pro OTDR also features the following:
Includes 8 different functions for testing and evaluating fiber optic and network cables Bright 3.5" color LCD screen makes it quick and easy to evaluate data Rubberized hard plastic case is shock-proof and drop-proof for maximum durability 600 MB Internal storage with MicroSD/TF card slot for additional memory Built-in rechargeable lithium ion battery provides power on-the-go Can be charged or connected to a computer for data transfer via included micro-USB cable Includes FC, SC, and LC (PC/UPC) OTDR adapters for fiber optic cables, downloadable software (also featured in the download section of this product page), power cord with plug adapters, alcohol wipes, and instruction manual
Specifications Wavelengths 1310nm/1550nm±20nm
Fiber Type G.652 SingleMode Fiber
Dynamic Range 24dB/22dB
Event Blind Zone 3m
ATT Blind Zone 8m
Test Range 500m~60km
Pulse Width 3ns~10us
Range Accuracy ±(1m+Sampling Interval +0.005%×Test Distance)
Loss Accuracy ±0.2dB/dB
# of Sampling Points 16k~128k
Sampling Resolution 0.05m~8m
Reflection Accuracy ±3dB
Data Storage Internal:=600;External:TF Card
Laser Safety Level Class IIIA
File Format SOR Standard File Format
Included Connectors for OTDR FC, SC, LC (PC/UPC)
Dimensions 10.5" x 7.5" x 2.5" (26.67 cm x 19.05 cm x 6.35 cm)
Weight 2.06 lb (935.24 g)
UPC # 810053350669
