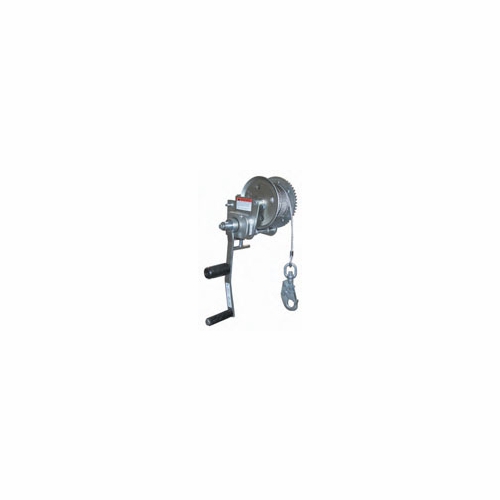

PELSUE PH10C MAN RATED WINCH W/ 100‘ x 3/16 inches STAINLESS STEEL CABLE & PELSUE DAVIT BRACKET

PELSUE PH10C MAN RATED WINCH W/ 100‘ x 3/16” STAINLESS STEEL CABLE & PELSUE DAVIT BRACKET NEW The Pelsue winch is designed to attach to a person that is entering or exiting from a confined space. It is built with an internal braking system to prevent the accidental pay out of line, as well as a back-up locking pawl system to prevent “free-wheeling” of the winch. Cable extension (pay out) should occur ONLY when the handle is turned counter-clockwise AND a force of AT LEAST 10 lbs. (4.5 kg.) is applied to the line. The winch frame back plate attaches to a mounting plate which can then be mated to the various Pelsue structures and components.

Features: • Man rated to 350 lbs. • 10:1 safety factor • 5.5:1 gear ratio single speed drive • Retrieval rate of 23’ per minute • Continuous braking drive prevents free wheeling • Double pawls on friction brake provide back up safety • Low wear, high temperature brake pads eliminate brake maintenance for life of the winch • Anti-friction drive bearings assure trouble free life in continuous use • Three permanent wraps of cable on the drum to assure low cable attachment loads • Level wind springs prevent loosening of cable lays • Slip clutch drive prevents back winding of cable drum • Galvanic zinc coating of all metal parts reduces corrosion in harsh environments • Double action locking swivel snap hook is provided that can be used with remote connect/disconnect equipment • Mounting means provided for quick attachment • Available with stainless steel cable or synthetic rope

Specifications:

Model # Description Weight TW07C 70' S/S Cable 30 lbs

TW10C 100 S/S Cable 38 lbs

PW15C 150 S/S Cable 40 lbs

PW30C 300 S/S Cable 48 lbs

PW07R 70’ Synth. Rope 25 lbs

PW10R 100’ Synth. Rope 30 lbs

PW15R 150’ Synth. Rope 32 lbs

PW20C 350# man-rated, with 200' of s/s rope 40 lbs

PW30C 350# man-rated, with 300' of s/s rope 48 lbs The Pelsue winch is designed to attach to a person that is entering or exiting from a confined space. It is built with an internal braking system to prevent the accidental pay out of line, as well as a back-up locking pawl system to prevent “free-wheeling” of the winch. Cable extension (pay out) should occur ONLY when the handle is turned counter-clockwise AND a force of AT LEAST 10 lbs. (4.5 kg.) is applied to the line. The winch frame back plate attaches to a mounting plate which can then be mated to the various Pelsue structures and components.
