PELSUE FT-C70 Fall arrest tower - Uni-Lite, Carbon Fiber, up to three person tie-off
Available*
Item # 35202100
Model # FT-C70
$3,242.16OUR PRICE
$3,704.40REG. PRICE
YOU SAVE 12%
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tower
Safety Equipment
Personnel Retrieval
Winches- Personnel retrieval
Pelsue
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

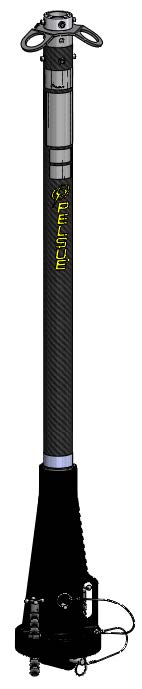

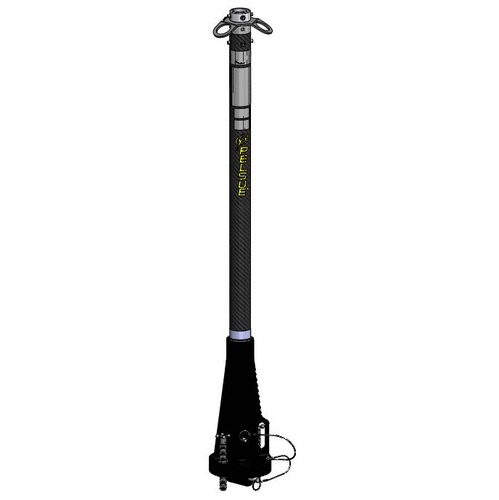

PELSUE FT-C70 Fall arrest tower - Uni-Lite, Carbon Fiber, up to three person tie-off NEW
The Pelsue #FT-C70 Composite Fall Arrest Tower is constructed of carbon fiber & aluminum, and also incorporates several steel and engineered plastic components. The Model #FT-C70 possesses a composite upper section (#500573-001) which can be inserted into its standard base (#500019-001) to provide multiple anchor points that are elevated 70” above a working surface. The 70” height places the anchorages at the desirable anchorage level of the upper back. The #FT-C70 can also be used in a “Rescue Mode” in the event a person or persons has to be rescued. The tower can be leaned over up to 23 degrees from the vertical using the adjusting screw pegs in the base which allows greater clearance away from the side of the work platform for raising or lowering a fallen worker. All specifications, instructions, and procedures provided within the product manual or upon Pelsue Specification Documents are based upon and only valid for usage with approved Pelsue base systems. The T.A. Pelsue Company can not verify equipment safety and/or compliance if the product is anchored with anything other than a Pelsue-Brand base.
General Specifications: Product is designed and tested to be used as: A portable Elevated Fall Arrest Anchorage Point Man Rated Load Capacity....... Up to three users of a maximum weight of 310 lbs. per person inclusive of all tools & equipment with a safe working radius of 70” about the Tower Base Warning! A 900 LB. maximum arrest force (MAF) fall arrest device must be used when the tower is employed as part of a complete fall arrest system. Each user must be connected to a separate ring on the Tri-Ring Anchor via a dedicated 900# MAF device.
Materials & Construction: Tower............................................Carbon Fiber & Aluminum Base..............................................Aluminum & Magnesium Alloy Hardware......................................Plated Steel Weight: Weight............Tower - 10.5 LBS. (4.8 Kg) Base Assembly - 28.5 LBS. (13 Kg.) Total - 39 LBS. (17.7 Kg.)
Other Features: Installs on elevated work surfaces requiring access Provides an elevated fall arrest anchor point for up to three persons Offers a “Rescue Mode” to facilitate the lifting & lowering of incapacitated personnel.
