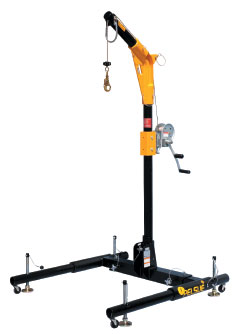

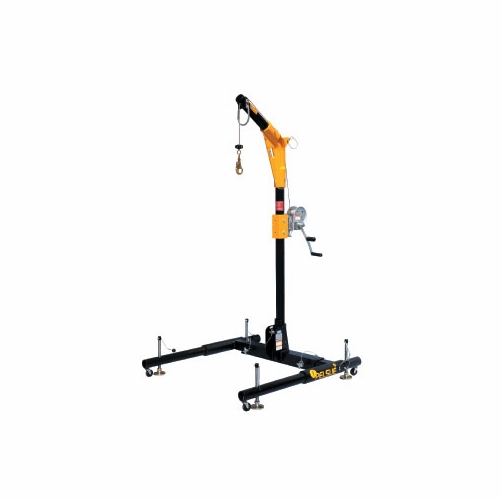

PELSUE DK4248 DAVIT MAST, INCLUDES CENTER POST, ELBOW & 42/48 OFFSET ARM (BASE & WINCH SEPARATE) N Our component based davit assembly can be mated with many styles of bases. The mast consists of an aluminum offset tube, fabricated aluminum elbow section, and aluminum center post with winch mounting bracket. Cast aluminum elbow units are reversible and provide cost effective, versatile means of achieving multiple offset reaches. Assemblies are offered as adjustable offset units capable of either an 18/24 or 30/36 or 42/48 offset reach. All davits are man rated to 350 lbs. and offer a universal bracket for attachment of alternate lifting systems and/or 900 lb. MAF fall arrest devices. Assembly provides locations for up to two winch mounting plates. One winch mounting plate of the users choice is provided with assembly.
For information on winches, please go here.
Model # Length Weight
60 Center Post w/winch bracket
Fabricated Elbow - reversible
18/24 Offset Mast - arm only
30/36 Offset Mast - arm only
42/48 Offset Mast - arm only
18/24 Offset Mast, Rev. Elbow, & Center Post
30/36 Offset Mast, Rev. Elbow, & Center Post
42/48 Offset Mast, Rev. Elbow, & Center Post
Base - expandable from 36 to 56 ID
EB66 Base - expandable from 46 to 66 ID (115 lbs)
5"X5"X21" 8 LBS
62"X8"X8" 30 LBS
29"X13"X7" 13 LBS
