GMP 70220 LIFTER REEL THING 1 TON RT20
Available*
Item # 31115050
Model # 70220
$802.29
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Reels
Tools
Line Construction- Placing
Reels- Takeup- Drop- Carts
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GMP 70220 LIFTER REEL THING 1 TON RT20 NEW
GMP 70220 LIFTER REEL THING 1 TON RT20 NEW

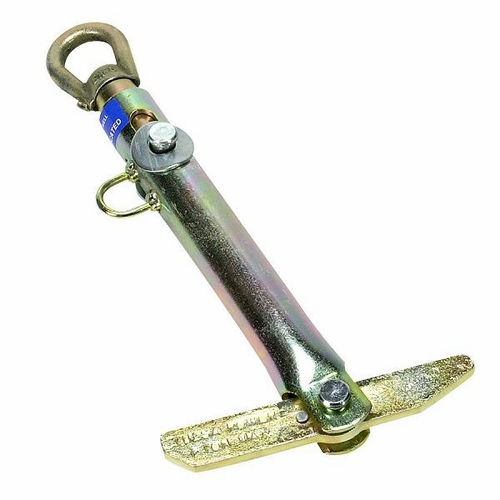

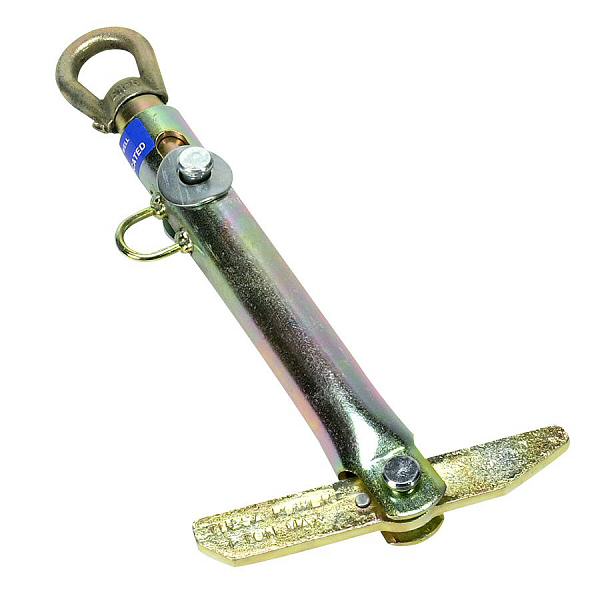

P/N 70220 Reel Lifter 3000 lbs. (1361kg) Requires min hole diameter of 1-3/4 inch Weight: 6 lbs. (2.7 kg)
This handy device makes your reel lifting, stacking and cable removal from a standing reel a breeze. Can be used on reels weighing up to 3,000 lbs. (PN 70220) Allows one person to do the work of several
To use the Reel Lifter, position a reel on its side so that one hole in the reel is facing upward. Place the lifter inside the flange and mechanically raise the lifter by the top ring. A toggle at the bottom of the lifter, now inside the reel, will swivel "open" allowing the entire reel to be lifted for stacking or to remove cable.
To remove the Reel lifter place the reel back on a flat surface and simply raise the lifter by the cylindrical body rather than the top ring. This will allow the toggle to remain "closed" and the entire lifter will come clear of the reel.
Reel Lifter 3000 lbs. Hole Range 2-4 inch P/N 70220 Weight: 6 lbs.
Reel Lifter 4500 lbs. Hole Range 3-6 inch P/N 70240 Weight: 9 lbs.
GMP 70220 LIFTER REEL THING 1 TON RT20 NEW
P/N 70220 Reel Lifter 3000 lbs. (1361kg) Requires min hole diameter of 1-3/4 inch Weight: 6 lbs. (2.7 kg)
This handy device makes your reel lifting, stacking and cable removal from a standing reel a breeze. Can be used on reels weighing up to 3,000 lbs. (PN 70220) Allows one person to do the work of several
To use the Reel Lifter, position a reel on its side so that one hole in the reel is facing upward. Place the lifter inside the flange and mechanically raise the lifter by the top ring. A toggle at the bottom of the lifter, now inside the reel, will swivel "open" allowing the entire reel to be lifted for stacking or to remove cable.
To remove the Reel lifter place the reel back on a flat surface and simply raise the lifter by the cylindrical body rather than the top ring. This will allow the toggle to remain "closed" and the entire lifter will come clear of the reel.
Reel Lifter 3000 lbs. Hole Range 2-4 inch P/N 70220 Weight: 6 lbs.
Reel Lifter 4500 lbs. Hole Range 3-6 inch P/N 70240 Weight: 9 lbs.
