GMP 80472 KIT L101 REEL TERM WIRE BRAKE
Available*
Item # 31110010
Model # 80472
$64.33
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Reels
Tools
Line Construction- Placing
Reels- Takeup- Drop- Carts
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GENERAL MACHINE PRODUCTS 80472 KIT L101 REEL TERM WIRE BRAKE NEW Perfect for paying out or re-reeling coils of jumper wire, distributing frame wire or our Modular Cordage - any small coil with a 6-1/2 in. (165 mm) nominal i.d.
Consists of two reel flanges mounted to a supporting arm and handle all cast from heat-treated aluminum alloy that is attached to a laminated oak base
The outer flange is readily removable by backing off a large wing nut. This also allows for the flange position to compensate for varying width coils from 3-3/8 in. to 4-7/8. (86-124 mm)
Three flat springs on the reel hub grip the coil inside diameter which should measure 6-1/2 in. nominal x 14 in. maximum outside diameter (165 x 355 mm)
Available in two brake configurations to prevent excessive wire over-run
The back of the support arm has tapped holes for bolt-on mounting to a vehicle or c.o. frame member
Overall dimensions: 21 in. high x 16 in. wide x 9 in. deep (533 x 406 x 229 mm)
The L1 style P/N 80470 has an adjustable drag brake that applies a fixed amount of friction on the flange. To compensate for wear the resistance applied is adjustable using a 7/16 in. socket and a flat blade screwdriver.

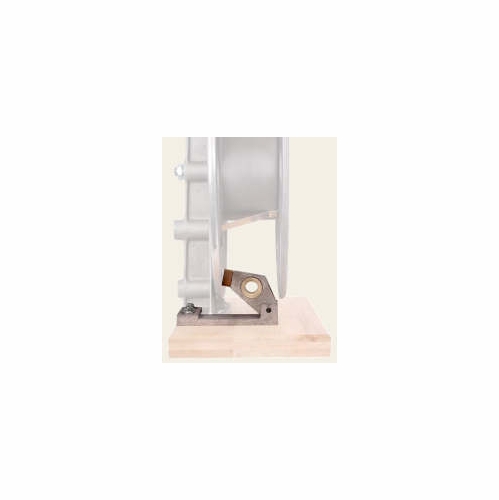

The L2 style P/N 80471 is equipped instead with an automatic disc brake that allows the reel to rotate freely when it senses tension as the wire is pulled off the reel and is automatically applied to stop reel rotation when the wire is relaxed. This brake assembly is also available as a retro-fit kit (L101 P/N/ 80472) to convert L1 reels into L2 style.
Terminal Wire Reel Ordering Information P/N Description Weight
--------------------------------------------------------------------------------
80470 Terminal Wire Reel L1 18 lbs. (8.16 kgs) 80471 Terminal Reel L2 w/Brake 19 lbs. (8.62 kgs) 80472 L101 Disc Brake Retro-fit Kit contains all components needed to substitute the L101 disc brake assembly in place of the drag brake including instructions 1 lb. (.45 kg) 05431 Disc Brake Shoe 25792 Drag Brake Repair Kit Consists of replacement brake shoe and spare hardware used in assembly .5 lb. (.23 kg)
