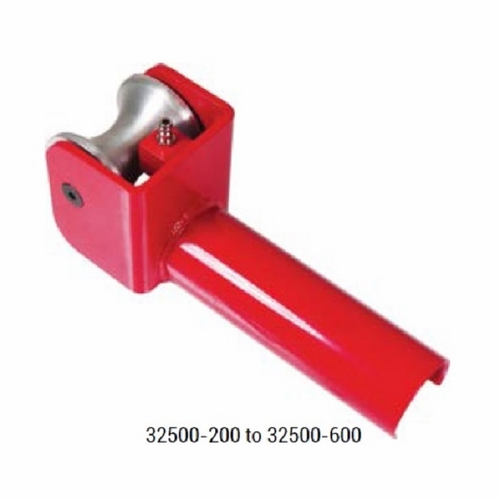

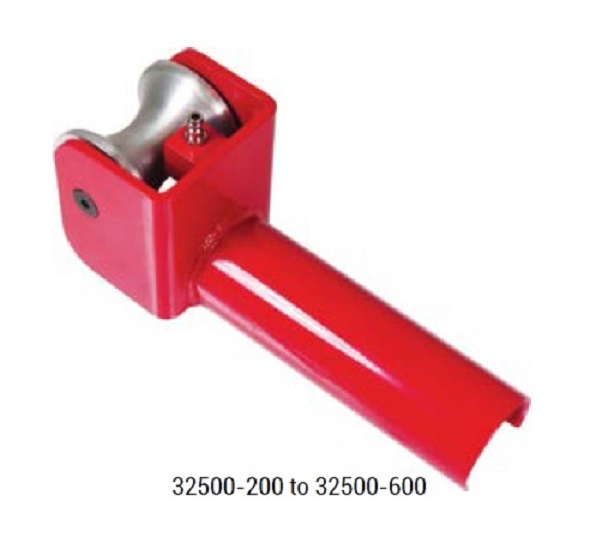

DCD 32500-480 Duct Entry Guide 4 inch Duct Sch. 80
DCD DCD 32500-480 Duct Entry Guide 4 inch Duct Sch. 80
Part # 32500-480 Description Duct Entry Guide 4 inch Duct Sch. 80
3:1 Safe Working Load 6,000 lb Duct Diameter 4 inch Schedule 80 A 11-1/2 inch Weight 17.0 lb Spare Sheave 32900-407
The Duct Entry Guide is unique for two reasons. First, it has an extra long tube section that goes inside the duct (see dimension A in the diagram on the right) for greater stability. Second, because of the built-in spray nozzle for the DCD Tube-LubeŽ 326 application, there is one half of a quick-disconnect coupling attached to a spray nozzle that will direct the lubricant right onto the cable as it is fed into the ducting. This is a unique feature for a unique lubricant.
DCD DCD 32500-480 Duct Entry Guide 4 inch Duct Sch. 80
Part # 32500-480 Description Duct Entry Guide 4 inch Duct Sch. 80
3:1 Safe Working Load 6,000 lb Duct Diameter 4 inch Schedule 80 A 11-1/2 inch Weight 17.0 lb Spare Sheave 32900-407
The Duct Entry Guide is unique for two reasons. First, it has an extra long tube section that goes inside the duct (see dimension A in the diagram on the right) for greater stability. Second, because of the built-in spray nozzle for the DCD Tube-LubeŽ 326 application, there is one half of a quick-disconnect coupling attached to a spray nozzle that will direct the lubricant right onto the cable as it is fed into the ducting. This is a unique feature for a unique lubricant.
