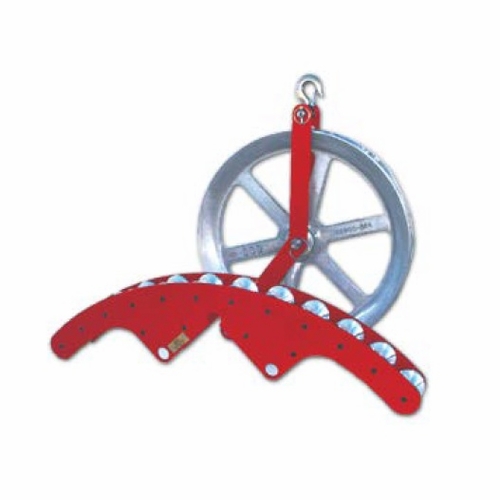

DCD 32220-312 Quadrant - Double Hanger 3 inch Diameter x 12 Sheaves
Available*
Item # 30509462
Model # 32220-312
$2,777.60
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Quadrant
Tools
Line Construction- Placing
Blocks-Placing-Prelashing- Overlashing
DCD Design And Manufacturing Ltd
Corner Blocks-Lip Rollers-90 degree Blocks
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

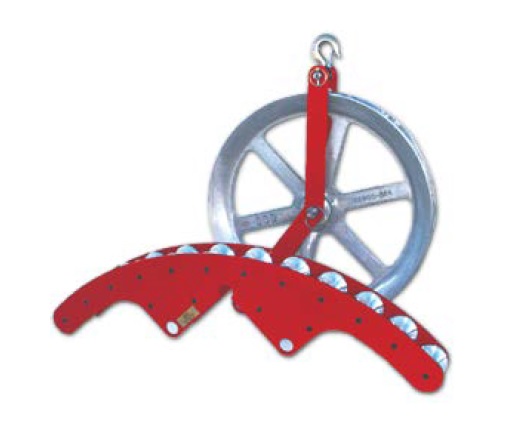

DCD 32220-312 Quadrant - Double Hanger 3 inch Diameter x 12 Sheaves
DCD 32220-312 Quadrant - Double Hanger 3 inch Diameter x 12 Sheaves
Part # 32220-312 Description Fiber Optic Quadrant - Double Hanger 3 inch Diameter x 12 Sheaves
For pulling fiber optic cable, DCD has a special series of sheaves and quadrants that will allow the maximum possible bend radius for the application. All the sheaves are aluminum while the quadrant side plates are 3/16 inch inch steel, giving the best combination of light weight and strength. The Fiber Optic Quadrant has twelve rollers set on a 26 inch radius giving the cable a minimum 26-3/4 inch inside bend radius. The one piece Fiber Optic Sheave is sized to fit through a 24 inch manhole and both the sheave and the quadrant can be used in the DCD Manhole Brace (32700 series). The hanger arms also separate easily to allow insertion of the sheave or quadrant in the middle of the pull.
DCD 32220-312 Quadrant - Double Hanger 3 inch Diameter x 12 Sheaves
Part # 32220-312 Description Fiber Optic Quadrant - Double Hanger 3 inch Diameter x 12 Sheaves
For pulling fiber optic cable, DCD has a special series of sheaves and quadrants that will allow the maximum possible bend radius for the application. All the sheaves are aluminum while the quadrant side plates are 3/16 inch inch steel, giving the best combination of light weight and strength. The Fiber Optic Quadrant has twelve rollers set on a 26 inch radius giving the cable a minimum 26-3/4 inch inside bend radius. The one piece Fiber Optic Sheave is sized to fit through a 24 inch manhole and both the sheave and the quadrant can be used in the DCD Manhole Brace (32700 series). The hanger arms also separate easily to allow insertion of the sheave or quadrant in the middle of the pull.
