DCD 42700-010E Fiber Cable Puller, Electric, with hitch base
Available*
Item # 30509312
Model # 42700-010E
$10,067.63
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tuggers
Tools
Line Construction- Placing
Puller- Tuggers- Winches
DCD Design And Manufacturing Ltd
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

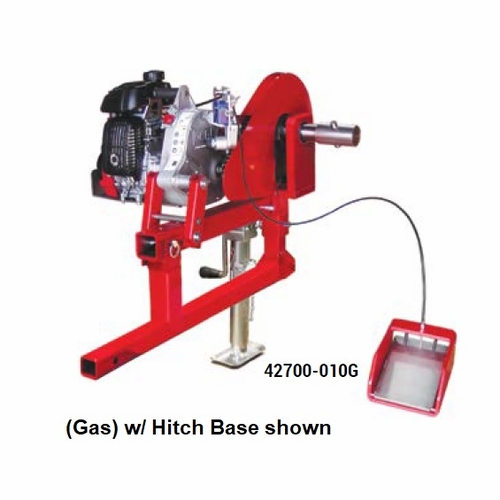

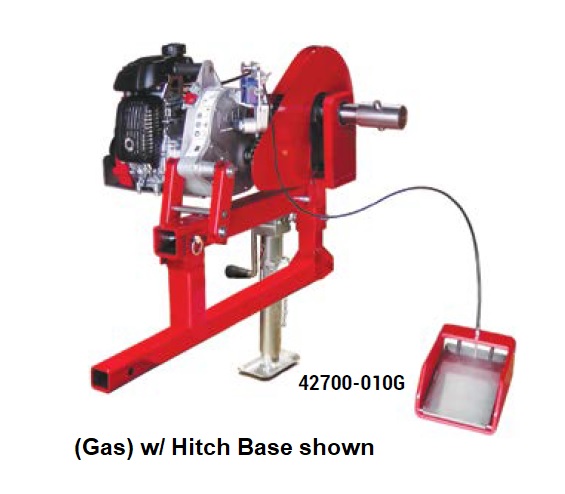

DCD 42700-010E Fiber Cable Puller, Electric, with hitch base
DCD 42700-010E Fiber Cable Puller, Electric, with hitch base
Part # 42700-010E Description Fiber Cable Puller (Electric) w/ Hitch Base Weight 186 lb
Engine AC Electric Baldor TEFC 60 Hz Power Requirement 110V 10 AMP Work Cycle 75% Work Cycle ( 15 minutes per hour recommended cool down period.) Clutch N/A (Direct Drive) Maximum Pulling Force 2-1/4 inch Capstan 1,800 lb Maximum Pulling Force 7-1/4 inch Capstan 2,200 lb Maximum Pulling Force 30 inch Capstan 675 lb Maximum Pulling Force 42 inch Capstan 500 lb
Maximum Pulling Speed 2-1/4 inch Capstan 40 ft per minute Maximum Pulling Speed 7-1/4 inch Capstan 19 ft per minute Maximum Pulling Speed 30 inch Capstan 64 ft per minute Maximum Pulling Speed 42 inch Capstan 85 ft per minute
The Fiber Cable Puller is a simple, easy to use cable puller that is designed to accommodate industry standard sheaves of 7-1/4 inch, 30", or 42 inch dia. specifically intended for use with fiber optic cables requiring a minimum bend radius.
The unit is powered by the TUF-Lugger™ Lite Lifting - Gas (41000-400) or by the TUF-Lugger™ Lite Lifting - Electric (41000-500), providing a gas or electric option as a simpler, lighter, less costly option than a typical hydraulic puller.
Best of all, the Fiber Cable Puller is assembled using the Vertical Pull Support (42200-050) and the TUF-Lugger™ Lite (41000 series), which includes the standard capstan. Simply dismount the winch and install the standard capstan and the winch can be used as a stand-alone item, which comes with a 2-1/4 inch capstan providing a 2,200 lb pulling force.
DCD 42700-010E Fiber Cable Puller, Electric, with hitch base
Part # 42700-010E Description Fiber Cable Puller (Electric) w/ Hitch Base Weight 186 lb
Engine AC Electric Baldor TEFC 60 Hz Power Requirement 110V 10 AMP Work Cycle 75% Work Cycle ( 15 minutes per hour recommended cool down period.) Clutch N/A (Direct Drive) Maximum Pulling Force 2-1/4 inch Capstan 1,800 lb Maximum Pulling Force 7-1/4 inch Capstan 2,200 lb Maximum Pulling Force 30 inch Capstan 675 lb Maximum Pulling Force 42 inch Capstan 500 lb
Maximum Pulling Speed 2-1/4 inch Capstan 40 ft per minute Maximum Pulling Speed 7-1/4 inch Capstan 19 ft per minute Maximum Pulling Speed 30 inch Capstan 64 ft per minute Maximum Pulling Speed 42 inch Capstan 85 ft per minute
The Fiber Cable Puller is a simple, easy to use cable puller that is designed to accommodate industry standard sheaves of 7-1/4 inch, 30", or 42 inch dia. specifically intended for use with fiber optic cables requiring a minimum bend radius.
The unit is powered by the TUF-Lugger™ Lite Lifting - Gas (41000-400) or by the TUF-Lugger™ Lite Lifting - Electric (41000-500), providing a gas or electric option as a simpler, lighter, less costly option than a typical hydraulic puller.
Best of all, the Fiber Cable Puller is assembled using the Vertical Pull Support (42200-050) and the TUF-Lugger™ Lite (41000 series), which includes the standard capstan. Simply dismount the winch and install the standard capstan and the winch can be used as a stand-alone item, which comes with a 2-1/4 inch capstan providing a 2,200 lb pulling force.
