DCD 00925-060 Swivel Grip 600 MCM
DCD 00925-060 Swivel Grip 600 MCM

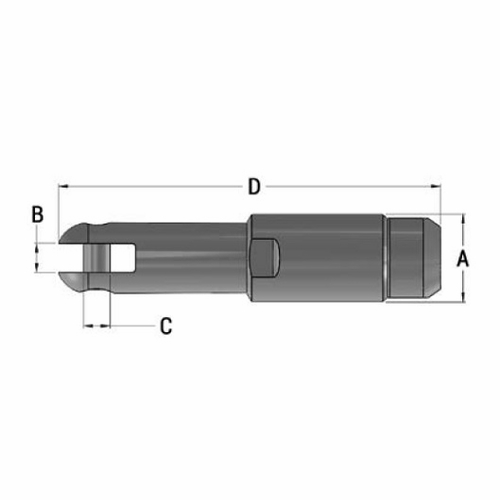

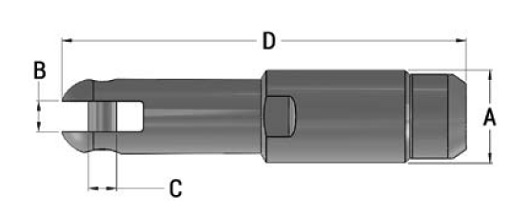

Part # 00925-060 Description Swivel Grip pulling eye Maximum Cable Size 600 MCM Maximum Core Diameter 0.91 inch 23.1 mm A 1 7/8 inch 48 mm B 11/16 inch 17.4 mm C 5/8 inch 15.9 mm D 7-1/8 inch 181 mm Weight 3.10 lb 1.41 kg
Swivel-Grip Components include: Threaded Cone Nut 24006-060 Tapered Insert 24005-035 Body 00926-035 Fits Bridle Sling 1/4 and 3/8 inch
The Swivel-Grip™ pulling eye is reusable and has a built in swivel. It is constructed with all the features of the DCD Line Swivel (00505 series). The clevis head will attach directly onto a bridle sling or other pulling rope.
DCD 00925-060 Swivel Grip 600 MCM
Part # 00925-060 Description Swivel Grip pulling eye Maximum Cable Size 600 MCM Maximum Core Diameter 0.91 inch 23.1 mm A 1 7/8 inch 48 mm B 11/16 inch 17.4 mm C 5/8 inch 15.9 mm D 7-1/8 inch 181 mm Weight 3.10 lb 1.41 kg
Swivel-Grip Components include: Threaded Cone Nut 24006-060 Tapered Insert 24005-035 Body 00926-035 Fits Bridle Sling 1/4 and 3/8 inch
The Swivel-Grip™ pulling eye is reusable and has a built in swivel. It is constructed with all the features of the DCD Line Swivel (00505 series). The clevis head will attach directly onto a bridle sling or other pulling rope.
