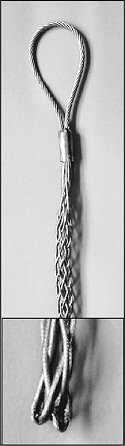

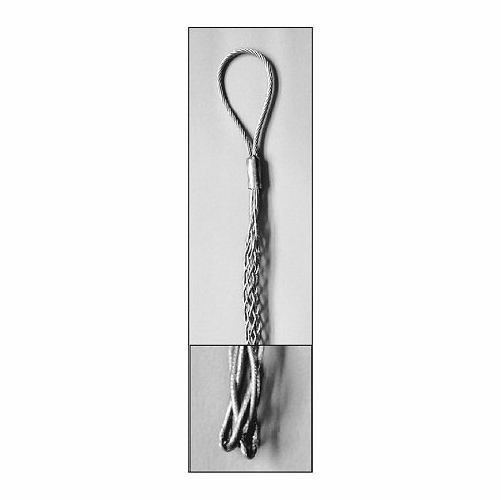

GMP 70663 GRIP PULLING 1 WEAVE 0.98-1.50
Available*
Item # 30100515
Model # 70663
$76.45
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Grips
Tools
Line Construction- Placing
Grips- Strand- Lashing Wire
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GENERAL MACHINE PRODUCTS 70663 GRIP PULLING 1 WEAVE 0.98-1.50 NEW Flexible Pulling Grips
Pulling Grips are indispensable in many different cable pulling applications. Manufactured from high-tensile, galvanized steel wire that is evenly woven in a single, double or triple wire weave according to pulling tension requirements, grips are slipped over the outside sheath of a cable - when pulling tension is applied, the grip contracts applying its gripping force to the outside of
the cable.
Grips are slipped over the outside sheath of a cable - when pulling tension is applied, the grip contracts applying its gripping force to the outside of the cable Single Weave-Single Flexible Eye
P/N Diameter Range Min. Breaking Strength Grip Length
--------------------------------------------------------------------------------
70660 0.24 to 0.51in. (6 to 13 mm) 1984 lbs. (900 kg) 11.81 in. (300 mm) 70661 0.47 to 0.75 in. (12 to 19 mm) 3505 lbs. (1590 kg) 21.65 in. (550 mm) 70662 0.75 to 0.98 in. (19 to 25 mm) 4674 lbs. (2120 kg) 23.62 in. (600 mm) 70663 0.98 to 1.5 in. (25 to 38 mm) 5644 lbs. (2560 kg) 27.56 in. (700 mm)
Double Weave-Single Flexible Eye
P/N Diameter Range Min. Breaking Strength Grip Length
--------------------------------------------------------------------------------
70670 0.39 to 0.79 in. (10 to 20 mm) 4101 lbs. (1860 kg) 23.62 in. (600 mm) 70671 0.79 to 1.18 in. (20 to 30 mm) 4974 lbs. (2256 kg) 23.62 in. (600 mm) 70672 1.18 to 1.57 in. (30 to 40 mm) 8148 lbs. (3696 kg) 23.62 in. (600 mm) 70673 1.57 to 1.97 in. (40 to 50 mm) 12103 lbs. (5490 kg) 23.62 in.(600 mm) 70674 1.97 to 2.56 in. (50 to 65 mm) 12103 lbs. (5490 kg) 23.62 in. (600 mm) 70675 2.56 to 3.15 in. (65 to 80 mm) 16138 lbs. (7320 kg) 23.62 in. (600 mm) 70676 3.15 to 3.74 in. (80 to 95 mm) 16138 lbs. (7320 kg) 23.62 in.(600 mm) 70677 3.74 to 4.33 in. (95 to 110 mm) 23398 lbs. (10613 kg) 35.43 in. (900 mm)
Triple Weave-Single Flexible Eye with Shoulders
P/N Diameter Range Min. Breaking Strength Grip Length
--------------------------------------------------------------------------------
70680 0.24 to 0.51 in. (6 to 13 mm) 4960 lbs. (2250 kg) 25.59 in. (650 mm) 70681 0.47 to 0.75 in. (12 to 19 mm) 7452 lbs. (3380 kg) 32.48 in. (825 mm) 70682 0.75 to 0.98 in. (19 to 25 mm) 12214 lbs. (5540 kg) 40.35 in. (1025mm) 70683 0.98 to 1.26 in. (25 to 32 mm) 21054 lbs. (9550 kg) 51.18 in. (1300 mm) 70684 1.26 to 1.50 in. (32 to 38 mm) 25256 lbs. (11456 kg) 55.12 in. (1400 mm)
Grips are slipped over the outside sheath of a cable - when pulling tension is applied, the grip contracts applying its gripping force to the outside of the cable Single Weave-Single Flexible Eye
P/N Diameter Range Min. Breaking Strength Grip Length
--------------------------------------------------------------------------------
70660 0.24 to 0.51in. (6 to 13 mm) 1984 lbs. (900 kg) 11.81 in. (300 mm) 70661 0.47 to 0.75 in. (12 to 19 mm) 3505 lbs. (1590 kg) 21.65 in. (550 mm) 70662 0.75 to 0.98 in. (19 to 25 mm) 4674 lbs. (2120 kg) 23.62 in. (600 mm) 70663 0.98 to 1.5 in. (25 to 38 mm) 5644 lbs. (2560 kg) 27.56 in. (700 mm)
Double Weave-Single Flexible Eye
P/N Diameter Range Min. Breaking Strength Grip Length
--------------------------------------------------------------------------------
70670 0.39 to 0.79 in. (10 to 20 mm) 4101 lbs. (1860 kg) 23.62 in. (600 mm) 70671 0.79 to 1.18 in. (20 to 30 mm) 4974 lbs. (2256 kg) 23.62 in. (600 mm) 70672 1.18 to 1.57 in. (30 to 40 mm) 8148 lbs. (3696 kg) 23.62 in. (600 mm) 70673 1.57 to 1.97 in. (40 to 50 mm) 12103 lbs. (5490 kg) 23.62 in.(600 mm) 70674 1.97 to 2.56 in. (50 to 65 mm) 12103 lbs. (5490 kg) 23.62 in. (600 mm) 70675 2.56 to 3.15 in. (65 to 80 mm) 16138 lbs. (7320 kg) 23.62 in. (600 mm) 70676 3.15 to 3.74 in. (80 to 95 mm) 16138 lbs. (7320 kg) 23.62 in.(600 mm) 70677 3.74 to 4.33 in. (95 to 110 mm) 23398 lbs. (10613 kg) 35.43 in. (900 mm)
Triple Weave-Single Flexible Eye with Shoulders
P/N Diameter Range Min. Breaking Strength Grip Length
--------------------------------------------------------------------------------
70680 0.24 to 0.51 in. (6 to 13 mm) 4960 lbs. (2250 kg) 25.59 in. (650 mm) 70681 0.47 to 0.75 in. (12 to 19 mm) 7452 lbs. (3380 kg) 32.48 in. (825 mm) 70682 0.75 to 0.98 in. (19 to 25 mm) 12214 lbs. (5540 kg) 40.35 in. (1025mm) 70683 0.98 to 1.26 in. (25 to 32 mm) 21054 lbs. (9550 kg) 51.18 in. (1300 mm) 70684 1.26 to 1.50 in. (32 to 38 mm) 25256 lbs. (11456 kg) 55.12 in. (1400 mm)
