GMP 70045 SHACKLE FIBER OPTIC CABLE FOR QUADRANT BLOCKS
Available*
Item # 30049970
Model # 70045
$847.71
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Shackle
Tools
Line Construction- Placing
Grips- Strand- Lashing Wire
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

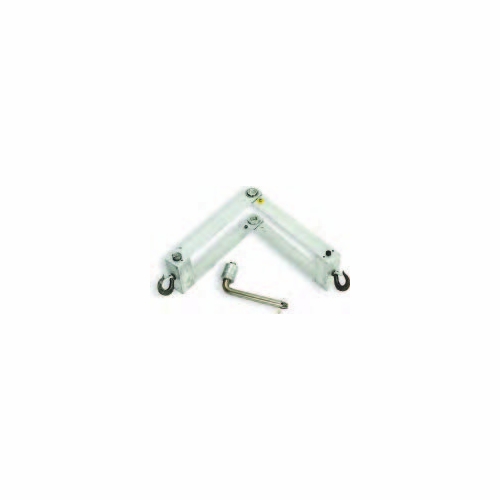

GENERAL MACHINE PRODUCTS 70045 SHACKLE FIBER OPTIC CABLE FOR QUADRANT BLOCKS NEW
The Fiber Optic Shackle when secured to the pulling irons, will allow you to mount up to two Fiber Optic Quadrants or a single Fiber Optic Split Sheave for ease of cable placement.
This lightweight, all aluminum shackle provides a maximum load strength of 3000 lbs. (1360 kgs)
The shackle is made of two U shaped members, each of which has a separate swiveling safety hook on one end. Both members are joined by a special bushing. An L shaped locking pin (included) 15/16 in. (33 mm) diameter fits through this bushing to support both quadrants or sheaves.
To change, add or remove a quadrant or sheave, all you have to do is remove the locking pin; the shackle stays together
A knurled knob is attached to the shackle by a wire rope that lets you open it on one side for easy removal, even when there is a continuous section of cable running through the shackle
Two self storing spacers come with each shackle to securely hold a single quadrant or sheave in place. When you want to use more than one quadrant, you can stow the spacers on one end of the pin using a handy built in bearing detent.
There's even a stop pin built into each member to keep the shackle from closing completely in either direction
Fiber Optic Shackle P/N 70045 Weight: 30 lbs. (13 kgs)
The shackle is made of two U shaped members, each of which has a separate swiveling safety hook on one end. Both members are joined by a special bushing. An L shaped locking pin (included) 15/16 in. (33 mm) diameter fits through this bushing to support both quadrants or sheaves.
To change, add or remove a quadrant or sheave, all you have to do is remove the locking pin; the shackle stays together
A knurled knob is attached to the shackle by a wire rope that lets you open it on one side for easy removal, even when there is a continuous section of cable running through the shackle
Two self storing spacers come with each shackle to securely hold a single quadrant or sheave in place. When you want to use more than one quadrant, you can stow the spacers on one end of the pin using a handy built in bearing detent.
There's even a stop pin built into each member to keep the shackle from closing completely in either direction
Fiber Optic Shackle P/N 70045 Weight: 30 lbs. (13 kgs)
