KLEIN 1659-5AT Chicago Grip - foot foot Type B foot foot Strand Puller 47120-9

KLEIN 1659-5AT ChicagoŽ Grip - ''Type B'' Strand Puller 47120-9 NEW Forged-steel grips introduction Klein grips offer total wire and cable-pulling capability for the power utility, telecommunications and many other industries. Klein "Chicago" and "Haven" grips are widely used in the power, communications and general construction fields to pull wire and cable, and to maintain temporary tension until it can be permanently terminated. These grips are to be used for pulling up lines to tension only and are not to be used as anchors. Klein has designed and built standard and custom grips of outstanding quality since 1885. They are proven dependable. Our complete line includes a type for and size for every application. There is a Klein grip for virtually every type of wire and cable, including: Extra-high-strength cables, messenger, guy strand and conductors. Bare wire. Large-diameter conductors. Bare A.C.S.R., aluminum and stranded-copper cables. PVC-covered conductors. Weatherproof wire. Telephone cable. Klein "Chicago" Grips have locking loop handles, standard on most grips and available on hot-line grips by ordering with spring. The locking feature allows the jaws to be held in an open position for easier placement on wire or cable. Saves substantial time, makes grip postioning easier than wedge or bolt-on designs. To lock, open jaws and fold loop handle toward side plates. How to select a proper grip. Care should be tqken in choosing grips to assure correct handling of wire and cable. Three basic factors determine the selection of the proper grip for each specific application: 1. Type of wire or cable. 2. Outside diameter of wire or cable 3. Maximum safe load required.

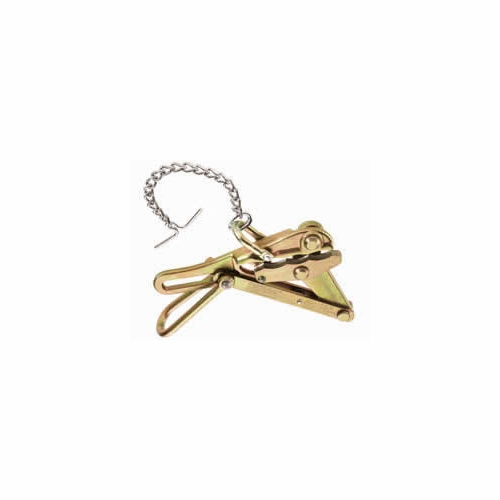

"Chicago" Grip Cat. No. 1659-5AT. "Type B" strand puller. This grip is similar to Bell-System Type B strand puller. Designed to pull 1/4 inch figure-8 telephone cable. Serpentine grooves grip insulation on strand, preventing slippage. Equipped with chain, toggle and shackle. Made for cable size .20 to .37. Maximum safe load 5000 pounds.
