GMP 70022 BLOCK CABLE FIBER OPTIC STRAND-LOCK
Available*
Item # 29735005
Model # 70022
$209.93
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blocks
Tools
Line Construction- Placing
Blocks-Placing-Prelashing- Overlashing
GMP General Machine Products
Stringing Block-Line Block-Prelashing Block
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

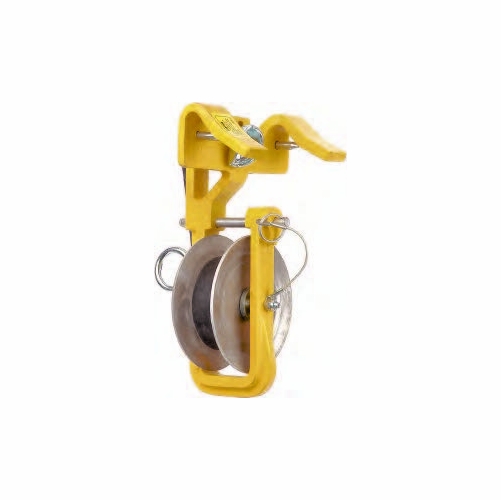

GENERAL MACHINE PRODUCTS 70022 BLOCK CABLE FIBER OPTIC STRAND-LOCK NEW This heavy duty fiber block is used for supporting a single fiber optic cable up to one inch dia. onto a maximum strand size of 3/8 in. (25 mm) prior to lashing. Particularly recommended where a higher level of security is required such as crossing roadways or waterways. Always be certain to use enough blocks spaced close together to avoid any creation of cable sag.
This block features the lever operated cam that locks the block in position while pulling, then automatically releases during lashing
The frame is constructed from a heat treated aluminum alloy
Oilite bearings on the sheave, and steel inserts on the underside of each strand hook allow the block to slide easily on strand for positioning
A removable pin keeps the cable from jumping out of the sheave. Pin is tethered to the block to prevent losing it.
The frame hooks can accommodate strand from 1/4 in. to 3/8 in. (6-10m) diameter Weight: 3 lbs. 12 oz.
Fiber Optic Strand Lock Cable Block P/N 70022 Weight: 3 lbs. 12 oz. (1.7 kg)
This block features the lever operated cam that locks the block in position while pulling, then automatically releases during lashing
The frame is constructed from a heat treated aluminum alloy
Oilite bearings on the sheave, and steel inserts on the underside of each strand hook allow the block to slide easily on strand for positioning
A removable pin keeps the cable from jumping out of the sheave. Pin is tethered to the block to prevent losing it.
The frame hooks can accommodate strand from 1/4 in. to 3/8 in. (6-10m) diameter Weight: 3 lbs. 12 oz.
Fiber Optic Strand Lock Cable Block P/N 70022 Weight: 3 lbs. 12 oz. (1.7 kg)
