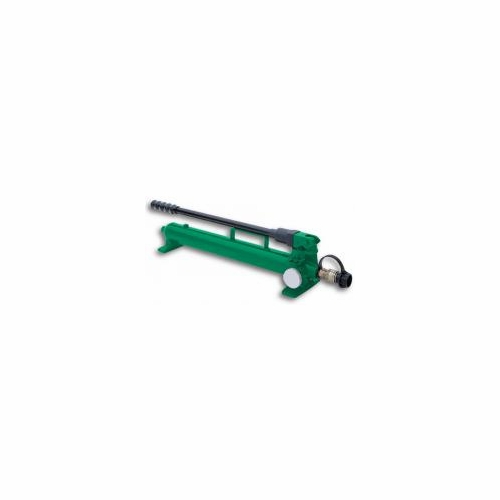

Greenlee 7475H Hand Hydraulic Pump 50074750/ 783310074755 (New)
Description:
Two-Speed Hydraulic Pump, Ideal For Use With Remote Cutting And Crimping Tools
Compact And Lightweight - Easy To Move Around Jobsites
Solid Base With Wide Legs Provides For Good Stability During Operation
Built-In Carrying Handle
Large, Easy-To-Grasp, Retraction Wheel
Equipped With 3/8" Female Screw-Type Hydraulic Coupler
0.82 Cu In/Stroke 1St Stage Oil Volume (200 Psi)
0.16 Cu In/Stroke 2Nd Stage Oil Volume (10,000 Psi)
Specifications:
Application : For Use With Remote Cutting And Crimping Tools
Coupler Size : 3/8 In
Height : 5-1/2 In (140.000 Mm)
Length : 25.000 In (635.000 Mm) (Including Coupler)
Number Of Stages : 2
Oil Volume Utilization : 0.82 Cu-In/Stroke For 1St Stage Oil Volume (200 Psi), 0.16 Cu-In/Stroke For 2Nd Stage Oil Volume (10,000 Psi)
Pressure Rating : 10000 Psi (700 Bar)
Replacement Part : 07829 Seal Kit
Type : Hand-Operated
Useable Oil Capacity : 0.750 Quart (0.740 Ltr)
Weight : 18.000 Lb (8.200 Kg)
Width : 5-5/8 In (143.000 Mm)
Cat No: 7475H Upc No: 783310074755
