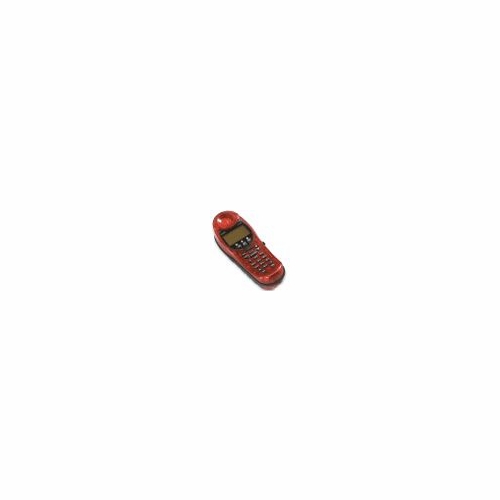

HARRIS TS1200 ADSL/POTS TEST SET 25800-019

FLUKE/HARRIS DRACON TS1200 ADSL/POTS TEST SET 25800-019 NEW The recent growth of ADSL services within the telecommunications industry has produced a need for test equipment that can handle the trouble tickets on both POTS and ADSL lines. The TS1200 ADSL/POTS test set from FLUKE/HARRIS DRACON does just that. It offers the very best in DataSafe™ POTS testing, combined with the ability to test and troubleshoot ADSL lines – all in a truly rugged case. The TS1200 test set allows technicians to test ADSL while talking on the POTS frequencies of a line. It also allows off-hook testing of POTS lines without disrupting data services. As the result, trouble tickets are cleared rather than created. Plus, because the TS1200 Test Set can test both POTS and ADSL, it reduces the need for separate handheld testers. Easy-to-use menu screens, including a “Home” button that allows access to all major testing modes and configurations. This makes the TS1200 test set the perfect tester for the inexperienced technician. Plus, you can validate service activation, isolate failures between the customer premises and the service provider, and measure throughput, line capacity, and other parameters – all in one test. The backlit LCD screen displays 8 lines of text and can plot a bits-per-bin graph of test results. Plus you can save up to five results to download and print from a PC. You can do an “auto” test, which takes a snapshot of the ADSL line, or you can do a “manual” test, which allows you to monitor line conditions for up to 90 minutes. On-screen icons show volume level, battery and charging levels, polarity, and Speaker or Mute button activity. An Alarm Display shows loss of signal, frame, power, or margin at the near or far end of the line. With high-voltage protection, DropSafe™ ruggedness, RainSafe™ usability, and all the standard features of FLUKE/HARRIS DRACON butt-in test sets – like PBX Pause, Speed Dial, Last Number Redial, and Tone and Pulse dialing – the TS1200 test set is the essential piece of testing equipment for the telephone tech in the world of ADSL. The TS1200 also can be outfitted with a load coil detector. Which is perfect for central office installation and verification.

Features Ability to simultaneously test ADSL services and verify POTS lines DataSafe Technology allows for off-hook POTS verification without disrupting data services DropSafe reliability withstands 12 foot drop test RainSafe protection against unfavorable field conditions Save/Download/Print 5 results ADSL verification functions including:. Attainable bit rate . Channel bit rate . Maximum line capacity . Attenuation . Output power . Noise Margin Two ways to test ADSL: an automatic snapshot test for quick results, and a manual monitor test for up to 90 minutes of continuous testing Data Detection, Data Lockout, and Data Lockout Override in Talk mode Digital readout menu screens, including a Home Button that allows access to all major testing modes and configuration functions from one screen High voltage protection Speed Dial button storage of 10 entries of 23 digits each Last Number Redial Field upgradable firmware/software Built-in speakerphone for hands-free use 4 field replaceable AA Alkaline batteries or 4 rechargeable NiCd batteries AC adapter and 12V DC adapter for recharging NiCd batteries Modem Chip Set Alcatel 20140 DMT Chipset Supports ANSI T1.423 Issue 2, ITU G.DMT, and G.LITE standards Able to synchronize with any Alcatelcompatible ADSL DSLAM Rain and moisture resistant Designed to exceed 12 foot drop test Battery life: NiCd 8 to 10 hours, fully charged; Alkaline (AA) 10 to 12 hours,
Charge time 4 to 5 hours Data Detection and Lockout Capability Twisted pair data services including: T1, E1, ISDN, PRI, ISDN BRI, HDSL, SW56, ADSL, and SDSLl Length: 10 inches x Width: 3-3/4 inches x Height: 4-1/4 inches, Weight: 2-1/2 lbs

Warranty 18 months against hardware defects

Part Number Description 25800-019 TS1200 ADSL/POTS Test Set Outside Plant without load coil 25800-119 TS1200 ADSL/POTS Test Set for Outside Plant with load coil 25800-124 TS1200 ADSL/POTS Central Office, includes CO combi cord
