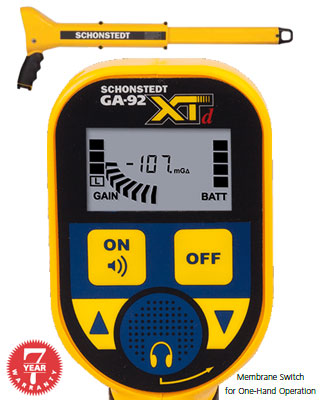

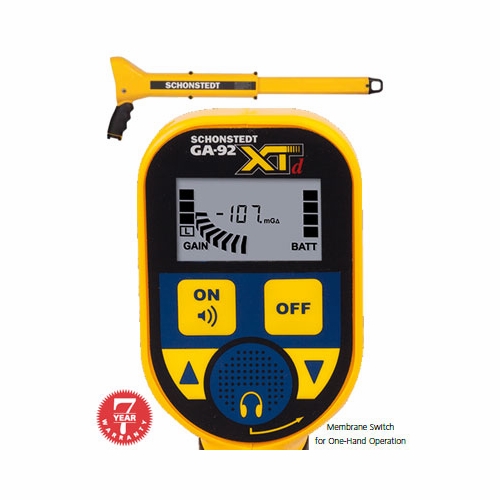

SCHONSTEDT GA-92xtd MAGNETIC LOCATOR WITH HOLSTER AND CASE
Available*
Item # 22359800
Model # GA-92XTd
$1,105.64
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Locator
Test Equipment
Locators Cable Path-Depth
Locators- Path-Sheath Fault
Schonstedt Instrument Company
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
SCHONSTEDT GA-92xtd MAGNETIC LOCATOR WITH HOLSTER AND CASE NEW
When you have your hands full on the job site, carry the Schonstedt XT on your hip. The XT extends for greater sensitivity and retracts for easier carrying.
One hand operation makes finding faster, providing both audio and visual (XTd model) indication of ferrous objects up to 16 feet underground.
Includes:
Magnetic locator (GA-92XTd) 1 9V lithium battery Holster (XT30000) Hard carrying case (XT50000)
Benefits One hand operation Operates in both retracted and extended modes Fingertip control of volume and sensitivity Quick change battery compartment Battery indicator
Features Manufacturers Seven Year Warranty Digital readout and expanding bar graph displays signal strength and polarity Continuous Gain control, with range indicated by a 4-segment LCD at each quarter turn Piezoelectric speaker 24-Hours operational life (intermittent usage) Lithium batteries provide twice the life of alkaline, and have a 10-year shelf life. 4-Segment BATT LCD monitors battery charge Lightweight, easy-to-use-design reduces search time Modular construction; high performance components Patented HeliFlux sensors No response to aluminum, brass, or copper
Specifications
Output -Audio: Signal increases in frequency with gradient-field intensity. Idle frequency = 10 Hz -Visual: Expanding bar graphs indicate polarity (+ or -) and relative strength (GA-92XTd model only) Battery Life: 24 Hours (intermittent usage) Input Power: One lithium 9-volt battery Battery Check: 4-segment LCD BATT indicator Weight: Approximately 2.4 lb. (1.1 kg) Operating Temp: -13o to 140oF (-25o to 60oC) Overall Length: 26 in. (~6 cm) (when extended) 15.5 in (~9 cm) (when collapsed) Waterproof Length: 11.5 in. (~9 cm) (when extended) Nominal Sensor Spacing: 9.5 in. (~4 cm) Construction: 30% glass-filled, high impact ABS, .2 in (~ mm) wall thickness
When you have your hands full on the job site, carry the Schonstedt XT on your hip. The XT extends for greater sensitivity and retracts for easier carrying.
One hand operation makes finding faster, providing both audio and visual (XTd model) indication of ferrous objects up to 16 feet underground.
Includes:
Magnetic locator (GA-92XTd) 1 9V lithium battery Holster (XT30000) Hard carrying case (XT50000)
Benefits One hand operation Operates in both retracted and extended modes Fingertip control of volume and sensitivity Quick change battery compartment Battery indicator
Features Manufacturers Seven Year Warranty Digital readout and expanding bar graph displays signal strength and polarity Continuous Gain control, with range indicated by a 4-segment LCD at each quarter turn Piezoelectric speaker 24-Hours operational life (intermittent usage) Lithium batteries provide twice the life of alkaline, and have a 10-year shelf life. 4-Segment BATT LCD monitors battery charge Lightweight, easy-to-use-design reduces search time Modular construction; high performance components Patented HeliFlux sensors No response to aluminum, brass, or copper
Specifications
Output -Audio: Signal increases in frequency with gradient-field intensity. Idle frequency = 10 Hz -Visual: Expanding bar graphs indicate polarity (+ or -) and relative strength (GA-92XTd model only) Battery Life: 24 Hours (intermittent usage) Input Power: One lithium 9-volt battery Battery Check: 4-segment LCD BATT indicator Weight: Approximately 2.4 lb. (1.1 kg) Operating Temp: -13o to 140oF (-25o to 60oC) Overall Length: 26 in. (~6 cm) (when extended) 15.5 in (~9 cm) (when collapsed) Waterproof Length: 11.5 in. (~9 cm) (when extended) Nominal Sensor Spacing: 9.5 in. (~4 cm) Construction: 30% glass-filled, high impact ABS, .2 in (~ mm) wall thickness
