Product Description
Greenlee Pe2003 Pulse-Ground Fault Locator 50086669/783310086666 New
Description:
Identifies The Exact Location Of Even The Smallest Breaks In Insulation By "Pulsing" A High-Voltage Signal That Radiates Into The Earth At The Location Of The Faults. With The A-Frame Mounted Receiver, A Visual Analog Meter Points The Way To The Source Of The Voltage
Multiple Faults On A Single Wire Can Be Identified Indicating The Need To Replace Instead Of Repair
Extra-Long Test Leads Feature Heavy-Duty Alligator Clips For Use On Multiple Cable Types

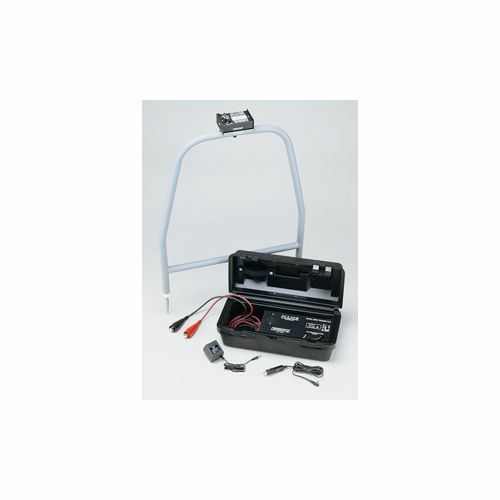

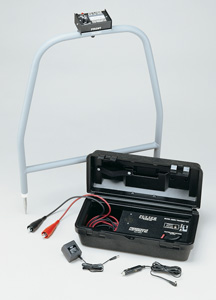

Includes A Rechargeable Transmitter, Receiver, A-Frame, Ground Stake,120V Charger And A 12V Dc (Cigarette Lighter) Adapter
Battery Operated (One 12V And One 9V Battery Are Included)
Molded Carrying Case Included
Specifications:
Battery :
Transmitter: (1) 12 V Rechargeable Battery
Receiver: (1) 9 V Battery
Battery Life :
Transmitter - 23 Hr Per Charge
Receiver - 200 Hr
Construction :
Transmitter-Aluminum Housing In Polyethylene Case
Receiver-Powder Coated Aluminum
Dimensions : 17.000 In (421.000 Mm) X 8.500 In (215.000 Mm) X 6.500 In X(160.000 Mm) Transmitter, 33.500 In (840.000 Mm) X 21.750 In (550.000 Mm) X 3.250 In (8.000 Mm) On A-Frame Receiver
Model : Pe2003
Replacement Part :
2000H Transmitter (Includesch1 And Ch2)
2000R Receiver
Af2 A-Frame
Ch1 Ac Charger
Ch2 Dc Charger
Transmitter Power : 2400 Vdc Peak
Voltage Protection : 240 Vac/400 Vdc
Weight : 12.500 Lb (5.700 Kg)
Cat No: Pe2003 Upc No: 783310086666
Vdv Instruments, Locators, Marker
Shipping Dimensions And Weights (2 Packages)
20"X10"X9" 9 Lbs
25"X3"X35" 4 LbsRead More
