Item# 21840001

LOOP TESTTest EquipmentSubscriber Loop TesterCombination3M
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

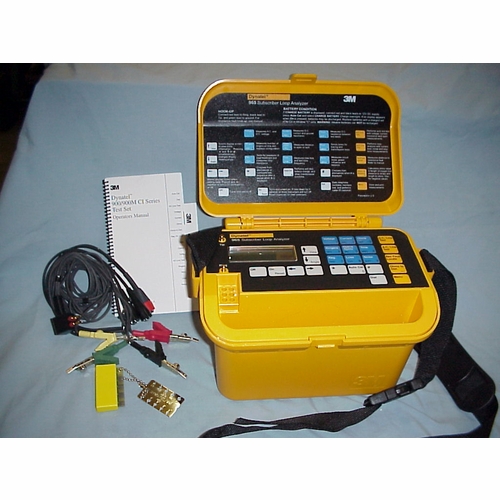

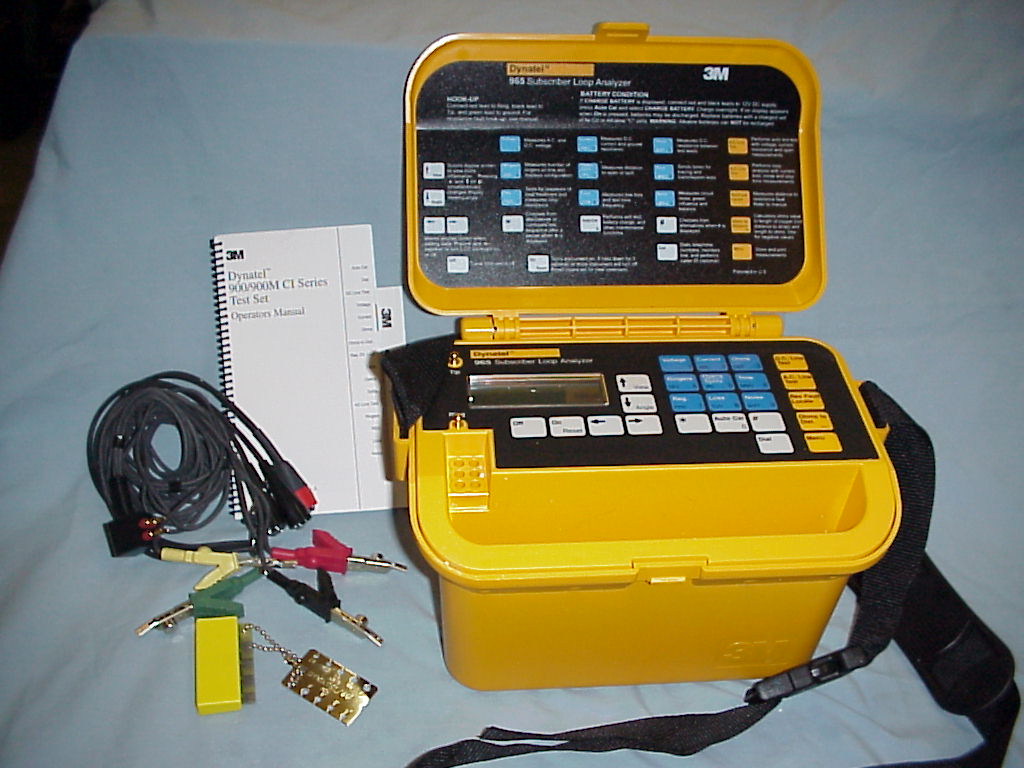

3M DYNATEL 965I SUBSCRIBER LOOP ANALYZER REPAIRED 965/I Wideband Subscriber Loop Analyzer The Dynatel 965/I Wideband Subscriber Loop Analyzer performs all the tests needed to analyze and troubleshoot subscriber loops, as well as provide line pre-qualification tests for basic rate ISDN service. In addition, the 965/I wideband loop analyzer uses combinations of these measurements in automatic functions called DC Line Test and AC Line Test. In these test sequences, the microprocessor of the 965/I loop analyzer interprets the results of the measurements and leads the operator These lightweight, highly-accurate weather-resistant units are used in international applications between the telephone exchange and the subscriber’s premises.

Specifications for the 965/I Subscriber Loop Tester Measures voltage 0-250 VAC, 0-350 VDC, current 0-110 mA DC, Resistance 0 to 100 Megohms, Opens 0-100k Feet, Noise metallic 10-50dBrnC, Noise to ground 40-100 dBrnC, Frequency counter 20-40,000 Hz, Ground resistance 0-500 ohms, Loop and CO resistance 0-5k ohms, Resistance fault locate 0 to 30 Megohms, Precision tones 404, 1004, 2804 Hz @ 600 ohms- 39,038 Hz 0 dBm @135 ohms-Tracing tone 577.5 Hz, DTMF, Operates on 5 C cell alkaline or rechargeable NiCd batteries. Typical battery life No backlight 40 hrs-NiCd, 120 hrs-alkaline- With backlight 12 hrs-NiCd, 35 hrs-alkaline, Temperature sensor 0°-140°F, Harmonic distortion <45 dB (up to 10th harmonic). Size H x W x D in. 7.0 x 10.5 x 7.5. with 5 ft Cord, weight lbs 7.5, Operating temperature 32° to 122°F, Relative humidity 0-100%, Operating altitude 0-15,000 ft. Storage altitude 0- 40,000 ft.

If items is in stock it will ship same day- Images may not be of the actual item being sold.
