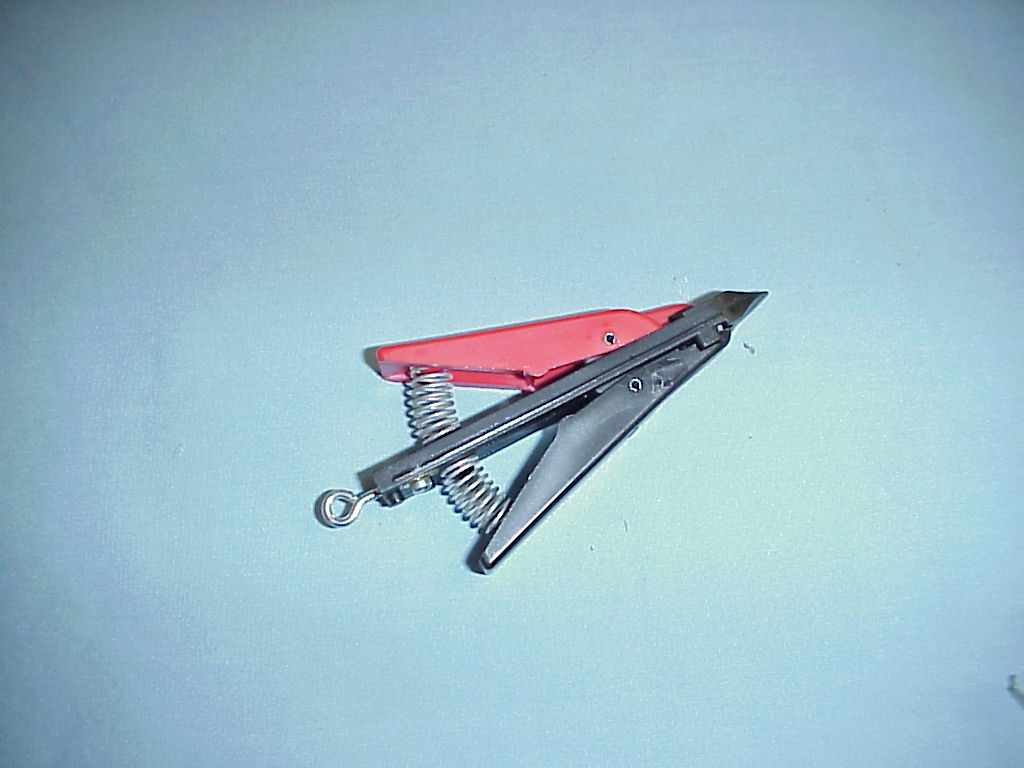

GENERAL MACHINE PRODUCTS B Transfer Clip Only
The transfer Cable Clip has separate dual needle point ssemblies. One jaw at each clip is colored red the other is black. This facilitates placing the clips on the cable pairs in proper polarity.
Each insert consists of a threaded cup with needles suitable for contacting pulp and strip paper insulated wires. The insert assemblies can be removed with a screwdriver for cleaning or replacement
B Transfer cord clips are designed to accomodate 26-22 AWG plastic, paper, and pulp insulated pairs
For 18 AWG wire, choose the C transfer cord
To engage a clip onto a cable pair, twist the pair slightly to spread the wires, place the knife edge of the clip in the opening, and push the clip forward until the wires meet the stops in the clip. Make certain that the proper polarity betwenn clips is maintined by matching colors when the clips are attached to the tip and ring sides of a cable pair.
p/n 082550 Single Pair Transfer Clip only for B Weight 2 oz
p/n 082554 Replacement Needle Cluster for B Weight 1 oz
p/n 082551 C Cable clip only Weight 2 oz
p/n 15401 Replacement 19 AWG Needle Cluster for C Weight 1 oz
