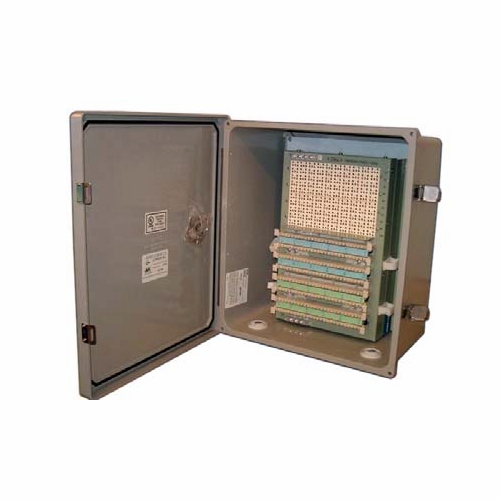

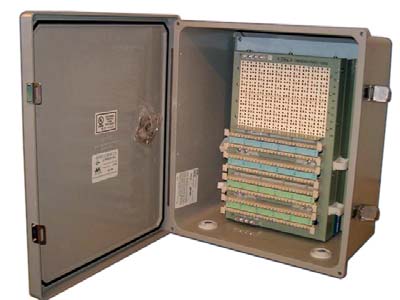

CIRCA 4100-110 100PR 110/110 NEMA 4X OUTDOOR RATED PLASTIC ENCLOSURE
Available*
Item # 12860000
Model # 904006
$686.52
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Terminals
Material and Supplies
Building Entrance Terminals- Pedestal
100 Pair
Circa Telecom USA Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
CIRCA TELECOM 4100-110 100PR 110/110 NEMA 4X OUTDOOR RATED PLASTIC ENCLOSURE NEW Features & Benefits
telecommunication protection for outdoor applications
high durability fibreglass construction especially well suited for corrosive and high humidity environments
protects from water, dust, dirt and oil
meets NEMA/EEMAC Type 4X standards
available in 6, 12, 25, 50 & 100 pair configurations
termination options include 66 Block and 110 Connection
external mounting screws not included
a lockable hinged cover allows for access by authorized personnel only
* Metal box upgrade available; empty boxes available
Applications:
PBX system protection between remote facilities
retrofit or new installation for residential applications
temporary outside plant cable installations in trailers or portables
Model No. Order No. Pair Input Output Dimensions Weight Count Count (H" x W" x D") (lbs) 4006-110 904000 6 110 block 110 block 13.81 x 11.85 x 6.5 12.0 4006-QC 904001 6 66 block 66 block 13.81 x 11.85 x 6.5 12.0 4012-110 904008 12 110 block 110 block 13.81 x 11.85 x 6.5 13.0 4012-QC 904002 12 66 block 66 block 13.81 x 11.85 x 6.5 13.0 4025-110 904003 25 110 block 110 block 13.81 x 11.85 x 6.5 13.5 4025-QC 904004 25 66 block 66 block 13.81 x 11.85 x 6.5 13.5 4050-110 904005 50 110 block 110 block 16.27 x 14.40 x 8.13 20.0 4050-QC 904007 50 66 block 66 block 16.27 x 14.40 x 8.13 20.0 4100-110 904006 100 110 block 110 block 16.27 x 14.40 x 8.13 23.0
Model No. Order No. Pair Input Output Dimensions Weight Count Count (H" x W" x D") (lbs) 4006-110 904000 6 110 block 110 block 13.81 x 11.85 x 6.5 12.0 4006-QC 904001 6 66 block 66 block 13.81 x 11.85 x 6.5 12.0 4012-110 904008 12 110 block 110 block 13.81 x 11.85 x 6.5 13.0 4012-QC 904002 12 66 block 66 block 13.81 x 11.85 x 6.5 13.0 4025-110 904003 25 110 block 110 block 13.81 x 11.85 x 6.5 13.5 4025-QC 904004 25 66 block 66 block 13.81 x 11.85 x 6.5 13.5 4050-110 904005 50 110 block 110 block 16.27 x 14.40 x 8.13 20.0 4050-QC 904007 50 66 block 66 block 16.27 x 14.40 x 8.13 20.0 4100-110 904006 100 110 block 110 block 16.27 x 14.40 x 8.13 23.0
