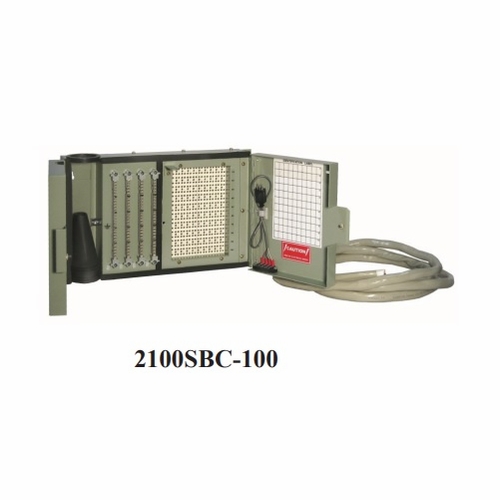

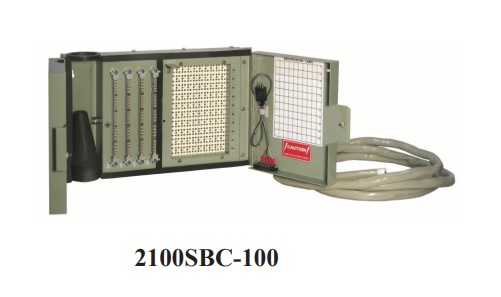

Circa 2100Sbc-100 (Unshielded) 100 Pair Bet - Bix/Stub - Cover & Splice

Circa 2100Sbc-100 (Unshielded) 100 Pair Bet - Bix/Stub - Cover & Splice New

Circa Telecom 2100Sbc-100 (Unsheilded) 100 Pair Bet - Bix/Stub - Cover & Splice New

Canadian Version Equipped With 15' 24Awg Unshielded Output Cable

Model # 2100Sbc-100 (Unshielded) Pair Count 100 Input Bix Output Cable Dimensions (H X W X D) 10.25 X 18.25 X 4.50 Inches Weight 20 Lbs.

These Heavy Gauge Steel Bix Block Building Entrance Terminals Feature The Bix (Mox) Brand Connector And External Ground Connectors That Accept 6 To 14 Gauge Ground Wire. The Bix Connector Can Terminate 22 - 26 Gauge Wire And Accepts The Qtbix22A Test Shoe. This Line Is Designed To Exceed The Requirements Set Forth In The Underwriters Laboratories' (Ul, Cul) And The Canadian Standard Association (Csa). The Units Have An Internal Fuse Link And Use Industry Standard 5-Pin Protection Modules.

Features And Benefits � 16Awg Powder Coated Steel Construction � Equipped With An Internal 26 Awg Fuse Link � External Ground Connectors Accept 6 - 14 Awg Wire � Industry Standard 5 Pin Design � Exceeds Ul497 Primary Protection Standards � Equipped With Heavy Duty Strain Relief And Encapsulated Cable ConnectorRead More
