Product Description

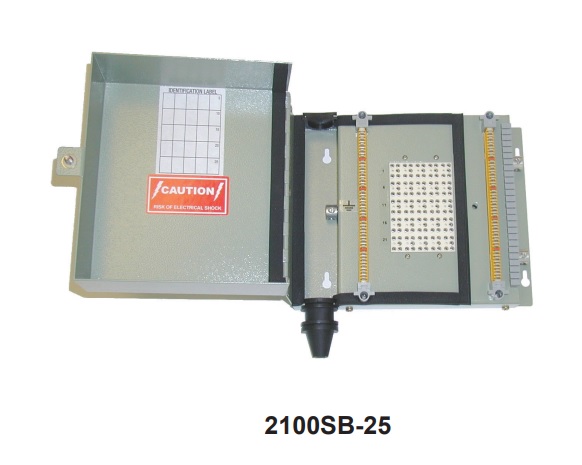

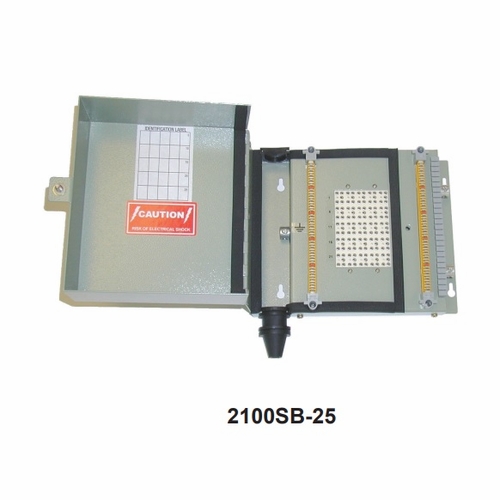

Circa 2100Sb-25 25 Pair Bet - Bix/Bix - Cover & Splice New
Circa Telecom 2100Sb-25
25 Pair Bet - Bix/Bix - Cover & Splice New
Model # 2100Sb-25
Stock Code 211011
Pair Count 25
Input Bix
Output Bix
Dimensions (H X W X D) 8.25 X 9.25 X 2.15 Inches
Weight 7 Lbs.
Not Shipping Dimensions
2100Sb-25
25 Pair - Indoor Bet - Bix/Bix - Cover & Splice Chamber
These 16 Awg Steel Building Entrance Terminals Feature The Bix Style Connector And External Ground Connectors That Accept 6 To 14 Awg Ground Wire. The Bix Connector Can Terminate 22-26 Awg Wire And Excepts The Qtbix22A Test Shoe. This Line Is Designed To Exceed The Requirements Set Forth In Underwriters Laboratories' Ul497 (Ul, Cul) And The Canadian Standards Association (Csa). The Units Have An Internal Fuse Link And Use Industry Standard 5-Pin Protection Modules Which Are Sold Separately.
Features And Benefits
� 16 Awg Powder Coated Steel Construction
� Equipped With An Internal 26 Awg Fuse Link
� External Ground Connectors Accept 6 - 14 Awg Wire
� Industry Standard 5 Pin Design
� Exceeds Ul497 Primary Protection Standards
� Stackable With Connection Grommets Included
� Bix Connector Accepts 22 - 26 Awg WireRead More
