Product Description

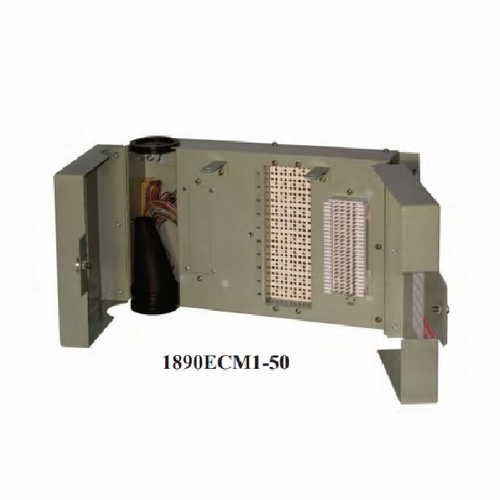

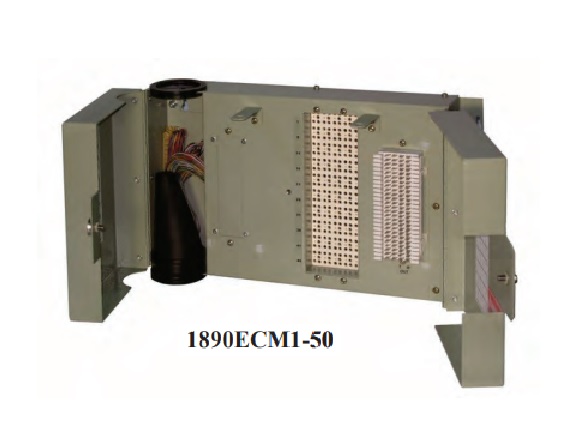

Circa 1890Ecm1-50 50Pr Ms2-In/66-Out Building Terminal New
Circa Telecom 1890Ecm1-50
50Pr Ms2-In/66-Out Building Terminal New
Model # 1890Ecm1-50
Stock Code # 124022
Pairs 50
Input Ms2
Output 66
Dimensions (H X W X D) 9.2 X 15.25 X 4.75 Inches
Weight 15 Lbs.
1890Ecm1-50
50 Pair - Indoor Bet - Ms2/66 - Cover & Splice Chamber
These 16 Awg Steel Building Entrance Terminals Feature An Easy To Install Ms2 Style Connector For Use In Specialized Osp
Installations Including Onu And Fttx And Military Command And Control Centers. Also Included Are Multiple External And
Internal Ground Lugs As Well As A Splice Chamber. Ul Approval Standard On All Terminals. Standard 5-Pin Protector Modules,
Available In Gas Tube And Solid State Versions, Are Sold Separately.
Features & Benefits
� 16 Awg Powder Coated Steel Construction
� Equipped With An Internal 26 Awg Fuse Link
� External Ground Connectors Accept 6 - 14 Awg Wire
� Industry Standard 5 Pin Design
� Exceeds Ul497 Primary Protection Standards
� Stackable With Connection Grommets Included
� Ms2 Input Accepts 22 - 28 Awg Wire/66 Output
Accepts 22- 26 Awg WireRead More
