Inno View 600 Otdr Sm 1310/1550/1625 39/38/39Db, Live Fiber Scapc/Vfl, Pm, Visualizer, Ts, Fip New
Available*
Item # 53539010
Model # VIEW 600 LIVE
$9,771.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
OTDR
Fiber Optic Products
Otdr- Power Meter- Light Source- Idenitifiers- Vfl
Fiber Otdr- Osa
INNO INSTRUMENT
Fiber Otdr Singlemode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
World S Most Accurate & Fastest Otdr
View600
Sola, Simplify The Otdr Test Process

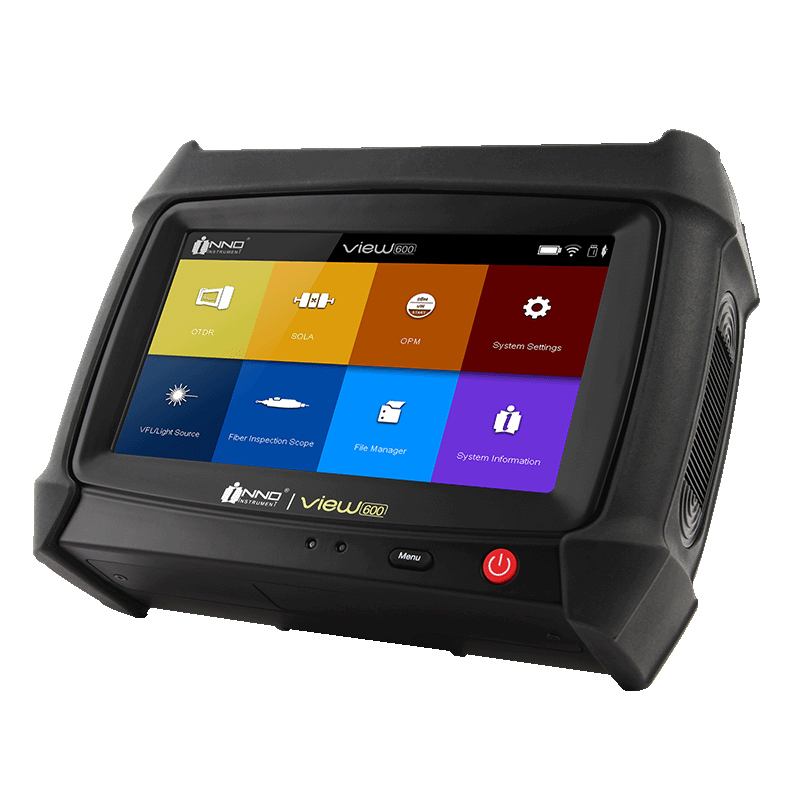

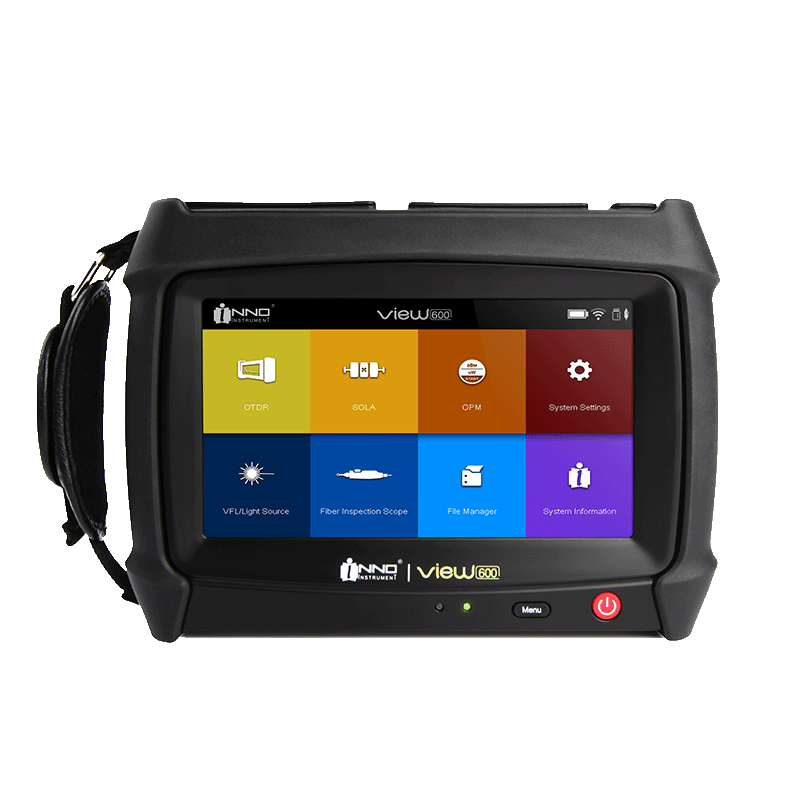

7" Touch Screen With Smart Gui
8Gb Internal Storage With Internal Sd Card & External Usb Memory
Built-In Vfl, Light Source And Opm
One Slot Modular Otdrs

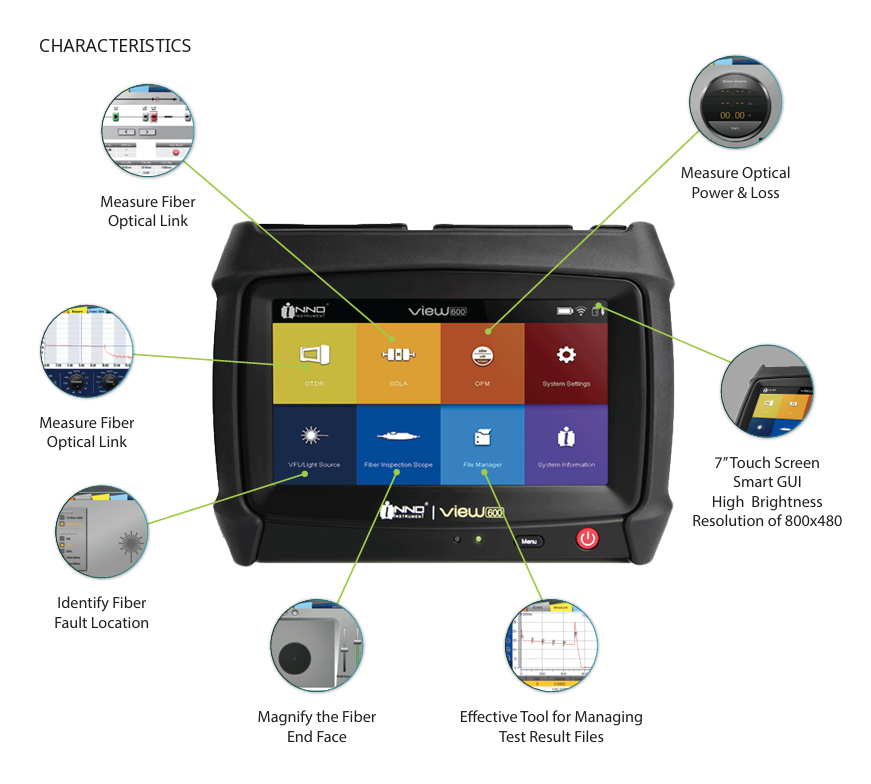

Description The View600 Otdr Is Used In The Installation And Maintenance Of Fiber Optic Cables. Features Of The View600 Otdr Include High Precision Test Capabilities, Fast Response Times, And Easy To Learn Operation. The Multi-Point Capacitive Touch Screen Allows For User-Friendly Operation. The View600 Offers Accurate And Fast Test Results And Creates A Report Automatically. The View600 Is Equipped With An Industrial Grade Cpu For Creating And Storing Test Results. All View600 Series Are One Slot Modular Otdrs.
Otdr Mode Allows For Measuring Distance, Loss, Reflectivity, Attenuation And Accumulation Loss On A Fiber Optical Link.
Sola Is An Application For The Otdr, Designed To Simplify Otdr Test Process Without The Need To Configure The Parameters Or Analysis While Parsing Multiple Complex Otdr Curves.
Vfl Allows For Finding Direct Fault Locations In Fiber Test Dead Zones Or Performing Fiber Core Calibration In Multi-Fiber Cables.
Fiber Microscope Fiber End Tester (Peripheral Required) Is Mainly Used To Test The Cleanliness And Flatness Of The Fiber End Face.
Opm Is Used For Measuring The Absolute Optical Power Meter Or Relative Optical Power Loss Through The Span Of The Optical Fiber.
Invisiable Light Source (1310 Or 1550Ns) Can Provide The Following Types Of Light, Including Cw Light, 1Khz Light, 2Khz Light, 1Khz Blink Light, 2Khz Blink Light.

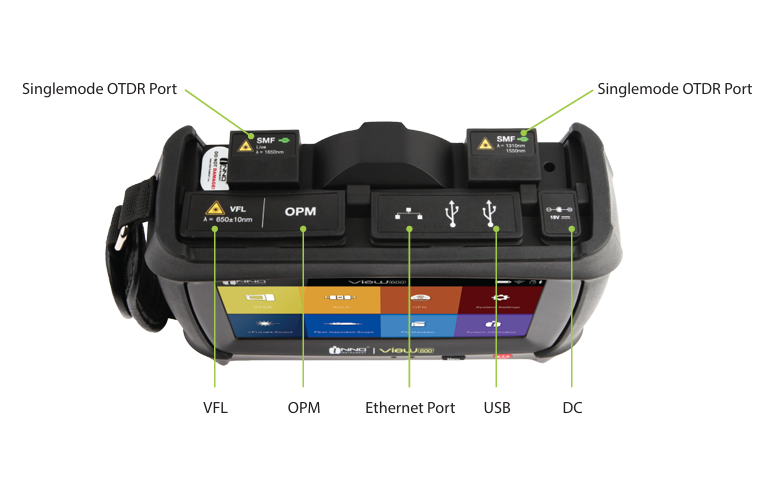

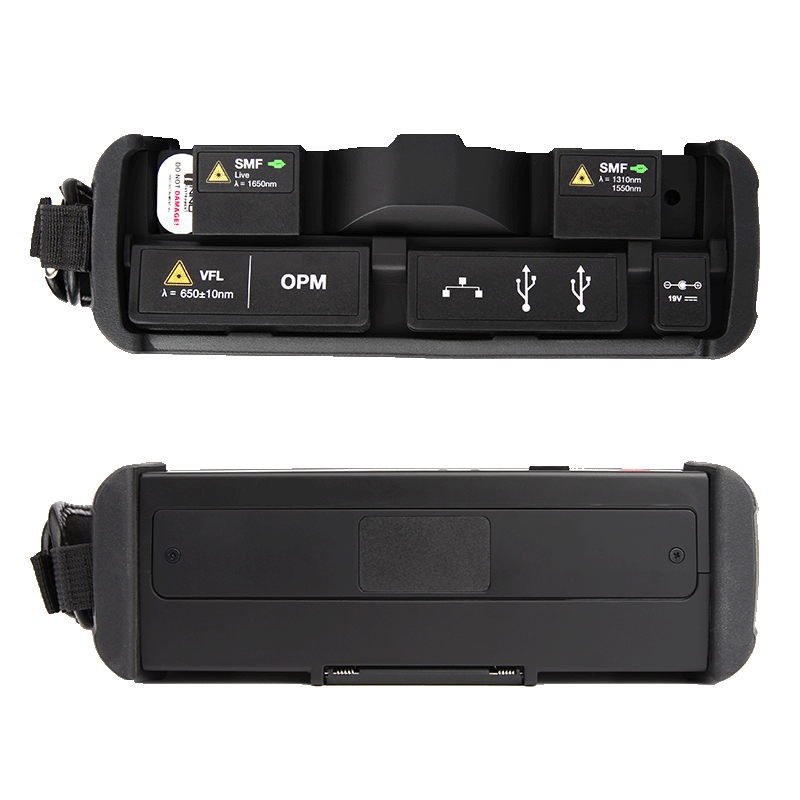

Model View600 Display 7 Inches, High Brightness Tft Lcd, Resolution Of 800~480 Distance Unit M / Km / Mile Dynamic Range 1310Nm / 1550 Nm / 1625Nm Live Port, 39Db / 38Db / 39Db Measurement Range (Km) 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360Km Measurement Range (Mile) 0.81, 1.55, 3.11, 6.22, 12.4, 24.8, 49.6, 74.6, 99.4, 223.7Mile Pulse Width 3Ns, 10Ns, 20Ns, 50Ns, 100Ns, 200Ns, 500Ns, 1?ęs, 2?ęs, 10?ęs, 20?ęs Event Dead Zone 0.5M Attenuation Dead Zone 2.5M Distance Accuracy }(1M+Distance~2.5~10-5 +Sampling Resolution) Loss Scale Linearity }0.1Db Or }0.05Db / Db Sampling Points 256,000 Points Resolution 0.04M ~ 10.24M Operating Mode Press Keys And Touch Screen Battery Capacity 5,200Mah File Format Sor(Telcordia), Bmp, Jpg, Gmd, Sola External Connection Usb 2.0 / Two Usb 2.0 / Rj 45 Lan (10/100Mbit/S) Compatible Connector Fc, Sc (Apc Or Upc) Power Supply Ac Input 100-240V, 50-60Hz / Dc Input 19V, 3.42A Vfl Module Operating Wavelength: 650Nm }10Nm, Universal Interface: 2.5Mm Light Source Operating Wavelength: 1310Nm / 1550 Nm }10Nm Optical Power Meter Wavelength Calibration: 850 / 1300 / 1310 / 1490 / 1550 / 1625Nm Measurement Time (Opm) -70 To +6Dbm Accuracy (Opm) 0.01Db Unit Display For Opm Db, Dbm, Uw

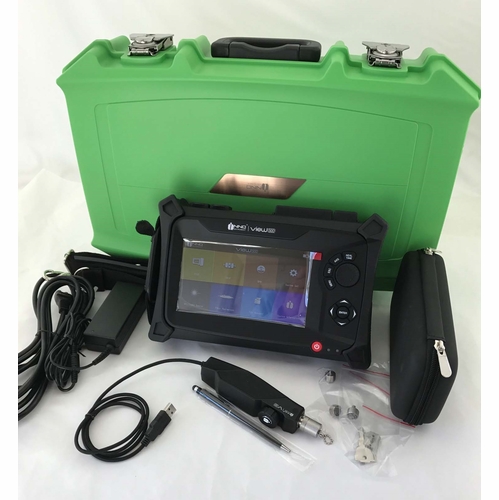

Package Otdr View 600 Power Cable Acc-25 Ac Adapter Js-180300 Pouch User Manual Touch Pen Verification Sepcifications
General Specifications Dimension 6.25H X 8.58W X 2.75D Inches (159H X 218W X 70D Mm, Excluding Rubber Bumper) Weight 3.75Pounds (1.70Kg With Battery) Operating Conditions -10~50, 0%~45% (No Moisture Condensation Storage Conditions -20~60, 0%~95% (No Moisture Condensation)
23X15X13" 15Lb
