Gmp 70280 Kit Pole 4Way W/6Way Plg 46.5" New

Gmp 70280 Kit Pole 4Way W/6Way Plg 46.5" New

Available*
Item # 35070260
Model # 70280
$882.90
Peac Financing financing available. Learn More
Qty:

* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)

  • Product Description
  • You Might Also like
  • Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
POLE LIGHT
Tools
Line Construction- Placing
Pole Trailer Light Kits
GMP GENERAL MACHINE PRODUCTS
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

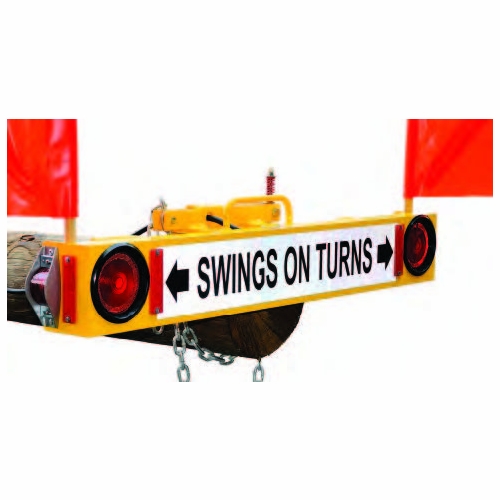

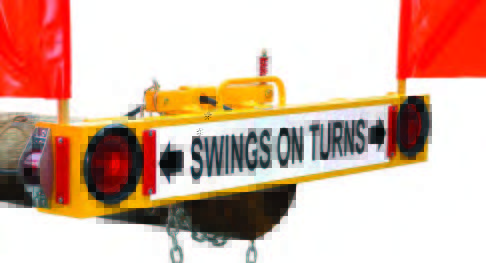

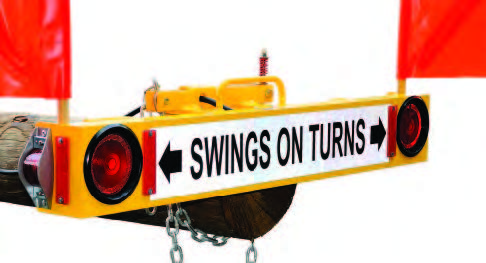

General Machine Products 70280 Kit Pole 4Way W/6Way Plg 46.5" New Thanks To General Machine Products 'S Pole Trailer Light Kits You Can Transport Utility Poles With Greater Visibility While Meeting Dot Requirements And Only Adding Minimal Width To Your Trailer.

In Addition To Their Compact Design And Secure Attachments, The Kits Are Also Loaded With Well Designed Features For Maximum Visibility

Click On Image Above For A Larger View Of The Pole Trailer Light Kits The Frame Is Made From An Aluminum Extruded Weldment With A Durable Bright Yellow Polyester Powder Coating

Dot Approved Lights And Reflectors Are Mounted On The Back And Both Sides

The Kit Uses A Reflexite Label With 3 In. (76 Mm) High Lettering And A Standard Legend, ("Swings On Turns" With Directional Arrows)

Shock Mounts Provide Greater Bulb Life And Simplify Bulb Replacement

The Unit Comes With A 40 Ft. (12.2 M) 18 Gauge S.O. Trailer Cord With A Heavy-Duty 4-Way Or 6-Way Trailer Plug For Plugging Into Either The Trailer Or The Vehicle Pulling The Trailer. This Gives Motorists The Added Information Of Turn Signals And Brake Lights; Not Just Blinking Lights. Environmental Concerns Are Also Reduced As Our Kits Don'T Use Disposable Batteries

The Width Of The Unit Is Minimized With Up-Right Flags (Included) And Cordage Storage Arms Located Within The Outer Dimensions Of The Frame For Storing Excess Cordage

The Flag Holders Are Oversized To Allow For Swelling Of The Wooden Staff When Wet. Each Holder Includes A Spring Retainer To Keep The Flag From Bouncing Out During Transportation

Positive Attachment To The Pole Is Created With An Over Center Chain Binder That Uses 5 Ft. (152 Cm) Of Chain And Hardened Steel Spikes That Bury In The Pole When The Binder Is Tightened

Two Widths Are Available For Easier Storage When Not Used

Sockets For Both The 4-Way And 6-Way Plugs Can Be Ordered Separately

Ordering Information P/N Description Weight

--------------------------------------------------------------------------------

70274 46 In. (117 Cm) Wide W/4-Way Plug 26 Lbs. (12 Kgs)

70276 46 In. (117 Cm) Wide W/6-Way Plug 26 Lbs. (12 Kgs)

70277 24 In. (61 Cm) Wide W/4-Way Plug 14 Lbs. (6.5 Kgs)

70278 24 In. (61 Cm) Wide W/6-Way Plug 14 Lbs. (6.5 Kgs)

71567 46 In. (117 Cm) Wide W/4-Way Plug For Wood Or Non-Wood Poles 26 Lbs. (12 Kgs)

71569 46 In. (117 Cm) Wide W/6-Way Plug For Wood Or Non-Wood Poles 26 Lbs. (12 Kgs)

26006 4-Way Socket 2 Oz. (57 Gm)

26007 6-Way Socket 2 Oz. (57 Gm)

Thanks To General Machine Products 'S Pole Trailer Light Kits You Can Transport Utility Poles With Greater Visibility While Meeting Dot Requirements And Only Adding Minimal Width To Your Trailer.

In Addition To Their Compact Design And Secure Attachments, The Kits Are Also Loaded With Well Designed Features For Maximum Visibility

Click On Image Above For A Larger View Of The Pole Trailer Light Kits The Frame Is Made From An Aluminum Extruded Weldment With A Durable Bright Yellow Polyester Powder Coating

Dot Approved Lights And Reflectors Are Mounted On The Back And Both Sides

The Kit Uses A Reflexite Label With 3 In. (76 Mm) High Lettering And A Standard Legend, ("Swings On Turns" With Directional Arrows)

Shock Mounts Provide Greater Bulb Life And Simplify Bulb Replacement

The Unit Comes With A 40 Ft. (12.2 M) 18 Gauge S.O. Trailer Cord With A Heavy-Duty 4-Way Or 6-Way Trailer Plug For Plugging Into Either The Trailer Or The Vehicle Pulling The Trailer. This Gives Motorists The Added Information Of Turn Signals And Brake Lights; Not Just Blinking Lights. Environmental Concerns Are Also Reduced As Our Kits Don'T Use Disposable Batteries

The Width Of The Unit Is Minimized With Up-Right Flags (Included) And Cordage Storage Arms Located Within The Outer Dimensions Of The Frame For Storing Excess Cordage

The Flag Holders Are Oversized To Allow For Swelling Of The Wooden Staff When Wet. Each Holder Includes A Spring Retainer To Keep The Flag From Bouncing Out During Transportation

Positive Attachment To The Pole Is Created With An Over Center Chain Binder That Uses 5 Ft. (152 Cm) Of Chain And Hardened Steel Spikes That Bury In The Pole When The Binder Is Tightened

Two Widths Are Available For Easier Storage When Not Used

Sockets For Both The 4-Way And 6-Way Plugs Can Be Ordered Separately

Ordering Information P/N Description Weight

--------------------------------------------------------------------------------

70274 46 In. (117 Cm) Wide W/4-Way Plug 26 Lbs. (12 Kgs)

70276 46 In. (117 Cm) Wide W/6-Way Plug 26 Lbs. (12 Kgs)

70277 24 In. (61 Cm) Wide W/4-Way Plug 14 Lbs. (6.5 Kgs)

70278 24 In. (61 Cm) Wide W/6-Way Plug 14 Lbs. (6.5 Kgs)

71567 46 In. (117 Cm) Wide W/4-Way Plug For Wood Or Non-Wood Poles 26 Lbs. (12 Kgs)

71569 46 In. (117 Cm) Wide W/6-Way Plug For Wood Or Non-Wood Poles 26 Lbs. (12 Kgs)

26006 4-Way Socket 2 Oz. (57 Gm)

26007 6-Way Socket 2 Oz. (57 Gm)
